ED5FVGXWS05 07 – FREEZER DOOR PARTS

ED5FVGXWS05 07 – FREEZER DOOR PARTS

Written by

in

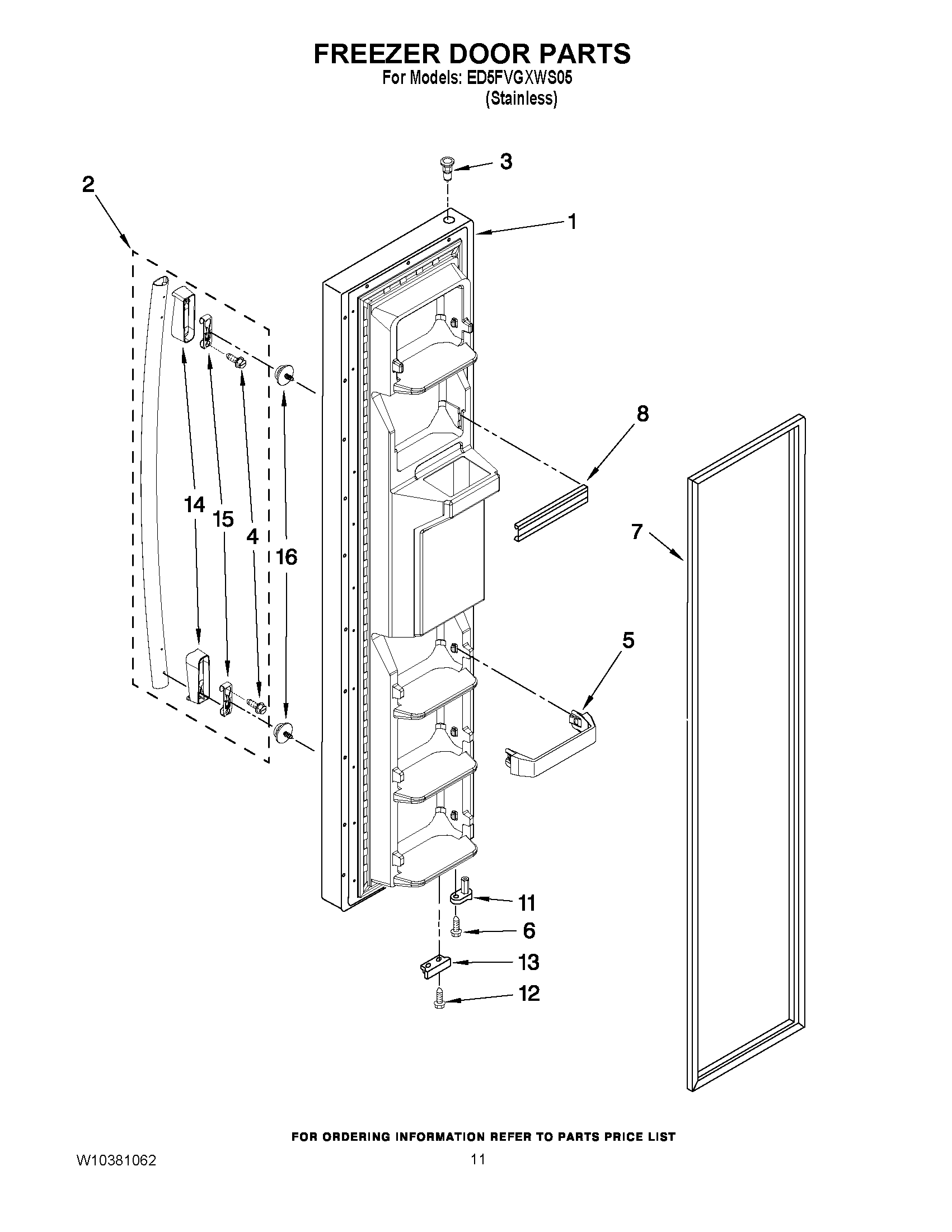

ED5FVGXWS05 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2W10273555 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WP8533988 Whirlpool Screw Fastener
6WP3400012 Whirlpool Refrigerator Screw
72159082 Whirlpool Freezer Door Gasket Black
8WP2309718 Whirlpool Refrigerator Door Trim
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Black)
14END CAP
15WP2255411 Whirlpool Refrigerator Clip
16WPW10288153 Whirlpool Refrigerator Screw
