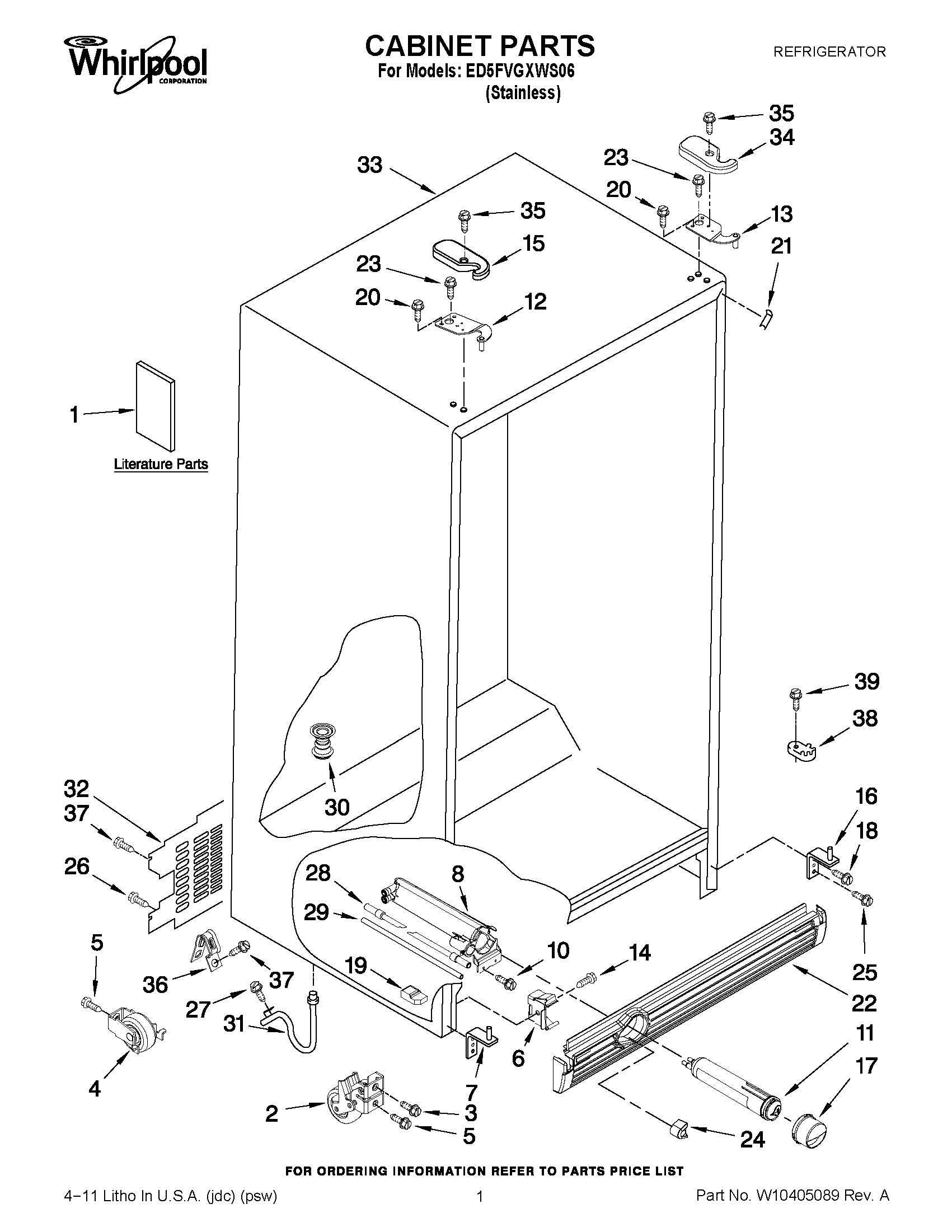

ED5FVGXWS06 01 – CABINET PARTS

ED5FVGXWS06 01 – CABINET PARTS

Written by

in

ED5FVGXWS06 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1ENERGY GUIDE
1Modular Icemaker Service Sheet
1USE & CARE GUIDE
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7ADJUSTABLE HINGE CAM ASSY
8WPW10121138 Whirlpool Refrigerator Water Filter Housing
10WP489500 Whirlpool Refrigerator Screw
11FILTER 3-SINGLE TEAL
12HINGE, TOP (FC)
13W10242649 Whirlpool Refrigerator Door Hinge
14WP489128 Whirlpool Refrigerator Screw
15WP2203407B Whirlpool Refrigerator Cover
16W10138965 Whirlpool Refrigerator Door Hinge
17WP2260518B Whirlpool Water Filter Cap
18WP489497 Whirlpool Screw
19Block, Housing Support
20W10853301 Whirlpool Refrigerator Screw
21Filler, Wrapper (Black)
22WPW10311033 Whirlpool Refrigerator Grille
24WP2260503B Whirlpool Refrigerator Button
25W10856122 Whirlpool Refrigerator Screw
26WP488488 Whirlpool Refrigerator Screw
27WP489464 Whirlpool Refrigerator Screw
28TUBE, FILTER INLET
29WPW10350006 Whirlpool Refrigerator Water Tube
30W11566763 Whirlpool Fitting
31W11512417 Whirlpool Drain Connector
32WP2188755 Whirlpool Rear Panel
33CABINET (NOT A SERVICEABLE PART)
34WP2203408B Whirlpool Refrigerator Cover
35WP8281227 Whirlpool Screw
36549193 Whirlpool Refrigerator Power Clamp
38WPW10329686 Whirlpool Door Cam Black
39WP489483 Whirlpool Screw
