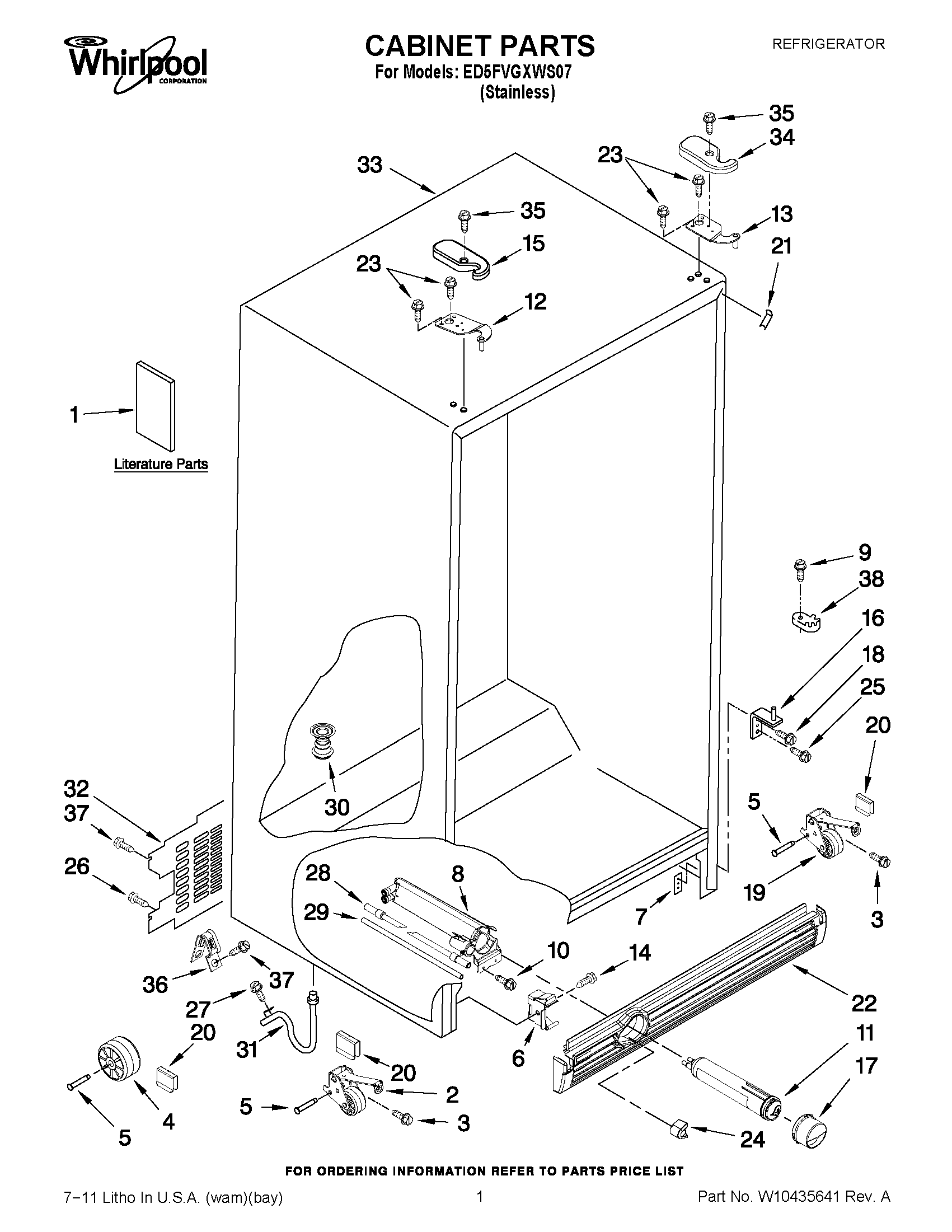

ED5FVGXWS07 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Service & Wiring Sheet
1USE & CARE GUIDE
1Modular Icemaker Service Sheet
1INSTRUCTION SHEET (DOOR REMOVAL)
2WPW10304660 Whirlpool Wheel Assembly
3WP489427 Whirlpool Refrigerator Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP2304249 Whirlpool Refrigerator Plate
8WPW10121138 Whirlpool Refrigerator Water Filter Housing
9WP489483 Whirlpool Screw
10WP489500 Whirlpool Refrigerator Screw
11FILTER 3-SINGLE TEAL
12HINGE TOP (FC)
13HINGE TOP (RC)
14WP489128 Whirlpool Refrigerator Screw
15WP2203407B Whirlpool Refrigerator Cover
16HINGE BOTTOM
17WP2260518B Whirlpool Water Filter Cap
18WP489497 Whirlpool Screw
19WPW10304659 Whirlpool Wheel Assembly
20WP2174706 Whirlpool Refrigerator Pin Hitch
21W11252732 Whirlpool Refrigerator Filler
22WPW10311033 Whirlpool Refrigerator Grille
24WP2260503B Whirlpool Refrigerator Button
25W10856122 Whirlpool Refrigerator Screw
26WP488488 Whirlpool Refrigerator Screw
27WP489464 Whirlpool Refrigerator Screw
28TUBE, FILTER INLET
29WPW10350006 Whirlpool Refrigerator Water Tube
30W11566763 Whirlpool Fitting
31W11512417 Whirlpool Drain Connector
32WP2188755 Whirlpool Rear Panel
33CABINET (NOT A SERVICEABLE PART)
34WP2203408B Whirlpool Refrigerator Cover
35WP8281227 Whirlpool Screw
36549193 Whirlpool Refrigerator Power Clamp
38WPW10329686 Whirlpool Door Cam Black
