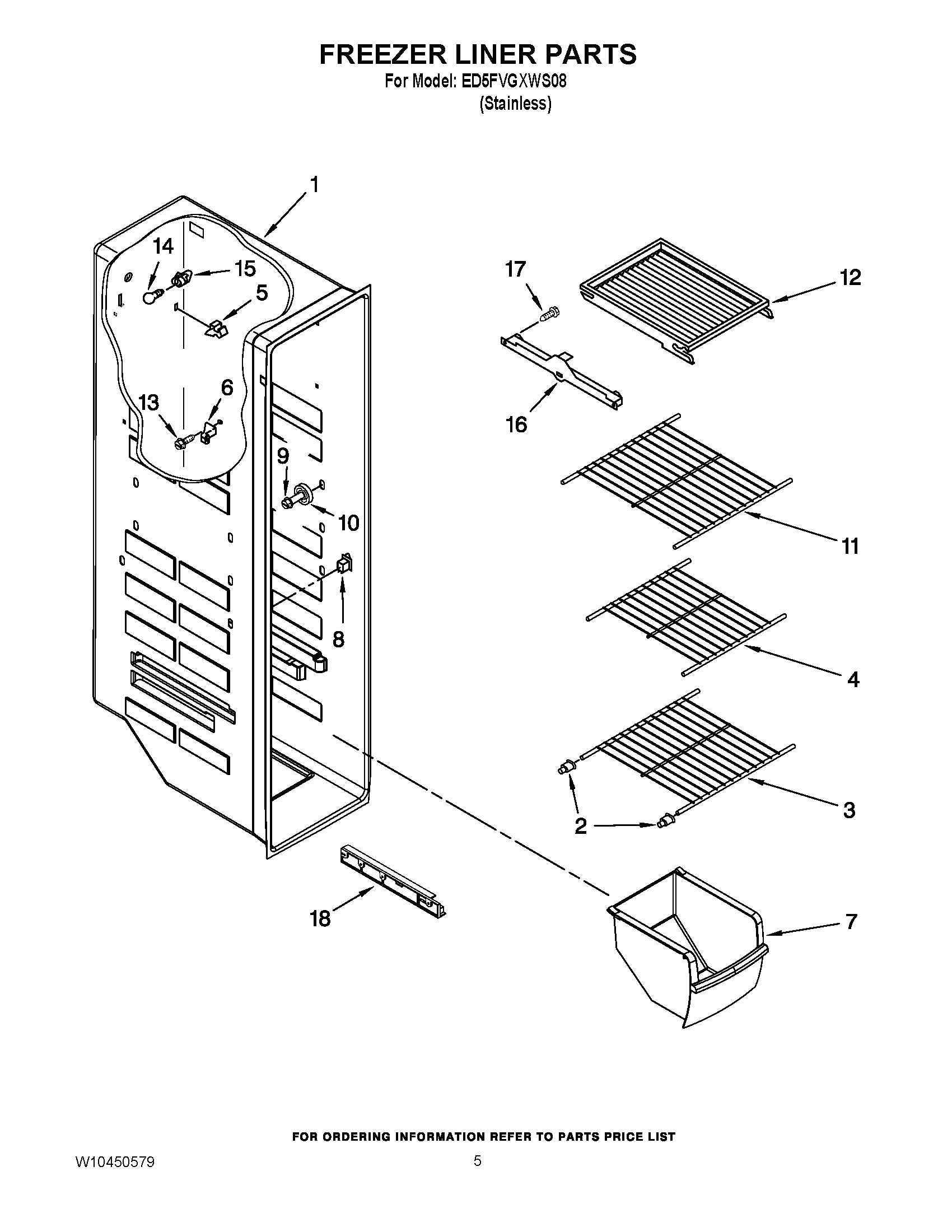

ED5FVGXWS08 04 – FREEZER LINER PARTS

ED5FVGXWS08 04 – FREEZER LINER PARTS

Written by

in

ED5FVGXWS08 04 – FREEZER LINER PARTS

Products

PositionProduct
2WPW10130299 Whirlpool Refrigerator Cup
3WPW10318947 Whirlpool Wire Shelf
52215823 Whirlpool Refrigerator Clip
6Stud, Rear
7WP2182971 Whirlpool Refrigerator Freezer Bin
8W11457217 Whirlpool Refrigerator Rocker Switch Combination
9WPW10191952 Whirlpool Refrigerator Screw
10W11527119 Whirlpool Refrigerator Shelf Stud
11SHELF, WIRE
12Shelf, Top Compartment
13W10142289 Whirlpool Air Conditioner Screw
14W11679940 Whirlpool Refrigerator Light Bulb Assembly
154387478 Whirlpool Refrigerator Light Socket
16W10845585 Whirlpool Refrigerator Track
16W10845583 Whirlpool Refrigerator Track
17718257 Whirlpool Dishwasher Screw
18CABINET (NOT A SERVICEABLE PART)
