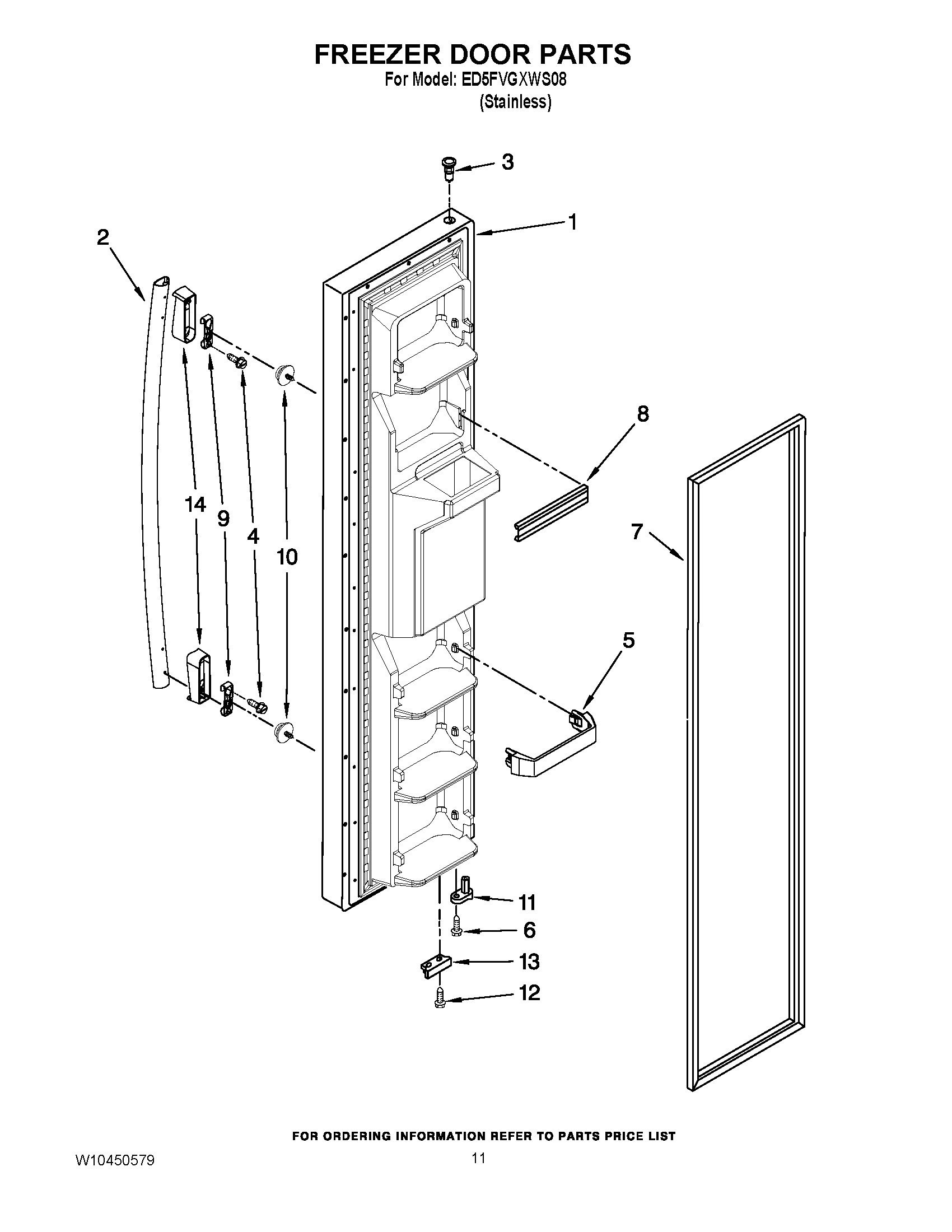

ED5FVGXWS08 07 – FREEZER DOOR PARTS

ED5FVGXWS08 07 – FREEZER DOOR PARTS

Written by

in

ED5FVGXWS08 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2WPW10257118K Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W10267047 Whirlpool Screw
5WP2309718 Whirlpool Refrigerator Door Trim
6WP3400012 Whirlpool Refrigerator Screw
72159083 Whirlpool Gasket Door
8WPW10307490 Whirlpool Door Trim Assembly
9WP2255411 Whirlpool Refrigerator Clip
10WPW10288153 Whirlpool Refrigerator Screw
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13BRACKET, DOOR STOP
14End Cap (Apollo Grey)
