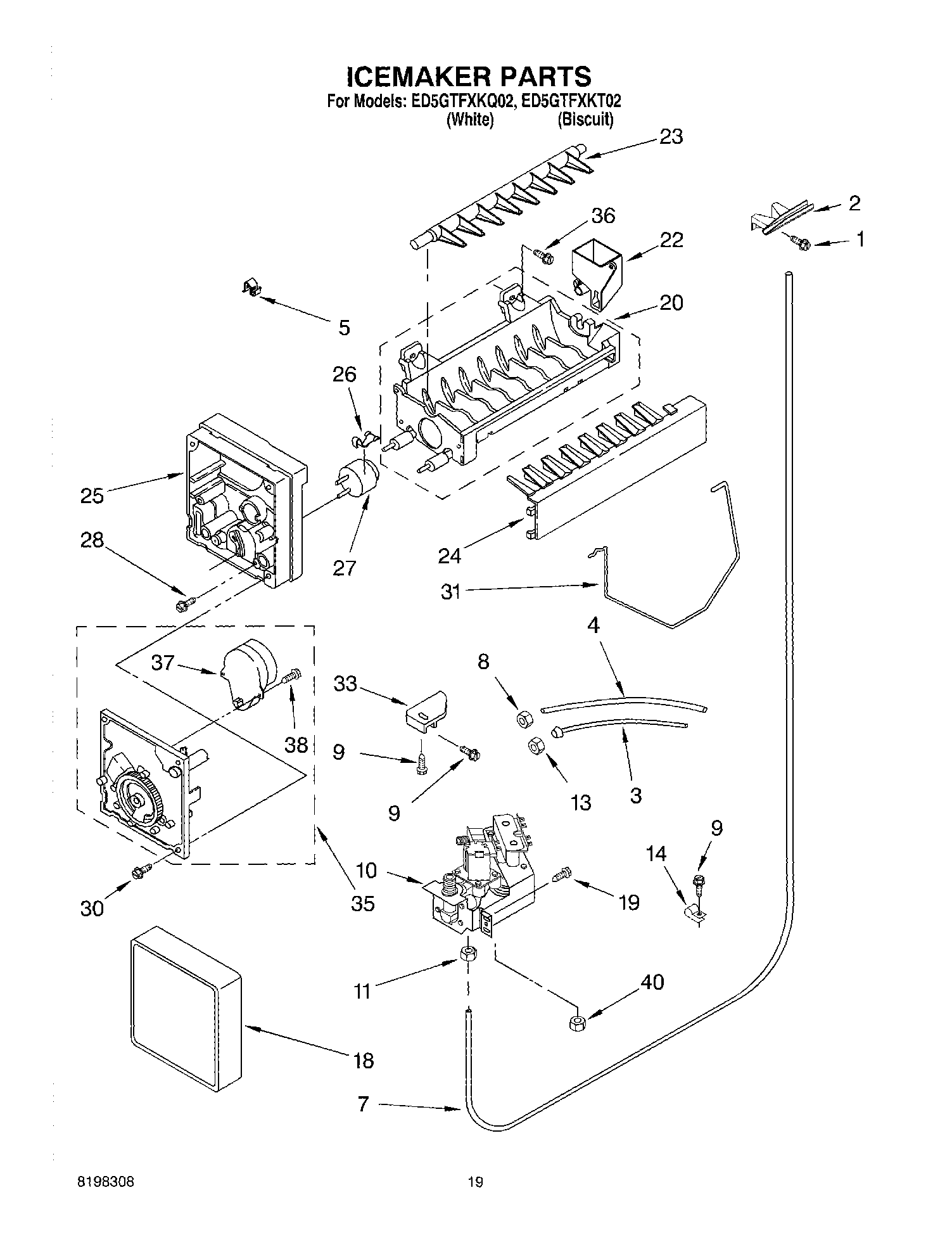

ED5GTFXKT02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

ED5GTFXKT02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

ED5GTFXKT02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 876029
212643 Whirlpool Refrigerator Permagum Sealer
WPL 799833
Enamel, Black (1 Qt. Uncut)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI34858A6
WP505587 Whirlpool Refrigerator Sealer
WPL ARI34857A8
WPL ARI34856A8
WPL ARI34855A2
4210463RW Whirlpool Refrigerator Coil Brush
WPW10312300 Whirlpool Refrigerator Ice Container
WPL ARI34859A4
TAPE, VINYL (3/4 X 108“)
2W11505385 Whirlpool Refrigerator Chute
3Water Tube (Outlet)
4Water Tube (Inlet)
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
8Compression Nut (Inlet)
9WP489478 Whirlpool Refrigerator Screw
10Valve, Solenoid
11WP627018 Whirlpool Refrigerator Nut
13Nut, Compression
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
36WP488163 Whirlpool Refrigerator Screw
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
40Nut, Compression
1004317943 Whirlpool Refrigerator Ice Maker Assembly
