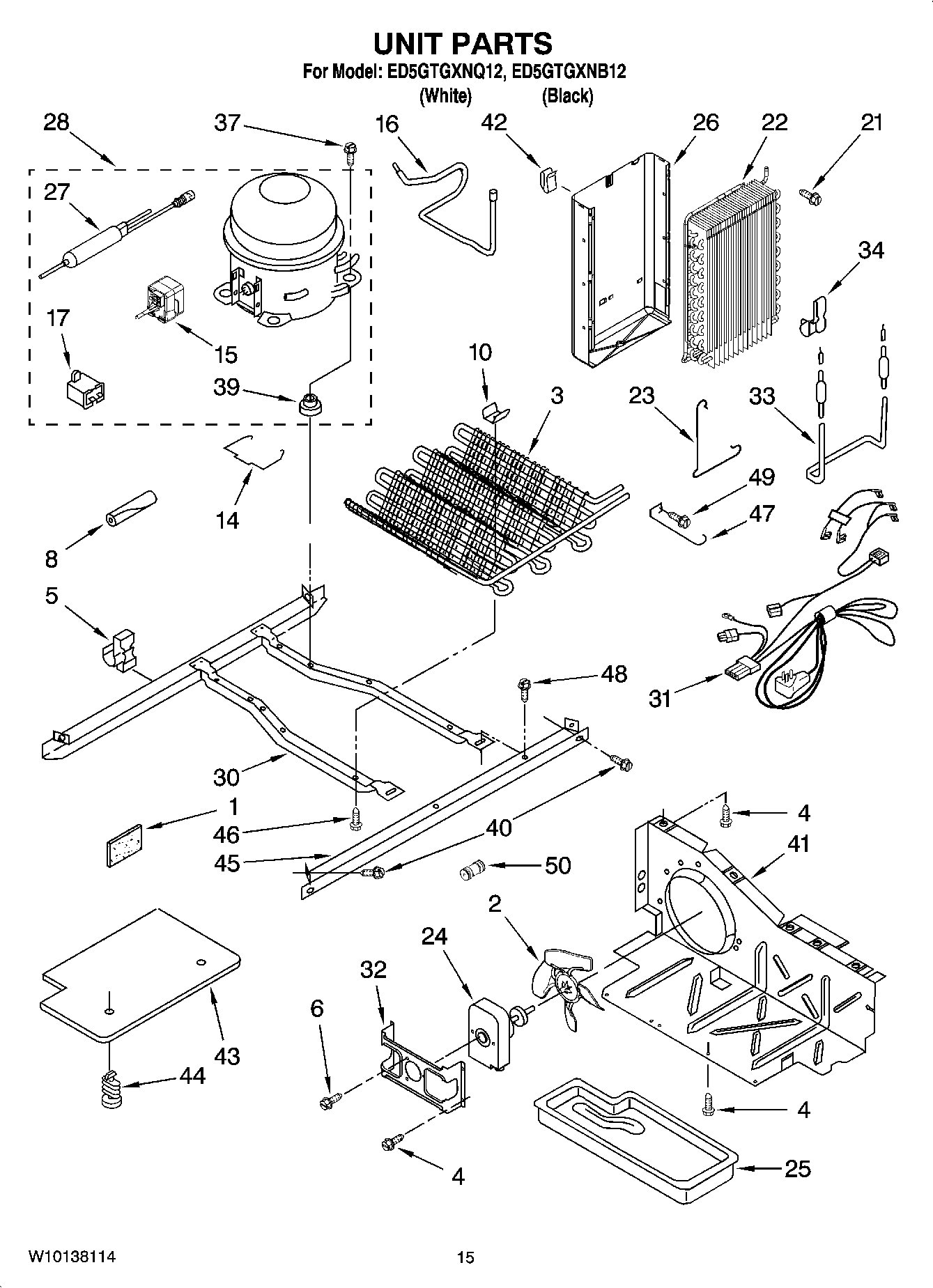

ED5GTGXNB12 09 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
8	SLEEVE
10	W10683556 Whirlpool Refrigerator Clip
14	2212996 Whirlpool Refrigerator Retainer
15	WP2313162 Whirlpool Refrigerator Start Device
16	2313230 Whirlpool Tube
17	WP65889-4 Whirlpool Refrigerator Capacitor
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11,12,13,14,15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
30	2304904 Whirlpool Frame Assembly
31	Unit, Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
37	SCREW
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
45	2305374 Whirlpool Refrigerator Unit Rail
46	W11544659 Whirlpool Refrigerator Screw
47	Guard, Fan
48	WP489427 Whirlpool Refrigerator Screw
49	WPW10141625 Whirlpool Refrigerator Screw Assembly
50	978030 Whirlpool Refrigerator Valve
50	Following Parts Not Illustrated and Optional Parts Not Included
50	978026 Whirlpool Refrigerator Primary Valve
50	VALVE, ACCESS (5/8“)
50	VALVE, ACCESS (1/2“)
50	WP978025 Whirlpool Refrigerator Valve
50	876764 Whirlpool Refrigerator Primary Valve
50	978027 Whirlpool Refrigerator Primary Valve
50	WP4373559 Whirlpool Fitting
50	REFRIGERANT CHARGE 5.0 oz. (R-134A)
