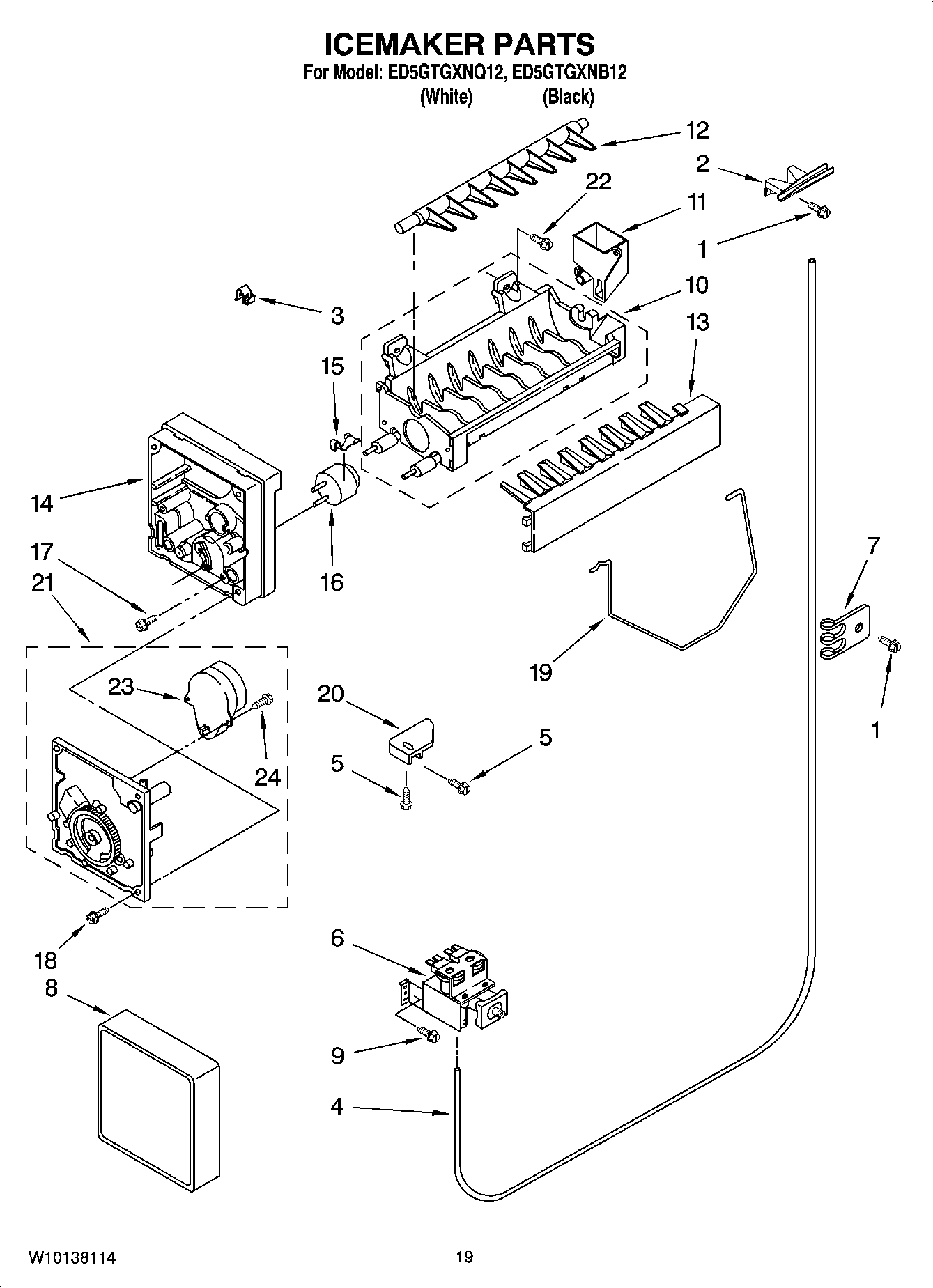

ED5GTGXNB12 12 – ICEMAKER PARTS, OPTIONAL PARTS

ED5GTGXNB12 12 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

ED5GTGXNB12 12 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI34873A5
	TAPE, VINYL (3/4 X 108“)
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	833938 Whirlpool Refrigerator Terminal
	606755 Whirlpool Refrigerator Bag
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799833
	WPL ARI34872A9
	WPL ARI34871A3
	WPL ARI34870A6
	WPL ARI34869A8
	4210463RW Whirlpool Refrigerator Coil Brush
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	WPL 876029
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Enamel, Black (1 Qt. Uncut)
	350930 Whirlpool White Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI34874A3
2	W11505385 Whirlpool Refrigerator Chute
3	WP628379 Whirlpool Refrigerator Clip
4	W10823511 Whirlpool Refrigerator Water Tube
5	WP489478 Whirlpool Refrigerator Screw
6	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7	WP488366 Whirlpool Refrigerator Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11	W10122561 Whirlpool Refrigerator Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WP2182124 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP627985 Whirlpool Icemaker Cycling Thermostat
17	8533917 Whirlpool Refrigerator Screw
18	WP681249 Whirlpool Screw Assembly
19	W11342242 Whirlpool Refrigerator Ice Level Arm
20	W11500948 Whirlpool Refrigerator Bracket
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	WP488163 Whirlpool Refrigerator Screw
23	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
24	489136 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
