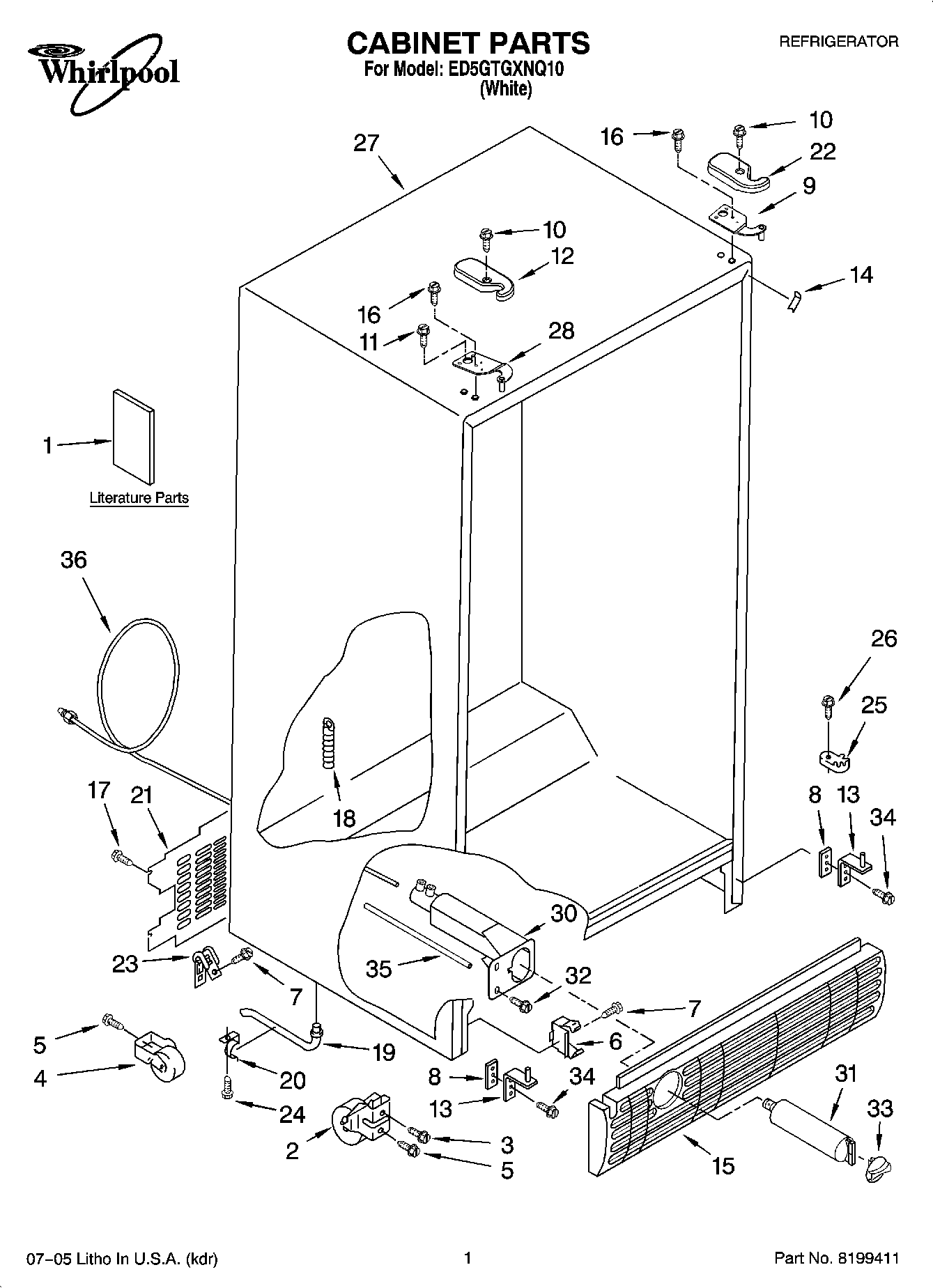

ED5GTGXNQ10 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	WP489128 Whirlpool Refrigerator Screw
12	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (White)
15	W10803964 Whirlpool Grille Assembly
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	WP2203408W Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet (Not A Serviceable Part)
28	WP2203770 Whirlpool Refrigerator Door Hinge
30	WP2186443 Whirlpool Water Filter Housing
31	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
32	WP489500 Whirlpool Refrigerator Screw
33	WP2186494W Whirlpool Water Filter Cap
34	WP489497 Whirlpool Screw
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
