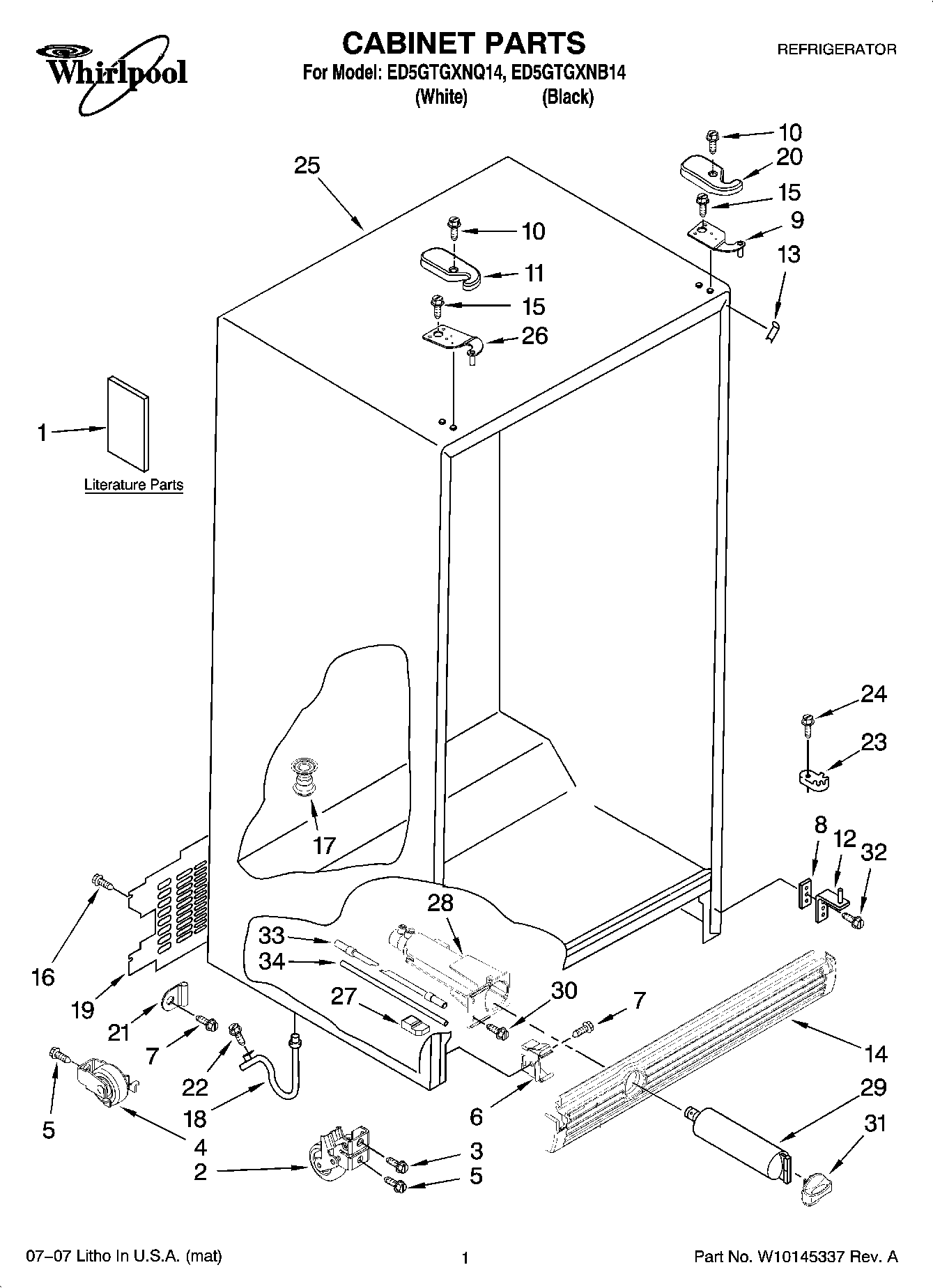

ED5GTGXNQ14 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Use & Care Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	WP2203407B Whirlpool Refrigerator Cover
11	WP2203407W Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
14	W10803964 Whirlpool Grille Assembly
16	WP489464 Whirlpool Refrigerator Screw
17	W11566763 Whirlpool Fitting
18	Extension Tube
19	WP2188755 Whirlpool Rear Panel
20	WP2203408B Whirlpool Refrigerator Cover
20	WP2203408W Whirlpool Refrigerator Cover
21	549193 Whirlpool Refrigerator Power Clamp
23	WPW10329686 Whirlpool Door Cam Black
24	WP489483 Whirlpool Screw
25	Cabinet, (Not A Serviceable Part)
26	WP2203770 Whirlpool Refrigerator Door Hinge
27	Block, Housing Support
28	WP2186443 Whirlpool Water Filter Housing
29	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30	WP489500 Whirlpool Refrigerator Screw
31	WP2186494B Whirlpool Refrigerator Filter Cap
31	WP2186494W Whirlpool Water Filter Cap
32	WP489497 Whirlpool Screw
33	WPW10350006 Whirlpool Refrigerator Water Tube
34	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
