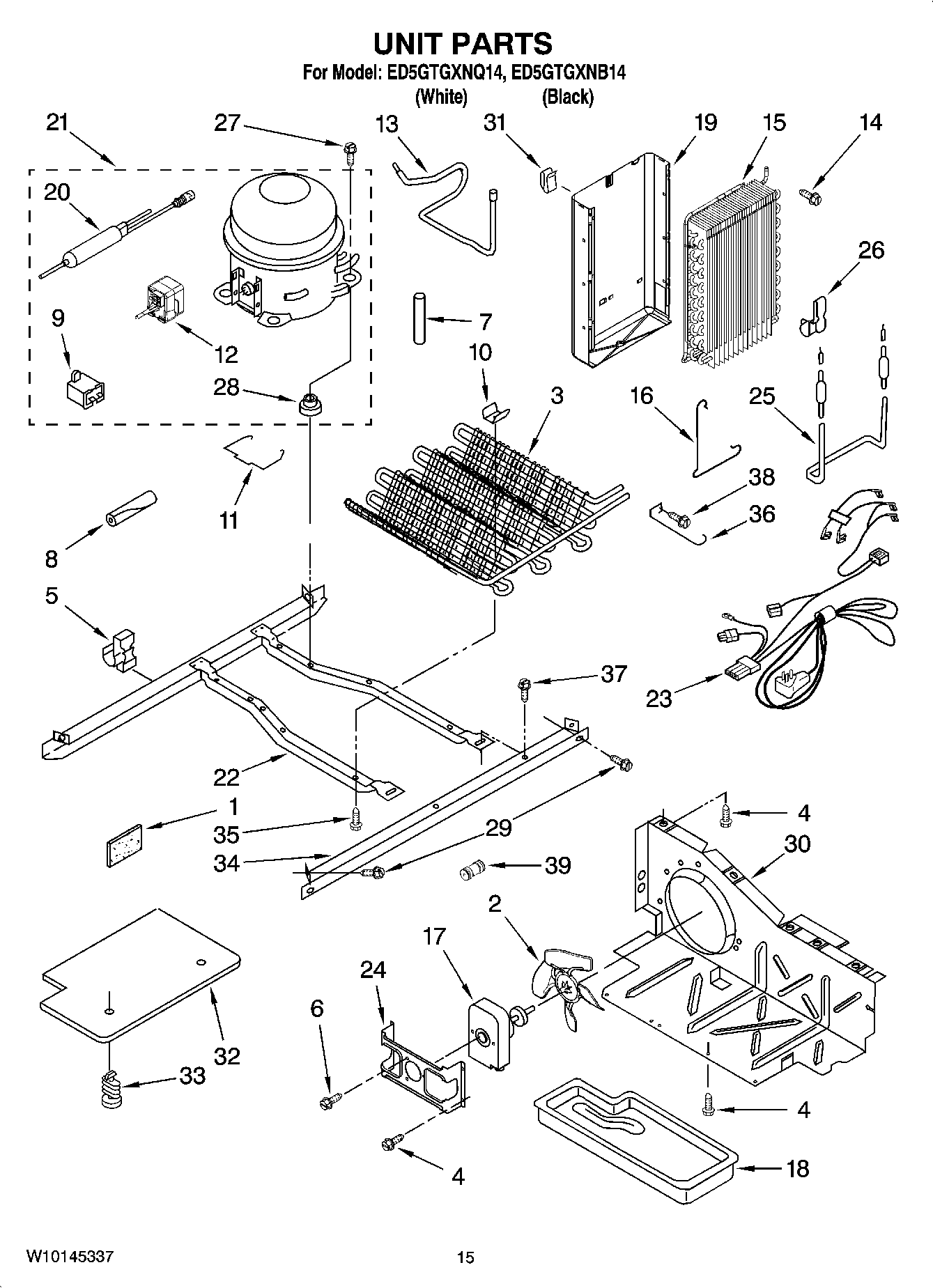

ED5GTGXNQ14 09 – UNIT PARTS

ED5GTGXNQ14 09 – UNIT PARTS

Written by

in

ED5GTGXNQ14 09 – UNIT PARTS

Products

PositionProduct
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6WP8533993 Whirlpool Refrigerator Screw
7Bushing, Compressor
8SLEEVE
9WP65889-4 Whirlpool Refrigerator Capacitor
10W10683556 Whirlpool Refrigerator Clip
112212996 Whirlpool Refrigerator Retainer
12WP2313162 Whirlpool Refrigerator Start Device
132313230 Whirlpool Tube
14WP489478 Whirlpool Refrigerator Screw
15WP2188823 Whirlpool Refrigerator Evaporator
16Clamp
17W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
18WPW10614158 Whirlpool Refrigerator Evaporator Tray
19Heat Shield
20WPW10143759 Whirlpool Dryer Filter
20W10843121 Whirlpool Refrigerator Tube
21Compressor (Includes Items 11,12,13,14,15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
222304904 Whirlpool Frame Assembly
23Unit, Harness
24WP2181929 Whirlpool Refrigerator Bracket
25WP2323198 Whirlpool Refrigerator Heater
26W11623163 Whirlpool Refrigerator Clip
28876811 Whirlpool Grommet
29489340 Whirlpool Refrigerator Screw
30W10896764 Whirlpool Refrigerator Air Baffle
31Clip, Heat Shield
32Unit Cover, Bottom
33489396 Whirlpool Refrigerator Clip
342305374 Whirlpool Refrigerator Unit Rail
35W11544659 Whirlpool Refrigerator Screw
36Guard, Fan
37WP489427 Whirlpool Refrigerator Screw
38WPW10141625 Whirlpool Refrigerator Screw Assembly
39978030 Whirlpool Refrigerator Valve
39Following Parts Not Illustrated and Optional Parts Not Included
39VALVE, ACCESS (5/8“)
39876764 Whirlpool Refrigerator Primary Valve
39WPW10334458 Whirlpool Refrigerator Connector
39VALVE, ACCESS (1/2“)
39WP978025 Whirlpool Refrigerator Valve
39978026 Whirlpool Refrigerator Primary Valve
39978027 Whirlpool Refrigerator Primary Valve
39REFRIGERANT CHARGE 5.0 oz. (R-134A)
