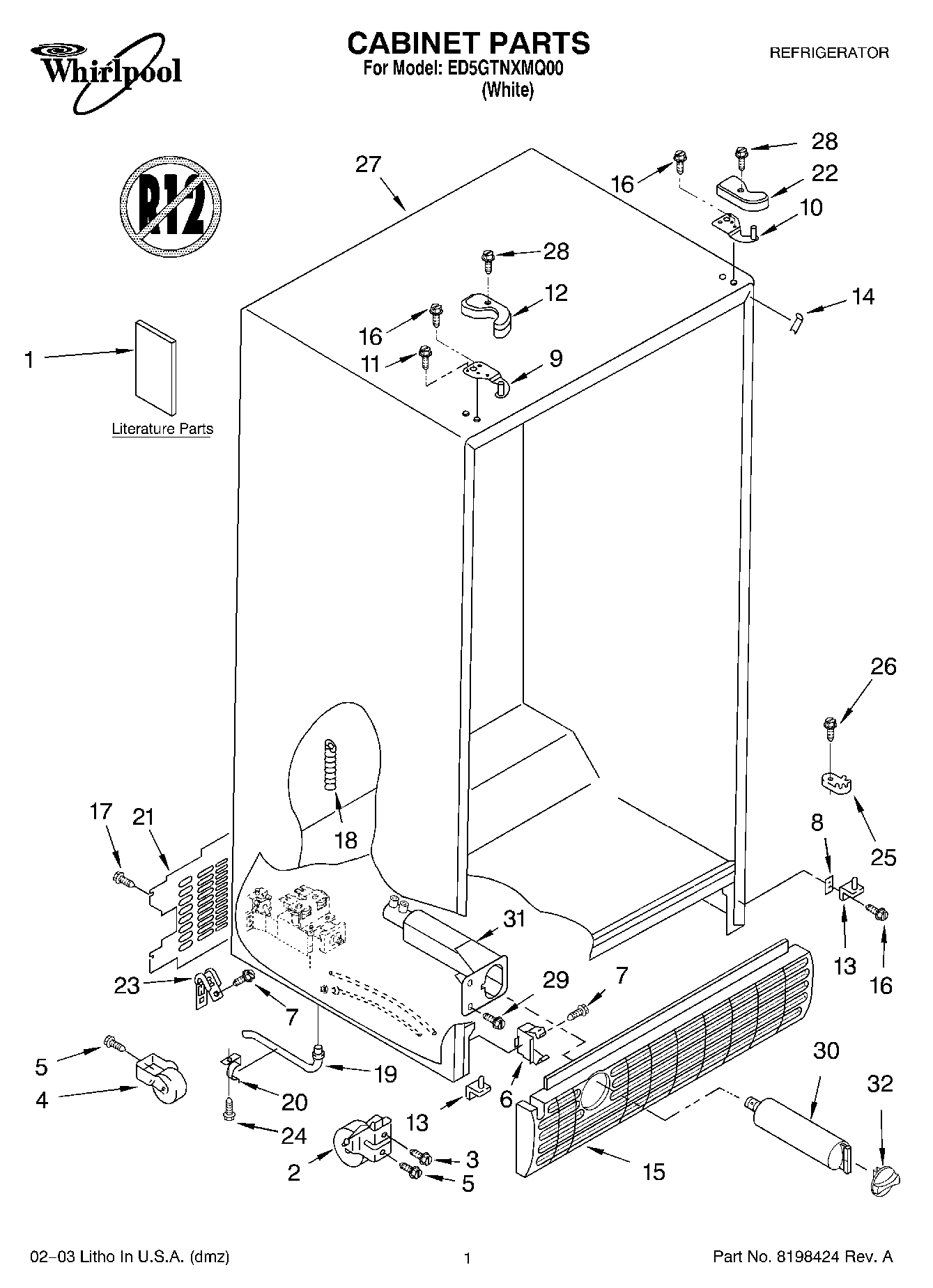

ED5GTNXMQ00 01 – CABINET PARTS
Written by
in
ED5GTNXMQ00 01 – CABINET PARTS
Products
Position
Product
LITERATURE PARTS
1
Modular Icemaker Service Sheet
1
Literature Parts (Energy Guide)
1
LITERATURE PARTS (Use & Care Guide)
1
LITERATURE PARTS (Service & Wiring Sheet)
2
Front Roller (2)
3
W10850698 Whirlpool Refrigerator Screw
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
WP489427 Whirlpool Refrigerator Screw
6
WP2155013 Whirlpool Refrigerator Clip
7
WP489478 Whirlpool Refrigerator Screw
8
WP2181911 Whirlpool Refrigerator Shim
9
WP2203770 Whirlpool Refrigerator Door Hinge
10
WP2203771 Whirlpool Refrigerator Door Hinge
11
WP489128 Whirlpool Refrigerator Screw
12
WP2203407W Whirlpool Refrigerator Cover
13
8201707 Whirlpool Door Hinge
14
Filler, Wrapper (White)
15
W10803964 Whirlpool Grille Assembly
16
WP489497 Whirlpool Screw
17
WP489464 Whirlpool Refrigerator Screw
18
W11566763 Whirlpool Fitting
19
WP1108438 Whirlpool Refrigerator Extension
20
WP1108439 Whirlpool Refrigerator Clip
21
WP2188755 Whirlpool Rear Panel
22
WP2203408W Whirlpool Refrigerator Cover
23
549193 Whirlpool Refrigerator Power Clamp
25
WPW10329686 Whirlpool Door Cam Black
26
WP489483 Whirlpool Screw
27
Cabinet (Not A Serviceable Part)
28
WP8281227 Whirlpool Screw
29
WP489500 Whirlpool Refrigerator Screw
30
EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
31
WP2186443 Whirlpool Water Filter Housing
32
WP2186494W Whirlpool Water Filter Cap
←
