ED5GTNXMQ00 06 – REFRIGERATOR DOOR PARTS

ED5GTNXMQ00 06 – REFRIGERATOR DOOR PARTS

Written by

in

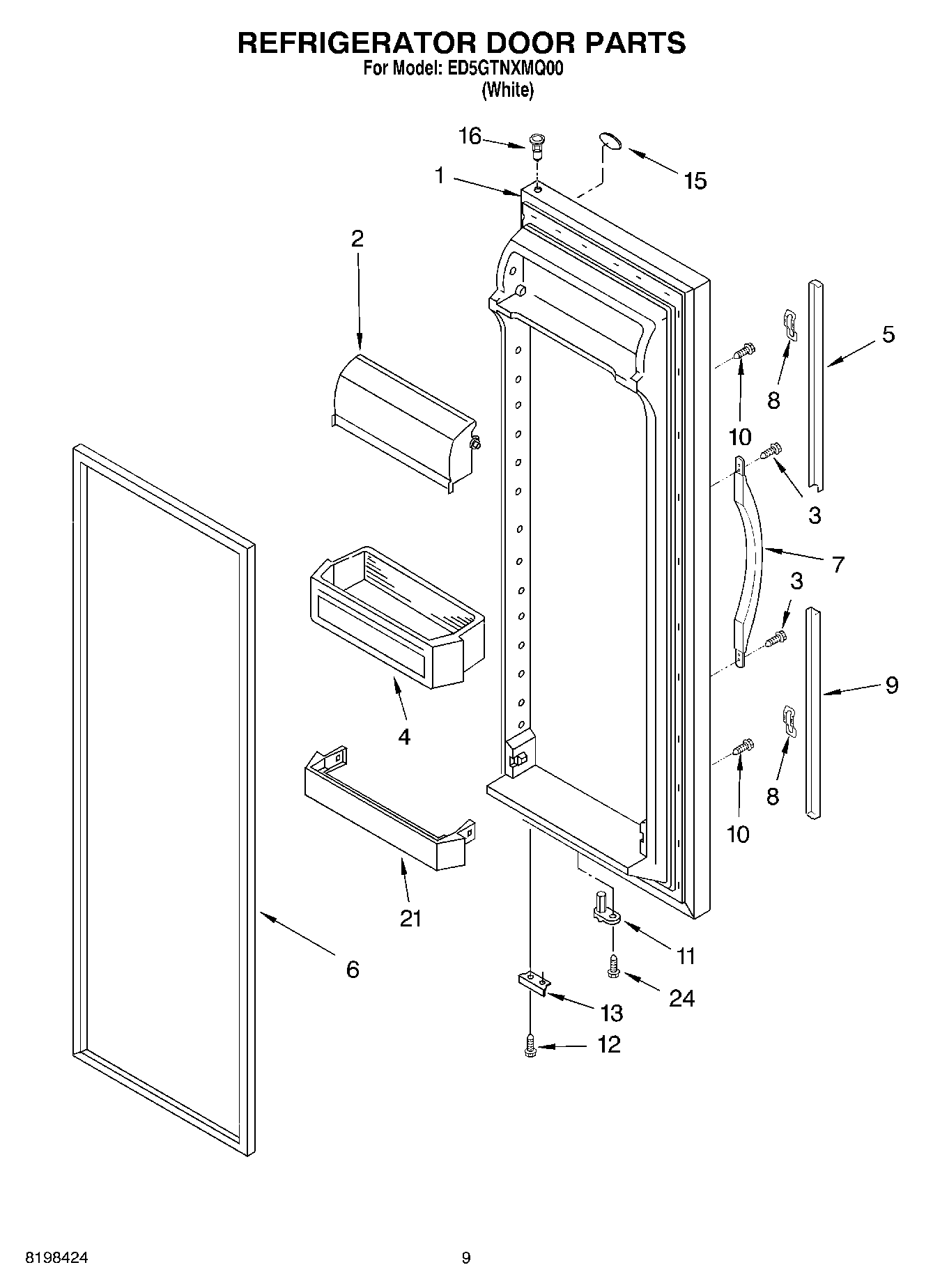

ED5GTNXMQ00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5WP2194973W Whirlpool Door Trim
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
8WP2195327 Whirlpool Refrigerator Clip
9Extension, Bottom (White)
10WP3400852 Whirlpool Refrigerator Screw
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
15WP2213265 Whirlpool Refrigerator Nameplate
16WP2182181 Whirlpool Refrigerator Thimble
21WP2177962K Whirlpool Refrigerator Door Trim
24WP3400012 Whirlpool Refrigerator Screw
