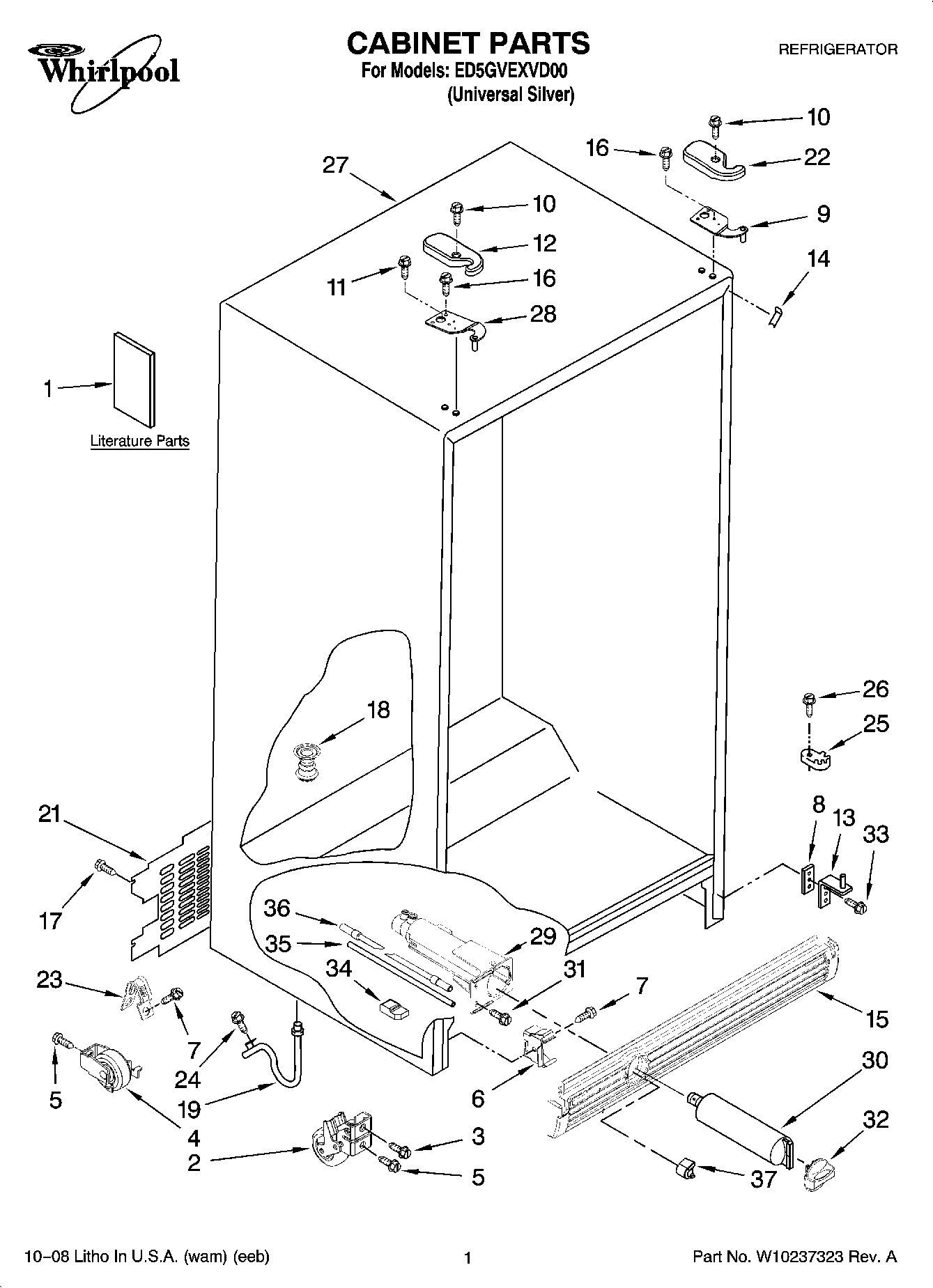

ED5GVEXVD00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Instruction Sheet, Door Removal
1Modular Icemaker Service Sheet
1Energy Guide
1Service & Wiring Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2209697 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP8281227 Whirlpool Screw
11WP489128 Whirlpool Refrigerator Screw
12WP2203407B Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14W11252732 Whirlpool Refrigerator Filler
15WPW10311033 Whirlpool Refrigerator Grille
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Extension Tube
21WP2188755 Whirlpool Rear Panel
22WP2203408B Whirlpool Refrigerator Cover
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27Cabinet, (Not A Serviceable Part)
28WP2203770 Whirlpool Refrigerator Door Hinge
29WPW10121138 Whirlpool Refrigerator Water Filter Housing
30FILTER 3-SINGLE TEAL
31WP489500 Whirlpool Refrigerator Screw
32WP2260518B Whirlpool Water Filter Cap
33WP489497 Whirlpool Screw
34Block, Housing Support
35WPW10350006 Whirlpool Refrigerator Water Tube
368201597 Whirlpool Inlet Water Fill Tube Kit Filter
37WP2260503B Whirlpool Refrigerator Button
