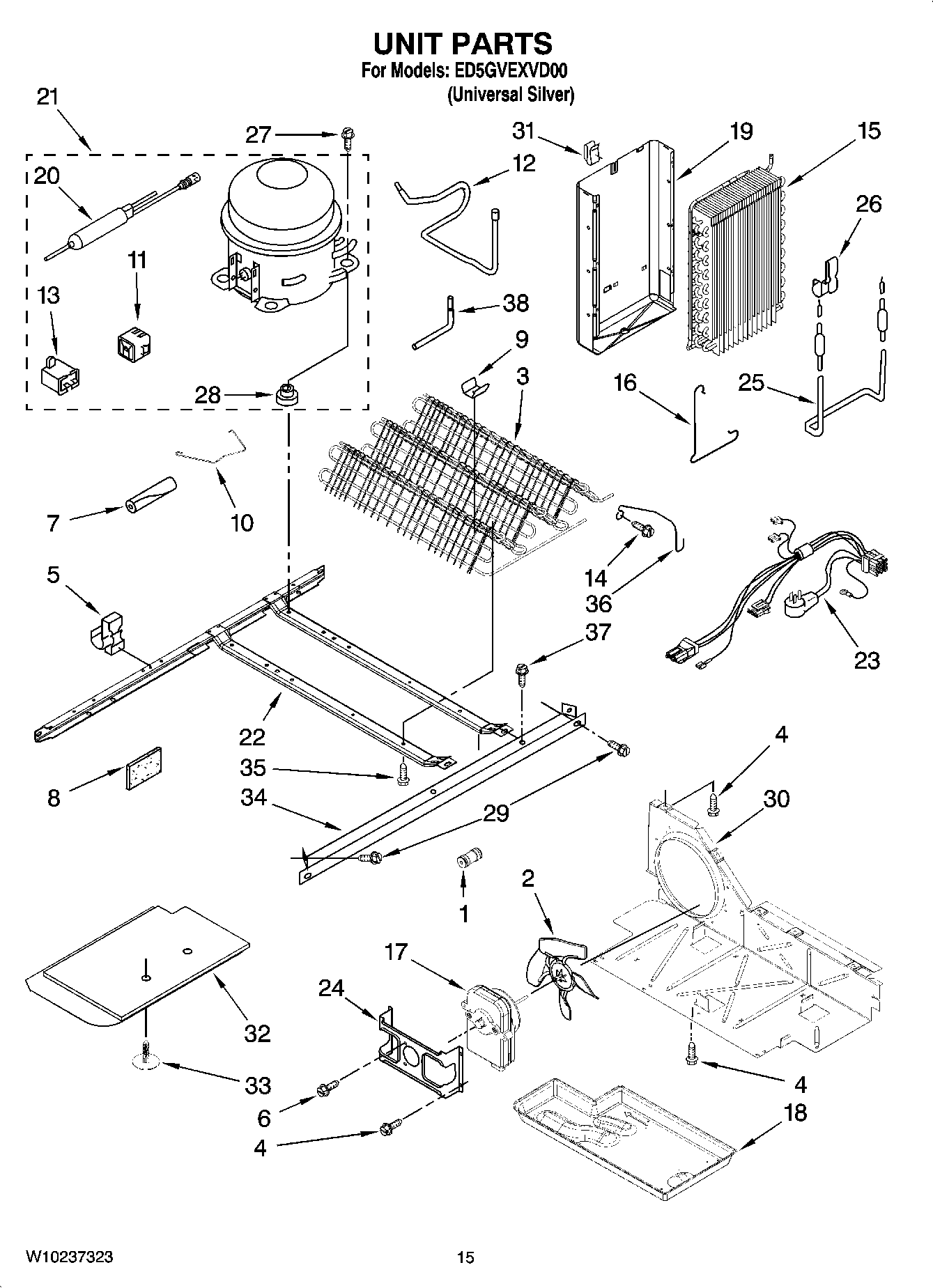

ED5GVEXVD00 09 – UNIT PARTS

ED5GVEXVD00 09 – UNIT PARTS

Written by

in

ED5GVEXVD00 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	W11553819 Whirlpool Refrigerator Insulation
9	W10683556 Whirlpool Refrigerator Clip
10	Clip, Retaining
11	W10896198 Whirlpool Refrigerator Start Device
11	WPW10189190 Whirlpool Start Device
12	WP2205765 Whirlpool Refrigerator Tube
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WP489478 Whirlpool Refrigerator Screw
15	WP2188823 Whirlpool Refrigerator Evaporator
17	WP2188874 Whirlpool Refrigerator Condenser Motor
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	Heat Shield
20	WPW10143759 Whirlpool Dryer Filter
21	W10139462 Whirlpool Refrigerator Compressor
22	W10196321 Whirlpool Refrigerator Frame
23	WPW10309395 Whirlpool Refrigerator Wire Harness
24	WP2181929 Whirlpool Refrigerator Bracket
25	WP2323198 Whirlpool Refrigerator Heater
26	Clamp
28	WP4387558 Whirlpool Refrigerator Compressor Grommet
28	876811 Whirlpool Grommet
29	489340 Whirlpool Refrigerator Screw
30	W10896764 Whirlpool Refrigerator Air Baffle
31	Clip, Heat Shield
32	Unit Cover, Bottom
33	489396 Whirlpool Refrigerator Clip
34	W10196313 Whirlpool Refrigerator Rail Unit
35	W11544659 Whirlpool Refrigerator Screw
36	2260517 Whirlpool Fan Guard
37	WP489427 Whirlpool Refrigerator Screw
38	W10858105 Whirlpool Refrigerator Tube
