ED5GVEXVD01 04 – FREEZER LINER PARTS

ED5GVEXVD01 04 – FREEZER LINER PARTS

Written by

in

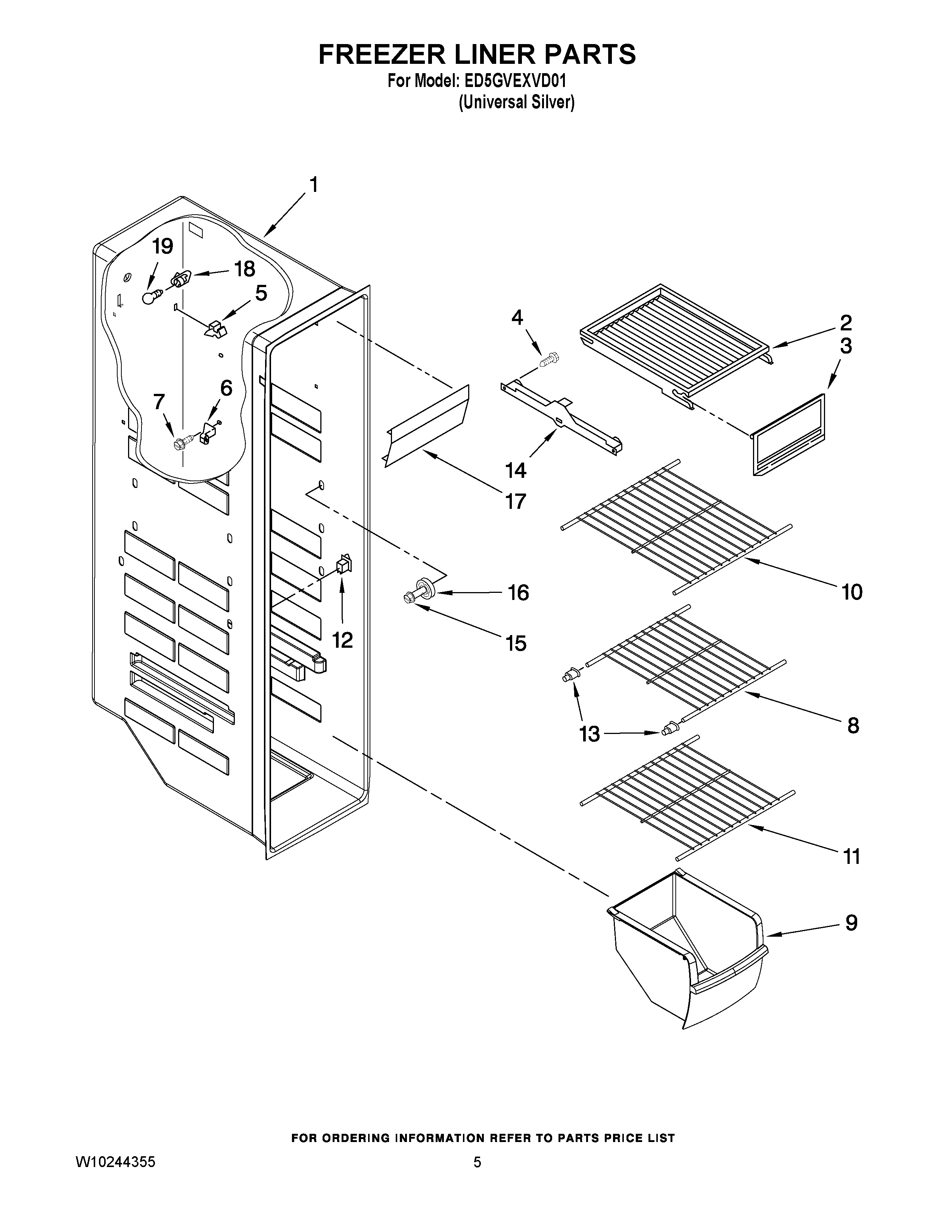

ED5GVEXVD01 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Shelf, Top Compartment
3WP2171713 Whirlpool Refrigerator Ice Door
4718257 Whirlpool Dishwasher Screw
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7W10142289 Whirlpool Air Conditioner Screw
8WPW10318948 Whirlpool Wire Shelf
9WPW10144409 Whirlpool Refrigerator Freezer Bin
10WPW10318947 Whirlpool Wire Shelf
11Shelf, Wire
12W11457217 Whirlpool Refrigerator Rocker Switch Combination
13WPW10130299 Whirlpool Refrigerator Cup
14W10845583 Whirlpool Refrigerator Track
14W10845585 Whirlpool Refrigerator Track
15WP3400806 Whirlpool Screw
16WP2196483 Whirlpool Refrigerator Shelf Stud
172171705 Whirlpool Refrigerator Light Lens
184387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
