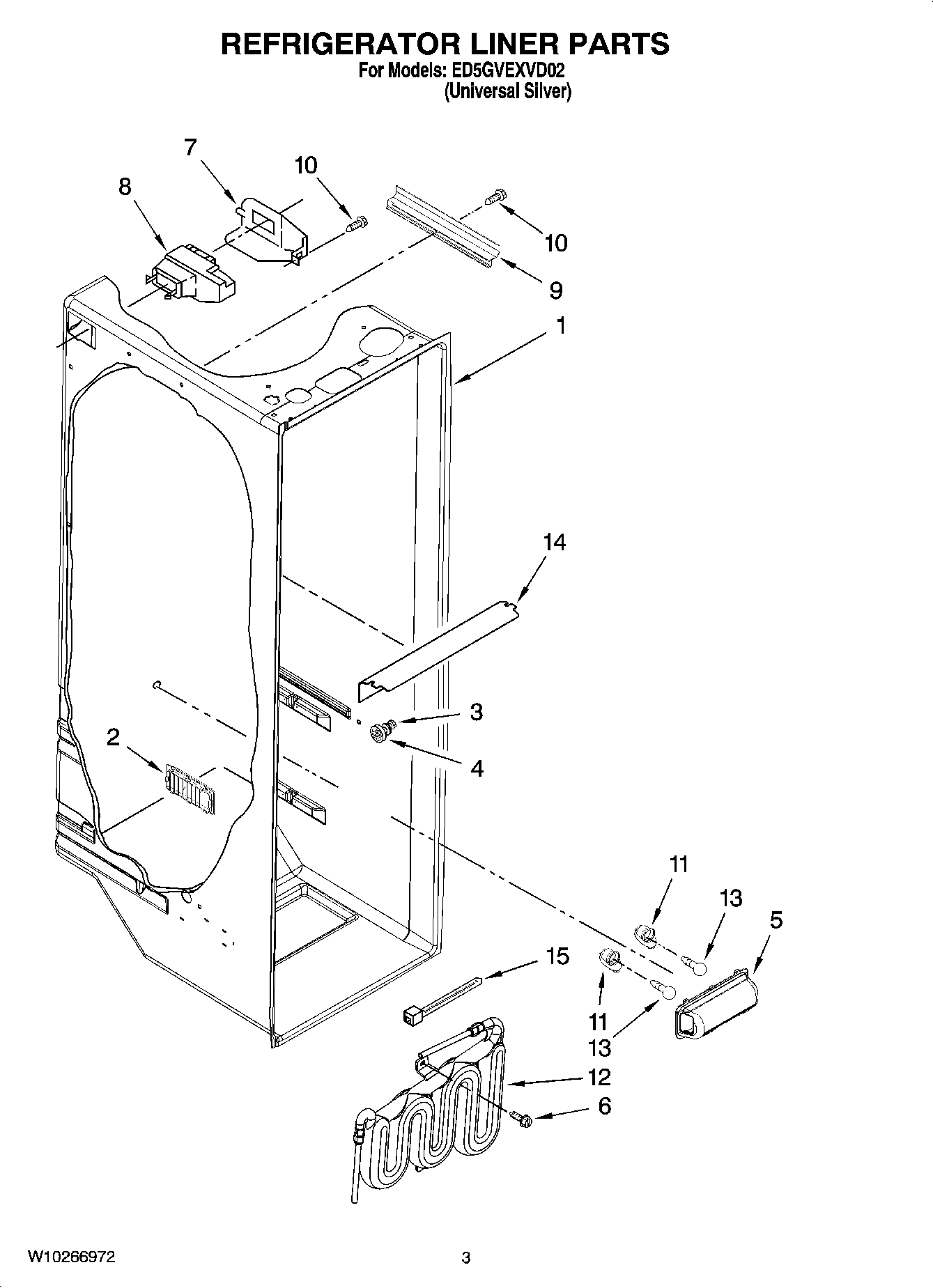

ED5GVEXVD02 02 – REFRIGERATOR LINER PARTS

ED5GVEXVD02 02 – REFRIGERATOR LINER PARTS

Written by

in

ED5GVEXVD02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Louver
3WP3-24004-109 Whirlpool Refrigerator Screw
4W11223328 Whirlpool Refrigerator Shelf Stud
5W11239891 Whirlpool Refrigerator Light Lens
6Screw (2)
72152019 Whirlpool Refrigerator Cover
8WPW10151374 Whirlpool Refrigerator Diffuser
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13RANGE ONLY 40W 120V APPL BULB
14Light Lens
15WPW10339879 Whirlpool Wire Tie
