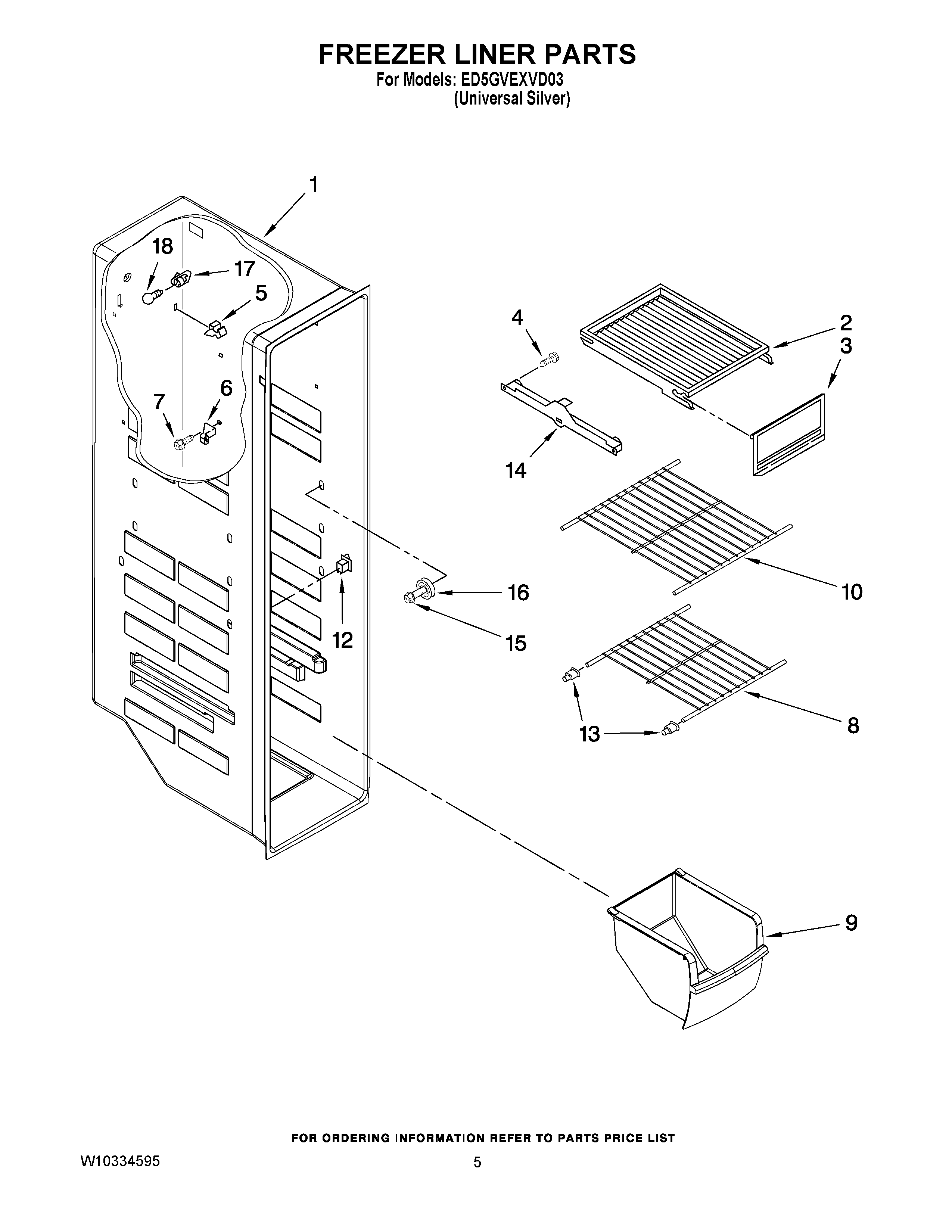

ED5GVEXVD03 04 – FREEZER LINER PARTS

ED5GVEXVD03 04 – FREEZER LINER PARTS

Written by

in

ED5GVEXVD03 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Shelf, Top Compartment
3WP2171713 Whirlpool Refrigerator Ice Door
4718257 Whirlpool Dishwasher Screw
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7W10142289 Whirlpool Air Conditioner Screw
8WP2174267 Whirlpool Refrigerator Wire Shelf
9WP2182971 Whirlpool Refrigerator Freezer Bin
10Shelf (2)
12W11457217 Whirlpool Refrigerator Rocker Switch Combination
13Stud, Rear
14W10845583 Whirlpool Refrigerator Track
14W10845585 Whirlpool Refrigerator Track
15WP3400806 Whirlpool Screw
16W11527119 Whirlpool Refrigerator Shelf Stud
174387478 Whirlpool Refrigerator Light Socket
18RANGE ONLY 40W 120V APPL BULB
