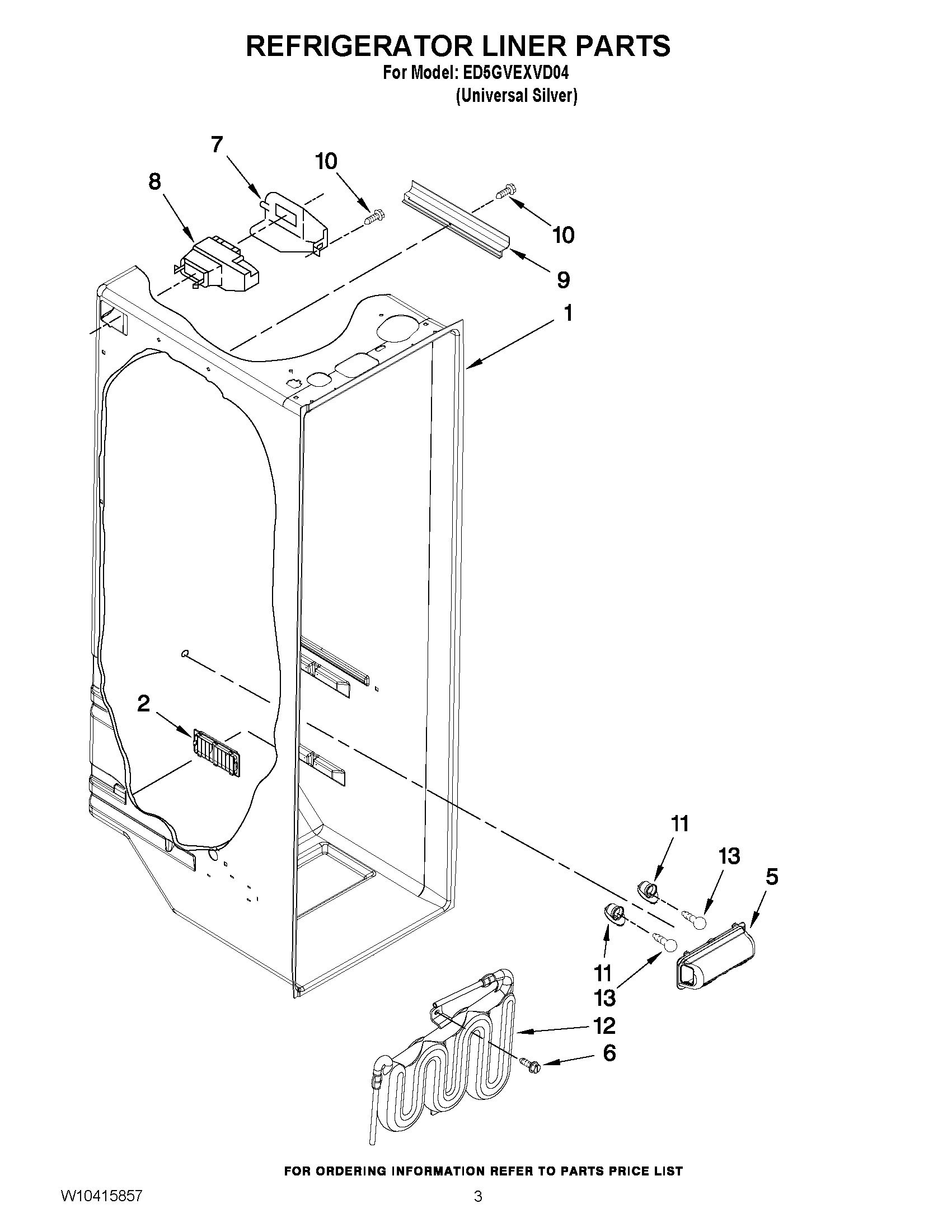

ED5GVEXVD04 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Louver
5W11239891 Whirlpool Refrigerator Light Lens
6Screw (2)
72152019 Whirlpool Refrigerator Cover
8WPW10151374 Whirlpool Refrigerator Diffuser
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13W11679940 Whirlpool Refrigerator Light Bulb Assembly
