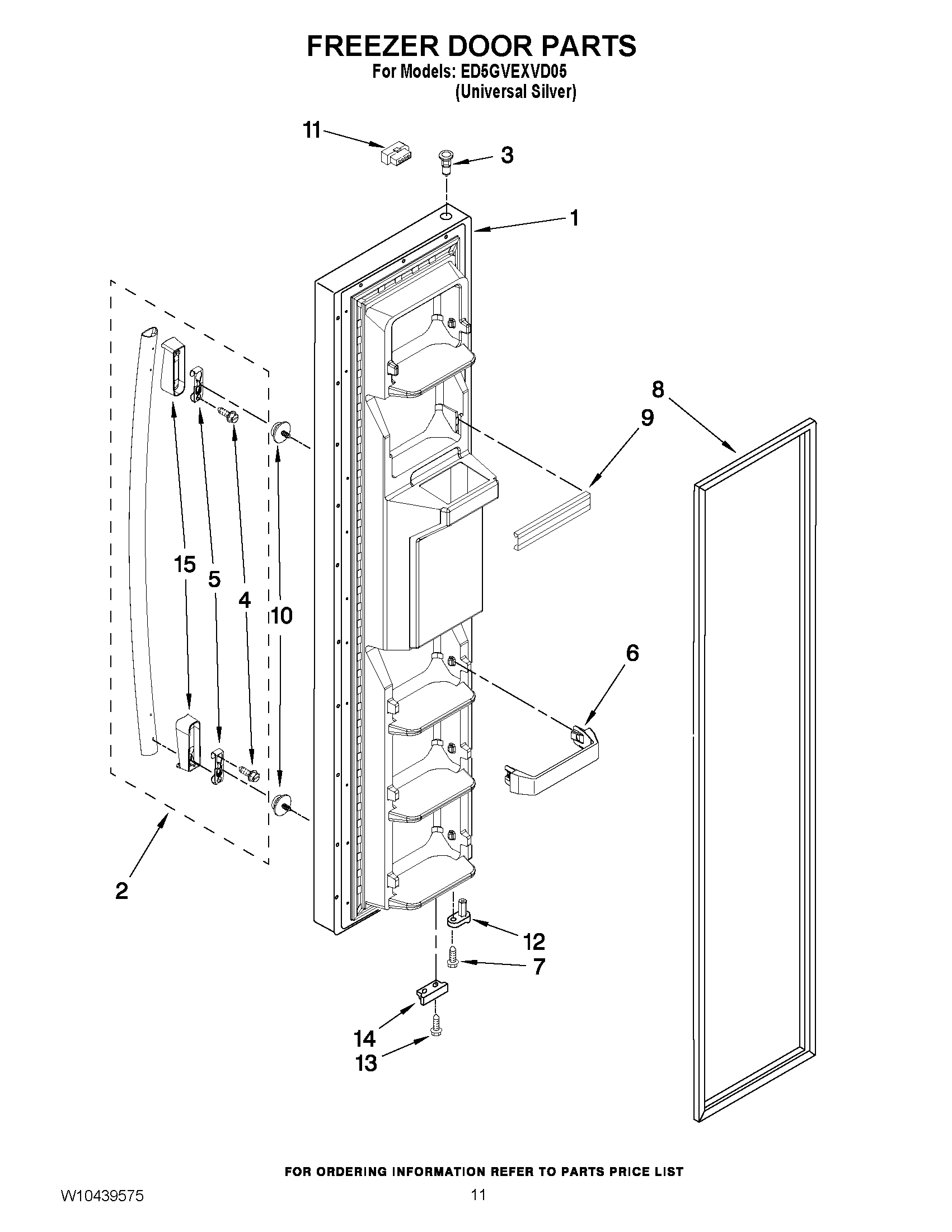

ED5GVEXVD05 07 – FREEZER DOOR PARTS

ED5GVEXVD05 07 – FREEZER DOOR PARTS

Written by

in

ED5GVEXVD05 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) UNIVERSAL SILVER
2WPW10127762 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WP8533988 Whirlpool Screw Fastener
5WP2255411 Whirlpool Refrigerator Clip
6WP2309718 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10288153 Whirlpool Refrigerator Screw
11WP2154473 Whirlpool Refrigerator Connector
12WP2182179 Whirlpool Cam Closer
13WPW10142233 Whirlpool Refrigerator Screw
14BRACKET, DOOR STOP
15Endcap (Black)
