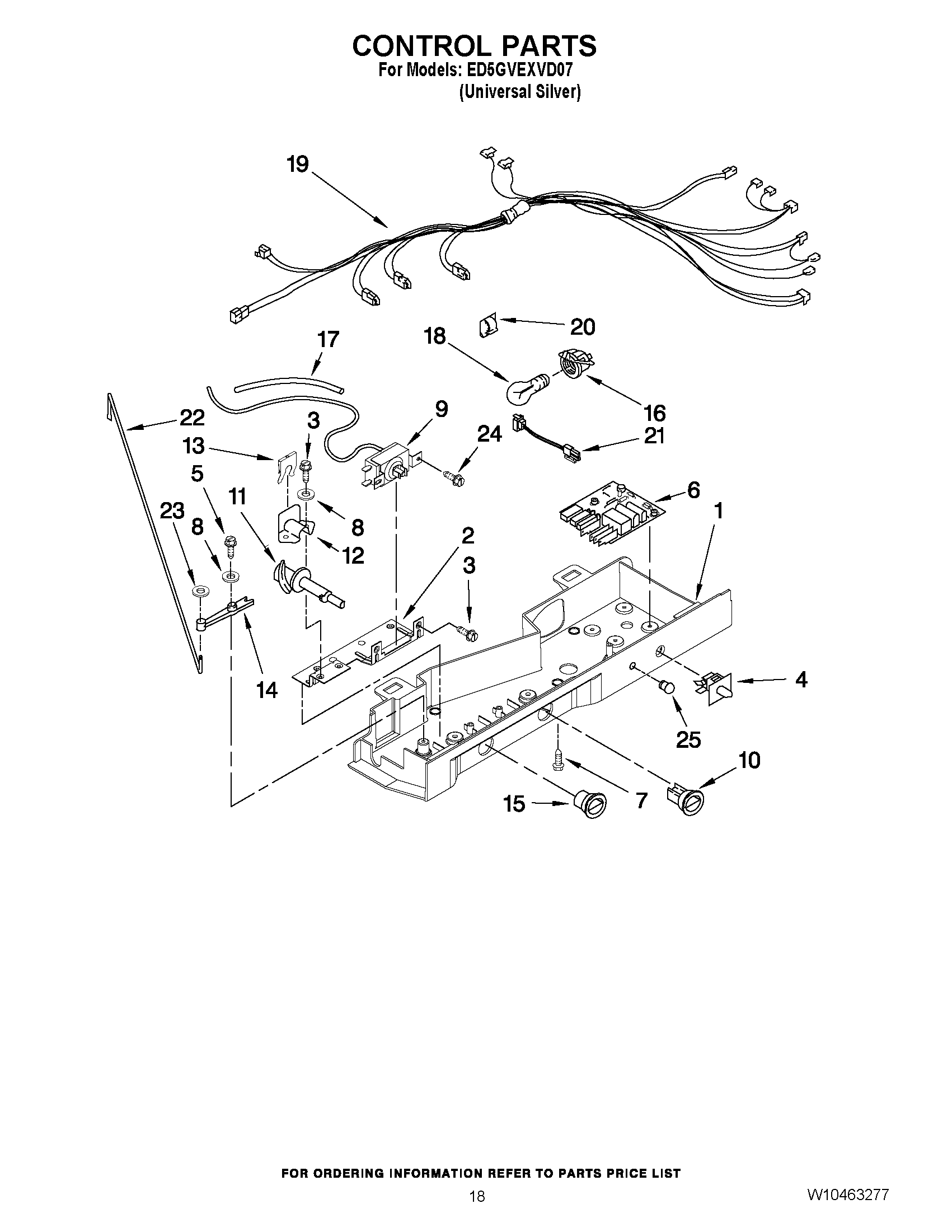

ED5GVEXVD07 11 – CONTROL PARTS

Products

Position	Product
1	W10159858 Whirlpool Refrigerator Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	627068 Whirlpool Refrigerator Screw
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	489203 Whirlpool Refrigerator Washer
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	W10723843 Whirlpool Refrigerator Thermostat Knob
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	WP2196062 Whirlpool Refrigerator Clip
14	Pivot Arm
15	2311615 Whirlpool Refrigerator Knob
16	4387478 Whirlpool Refrigerator Light Socket
17	WP2196003 Whirlpool Refrigerator Bar Riser
18	W11679940 Whirlpool Refrigerator Light Bulb Assembly
19	W10354806 Whirlpool Refrigerator Wire Harness
20	WP1115374 Whirlpool Refrigerator Clip
21	W10853646 Whirlpool Indicator Light
22	2311631 Whirlpool Refrigerator Rod
23	Fastener, Push-On
24	WP965173 Whirlpool Dishwasher Screw
25	COVER, LIGHT LENS
