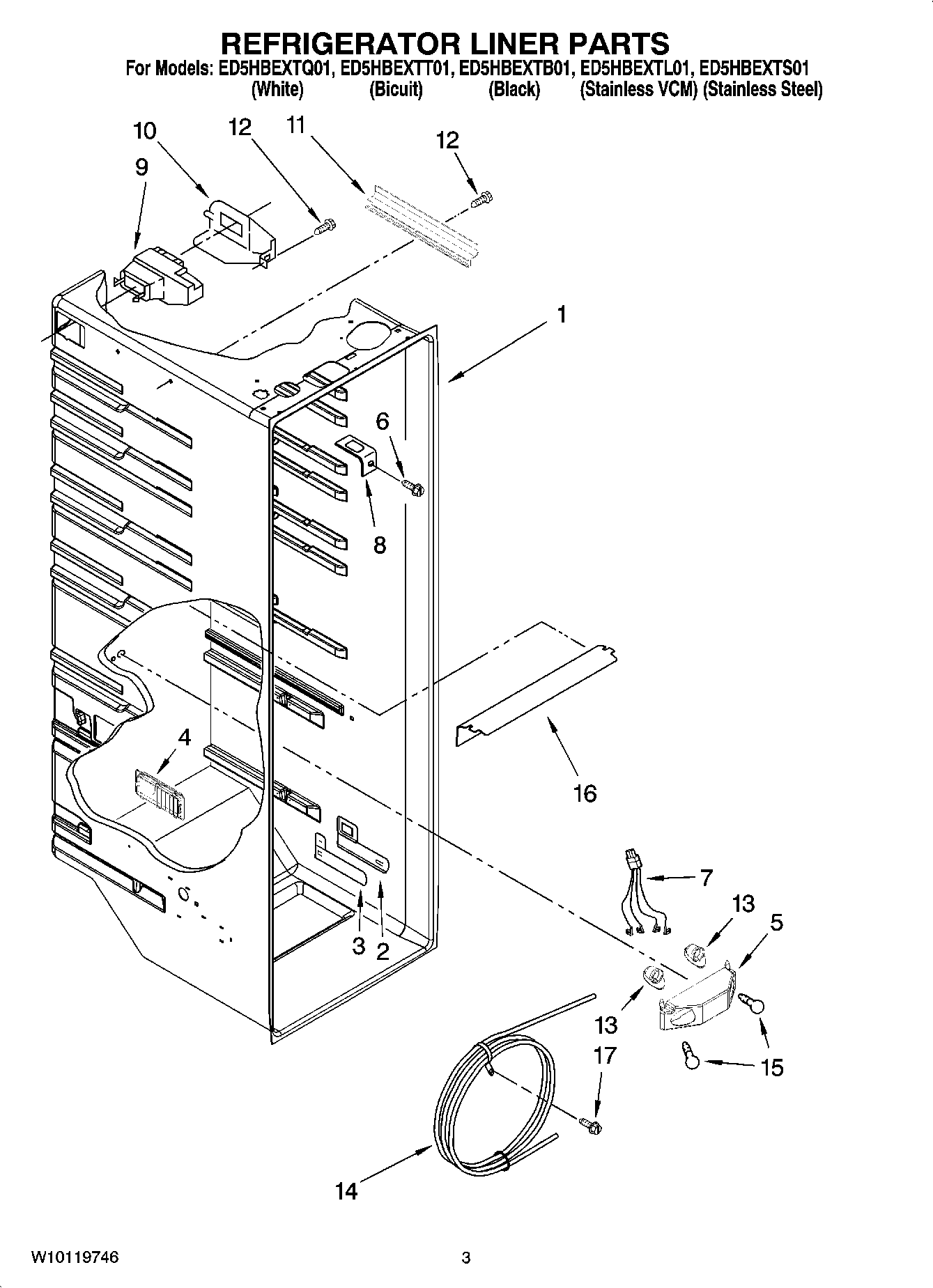

ED5HBEXTB01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
6	WP488488 Whirlpool Refrigerator Screw
7	2311637 Whirlpool Refrigerator Wire Harness
8	WP2256085 Whirlpool Refrigerator Retainer
9	WPW10151374 Whirlpool Refrigerator Diffuser
10	2152019 Whirlpool Refrigerator Cover
11	2150331 Whirlpool Refrigerator Wire Cover
12	W10759522 Whirlpool Screw
13	4387478 Whirlpool Refrigerator Light Socket
14	WP2256126 Whirlpool Refrigerator Reservoir
15	W11679940 Whirlpool Refrigerator Light Bulb Assembly
16	Light Lens
17	Screw (2)
