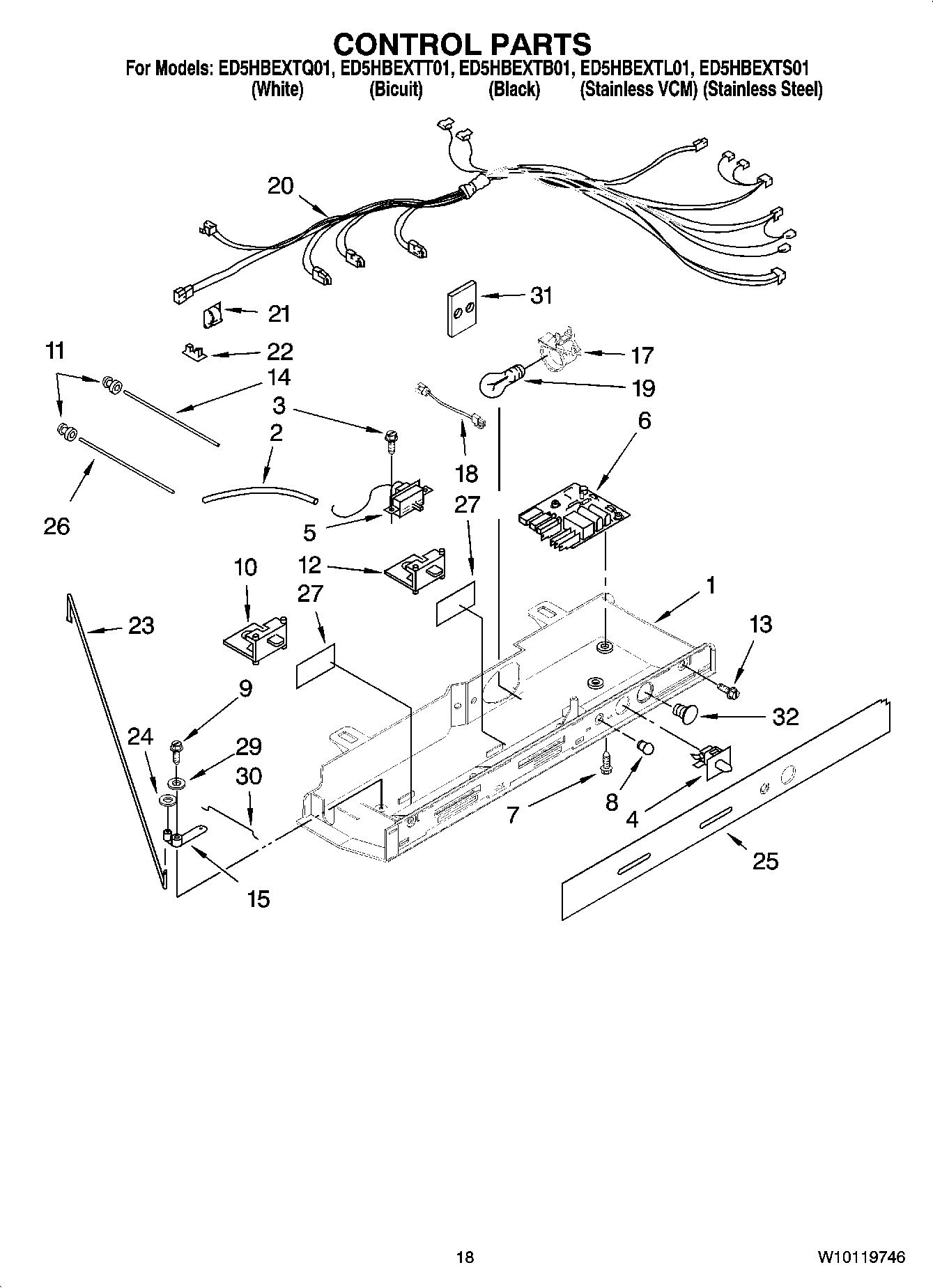

ED5HBEXTB01 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	COVER, LIGHT LENS
9	627068 Whirlpool Refrigerator Screw
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2161306 Whirlpool Refrigerator Arm Pivot
17	4387478 Whirlpool Refrigerator Light Socket
18	W10853646 Whirlpool Indicator Light
19	W11679940 Whirlpool Refrigerator Light Bulb Assembly
20	2311632 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Front Cover, Control Box
26	Light Bar (FC)
27	Window
29	489203 Whirlpool Refrigerator Washer
30	2161307 Whirlpool Refrigerator Rod
31	2172931 Whirlpool Refrigerator Shield
32	940014 Whirlpool Refrigerator Primary Button Plug
