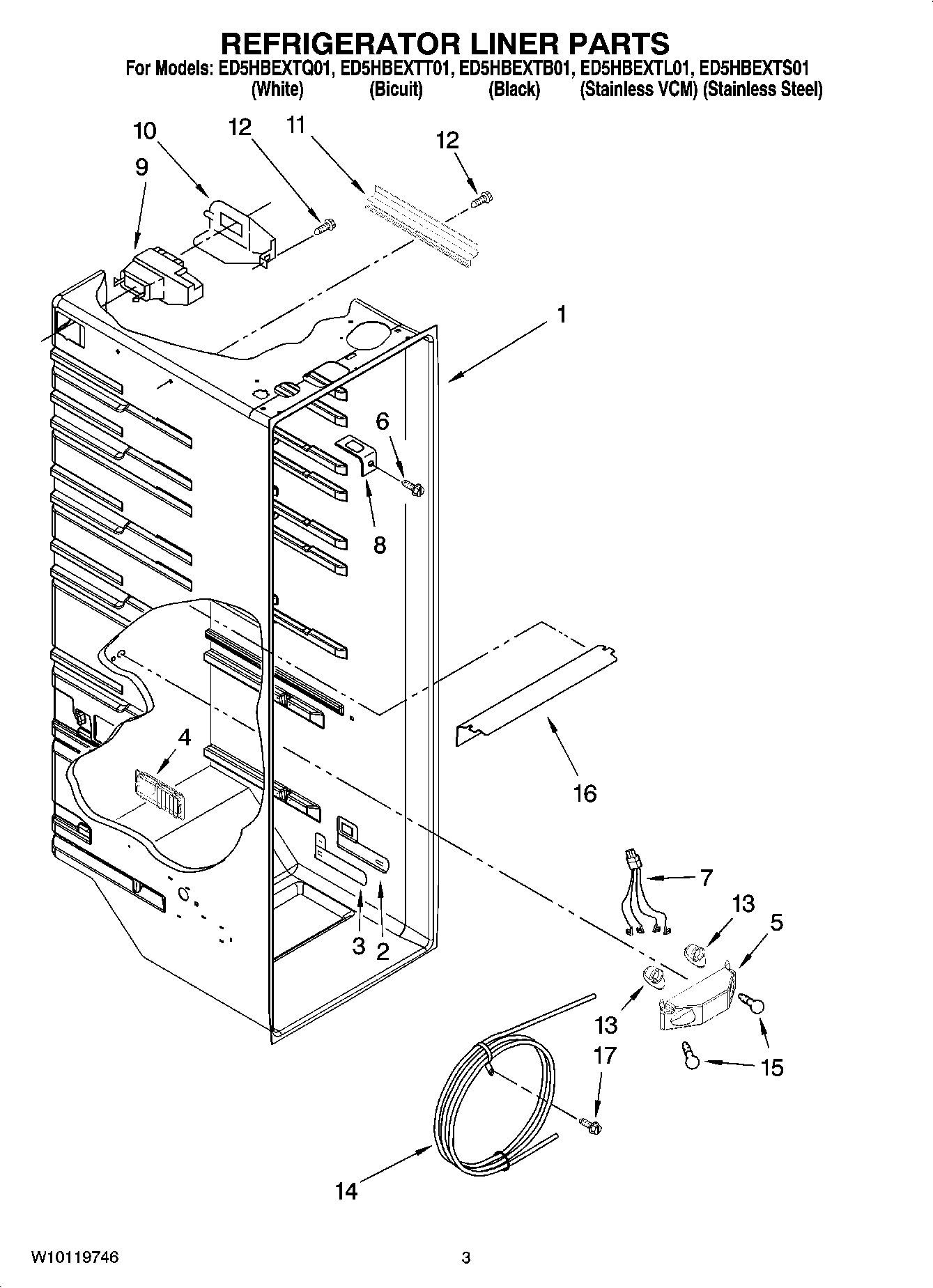

ED5HBEXTL01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
6WP488488 Whirlpool Refrigerator Screw
72311637 Whirlpool Refrigerator Wire Harness
8WP2256085 Whirlpool Refrigerator Retainer
9WPW10151374 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
14WP2256126 Whirlpool Refrigerator Reservoir
15W11679940 Whirlpool Refrigerator Light Bulb Assembly
16Light Lens
17Screw (2)
