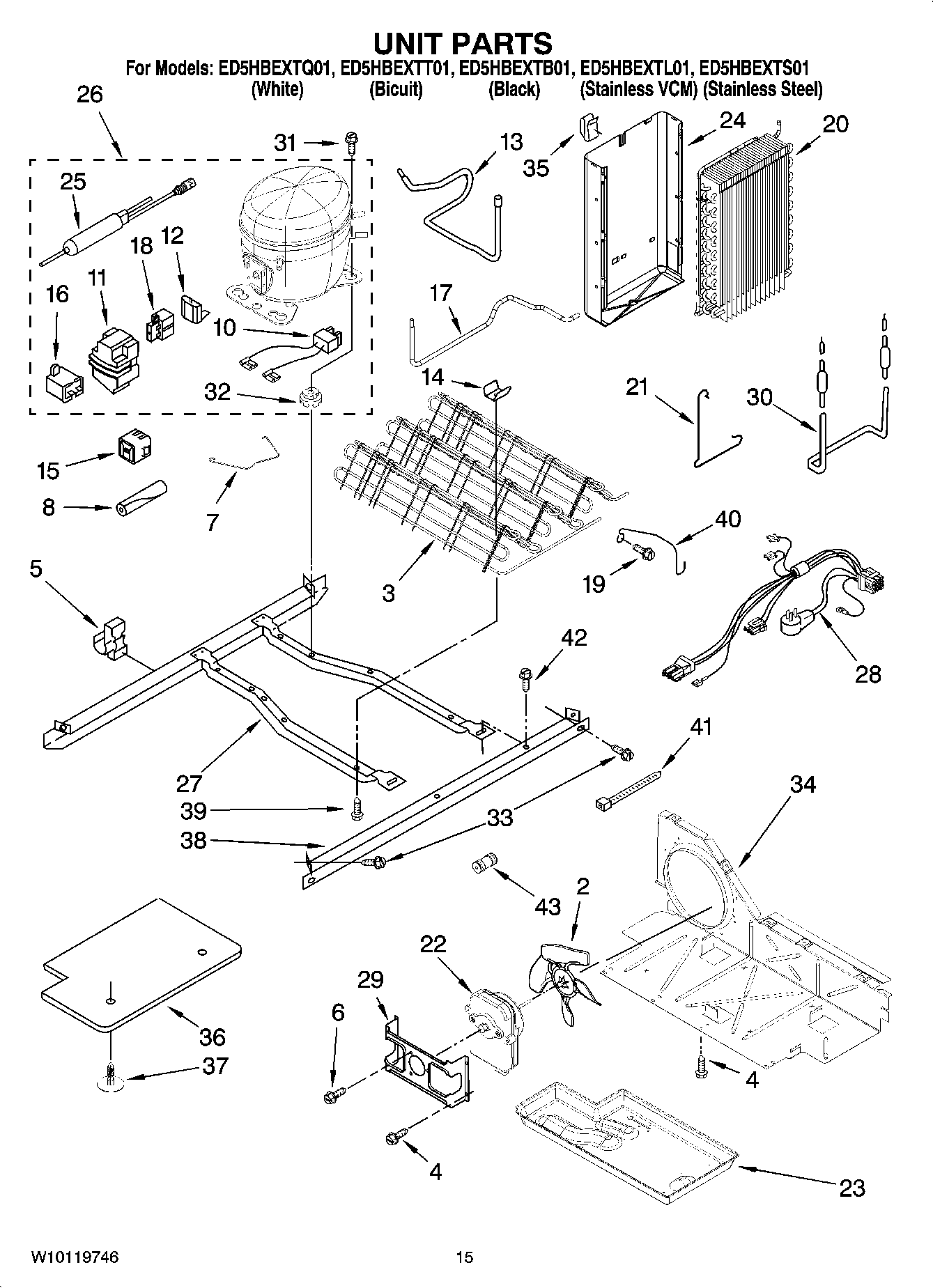

ED5HBEXTL01 09 – UNIT PARTS

ED5HBEXTL01 09 – UNIT PARTS

Written by

in

ED5HBEXTL01 09 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Clip, Retaining
8	SLEEVE
10	WP2172890 Whirlpool Refrigerator Wire
11	WP2162358 Whirlpool Refrigerator Terminal Cover
12	WP2154697 Whirlpool Refrigerator Overload
13	WP2205765 Whirlpool Refrigerator Tube
14	W10683556 Whirlpool Refrigerator Clip
15	WP2319792 Whirlpool Refrigerator Start Device
16	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	2261599 Whirlpool Refrigerator Tube
18	W10920279 Whirlpool Refrigerator Start Relay
19	WP489478 Whirlpool Refrigerator Screw
20	WP2188823 Whirlpool Refrigerator Evaporator
21	Clamp
22	WP2188874 Whirlpool Refrigerator Condenser Motor
23	WPW10614158 Whirlpool Refrigerator Evaporator Tray
24	Heat Shield
25	W10843121 Whirlpool Refrigerator Tube
25	WPW10143759 Whirlpool Dryer Filter
26	W10309994 Whirlpool Refrigerator Compressor
27	2304904 Whirlpool Frame Assembly
28	WPW10309395 Whirlpool Refrigerator Wire Harness
29	WP2181929 Whirlpool Refrigerator Bracket
30	WP2323198 Whirlpool Refrigerator Heater
32	876811 Whirlpool Grommet
32	WP4387558 Whirlpool Refrigerator Compressor Grommet
33	489340 Whirlpool Refrigerator Screw
34	W10896764 Whirlpool Refrigerator Air Baffle
35	Clip, Heat Shield
36	Unit Cover, Bottom
37	489396 Whirlpool Refrigerator Clip
38	2305374 Whirlpool Refrigerator Unit Rail
39	W11544659 Whirlpool Refrigerator Screw
40	2260517 Whirlpool Fan Guard
41	WPW10339879 Whirlpool Wire Tie
42	WP489427 Whirlpool Refrigerator Screw
43	978030 Whirlpool Refrigerator Valve
43	Following Parts Not Illustrated and Optional Par
43	VALVE, ACCESS (5/8“)
43	876764 Whirlpool Refrigerator Primary Valve
43	WP4373559 Whirlpool Fitting
43	VALVE, ACCESS (1/2“)
43	WP978025 Whirlpool Refrigerator Valve
43	978026 Whirlpool Refrigerator Primary Valve
43	978027 Whirlpool Refrigerator Primary Valve
43	WPL ARI35134A7
