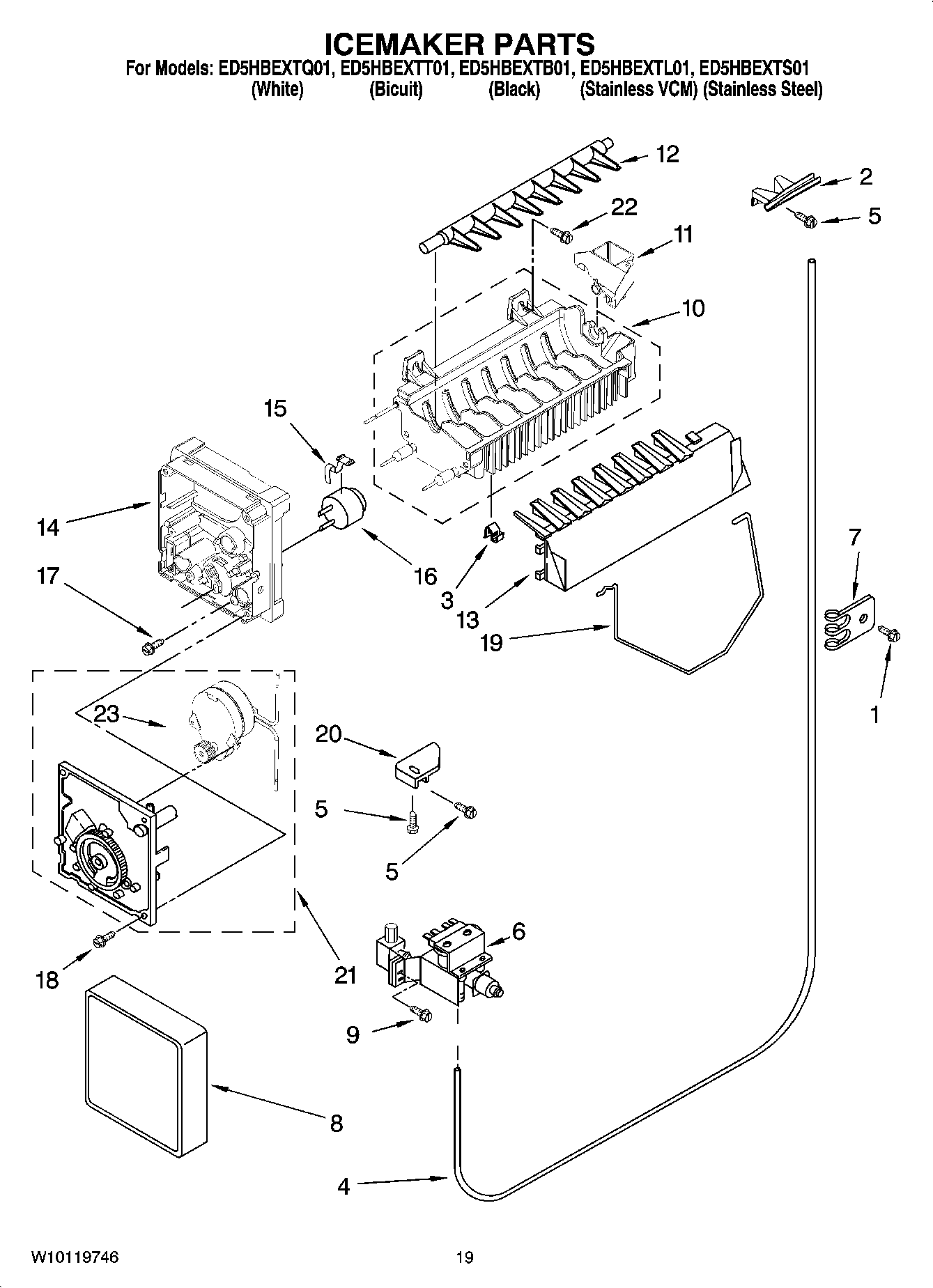

ED5HBEXTT01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI35192A1
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108``)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI35193A8
	Important: The spray paint is not to be use
	WPL ARI35191A8
	833938 Whirlpool Refrigerator Terminal
	350942 Whirlpool Spray Paint
	Cleaner, Stainless Steel
	350930 Whirlpool White Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
2	W11505385 Whirlpool Refrigerator Chute
3	WP628379 Whirlpool Refrigerator Clip
4	W10823511 Whirlpool Refrigerator Water Tube
5	WP489478 Whirlpool Refrigerator Screw
6	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7	WP488366 Whirlpool Refrigerator Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11	WP628356 Whirlpool Refrigerator Fill Cup
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WP2182124 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP627985 Whirlpool Icemaker Cycling Thermostat
17	8533917 Whirlpool Refrigerator Screw
18	WP681249 Whirlpool Screw Assembly
19	W11342242 Whirlpool Refrigerator Ice Level Arm
20	W11500948 Whirlpool Refrigerator Bracket
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	WP488163 Whirlpool Refrigerator Screw
23	Motor (Not Serviced, Order 21)
100	WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
