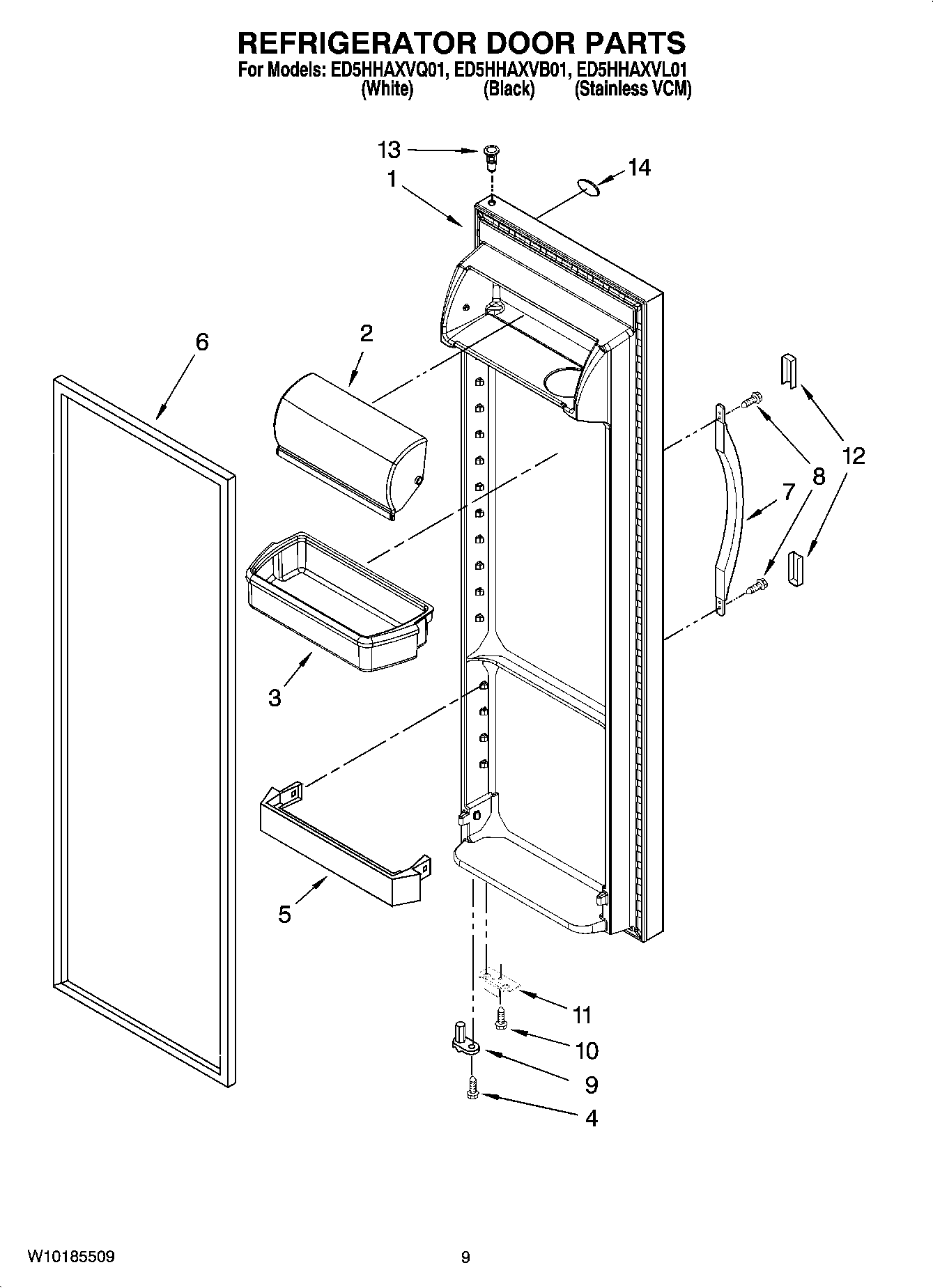

ED5HHAXVB01 06 – REFRIGERATOR DOOR PARTS

ED5HHAXVB01 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED5HHAXVB01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless VCM)
1REFRIGERATOR DOOR (INCLUDES ITEM 6) )(BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 6) )(WHITE)
2WP2256101 Whirlpool Dairy Door
3WP2203828 Whirlpool Door Shelf Bin
4WP3400012 Whirlpool Refrigerator Screw
5WP2156022 Whirlpool Refrigerator Door Trim
62159075 Whirlpool Door Gasket Seal
62159083 Whirlpool Gasket Door
7Handle, Center (White)
7WP2186649B Whirlpool Refrigerator Handle
8WP489491 Whirlpool Refrigerator Screw
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11WP2206629B Whirlpool Refrigerator Bracket
12Cover, Trim (Black)
12WP2193353W Whirlpool Refrigerator Trim Handle
13WP2182181 Whirlpool Refrigerator Thimble
14WP2213265 Whirlpool Refrigerator Nameplate
