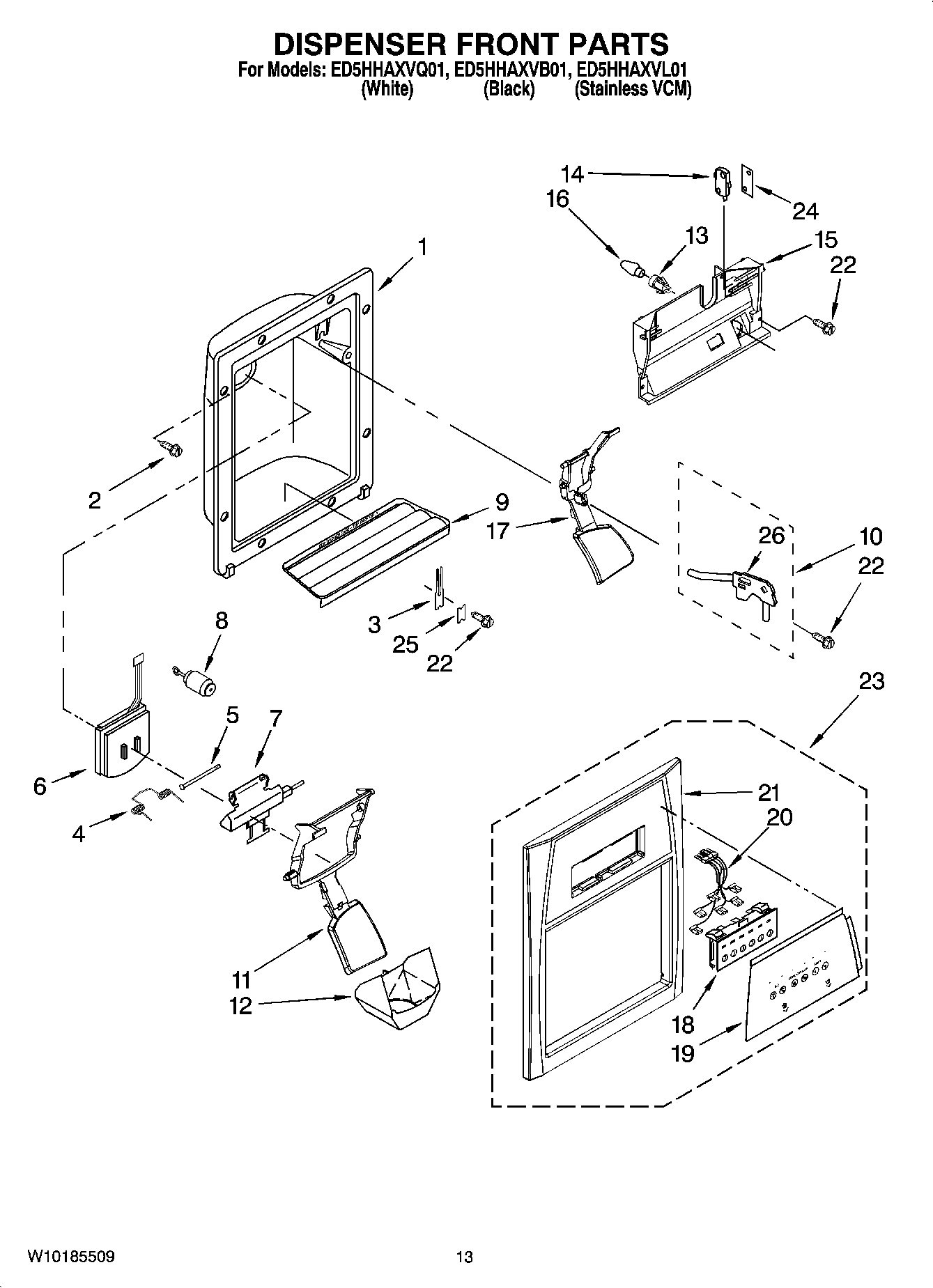

ED5HHAXVB01 08 – DISPENSER FRONT PARTSadmin2025-04-26T10:36:34+00:00ED5HHAXVB01 08 – DISPENSER FRONT PARTS ProductsPositionProduct1Housing Dispenser (Not Serviced)2WP3196557 Whirlpool Screw3WP2194719 Whirlpool Refrigerator Clip4WPW10224328 Whirlpool Refrigerator Spring5WP2196195 Whirlpool Refrigerator Door Pin6WP2180353 Whirlpool Dispenser Door7Door Mechanism Assembly8Delay Mechanism9WP2206670W Whirlpool Dispenser Tray9WP2206670B Whirlpool Dispenser Tray108201537 Whirlpool Water Tubing Assembly11WP2255431W Whirlpool Refrigerator Dispenser Arm11WP2255431B Whirlpool Refrigerator Dispenser Arm12WP2180224 Whirlpool Dispenser Funnel Guide132180200 Whirlpool Refrigerator Socket14WP2162361 Whirlpool Switch15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket16WP22002263 Whirlpool Dryer 10W Light Bulb17WP2255432B Whirlpool Refrigerator Dispenser Arm17WP2255432W Whirlpool Refrigerator Dispenser Arm18Switch Assembly (Not Available Order 23)19Overlay, Front Cover (Not Available, Order 23)202187406 Whirlpool Refrigerator Wire Harness21Front Cover, Housing (Not Available Order 23)22WP3400906 Whirlpool Refrigerator Screw23W10144418 Whirlpool Refrigerator Front Cover23W10144417 Whirlpool Refrigerator Front Cover24Spacer, Switch (2)25WP2195051 Whirlpool Refrigerator Clip26WP2304673 Whirlpool Refrigerator Bracket
