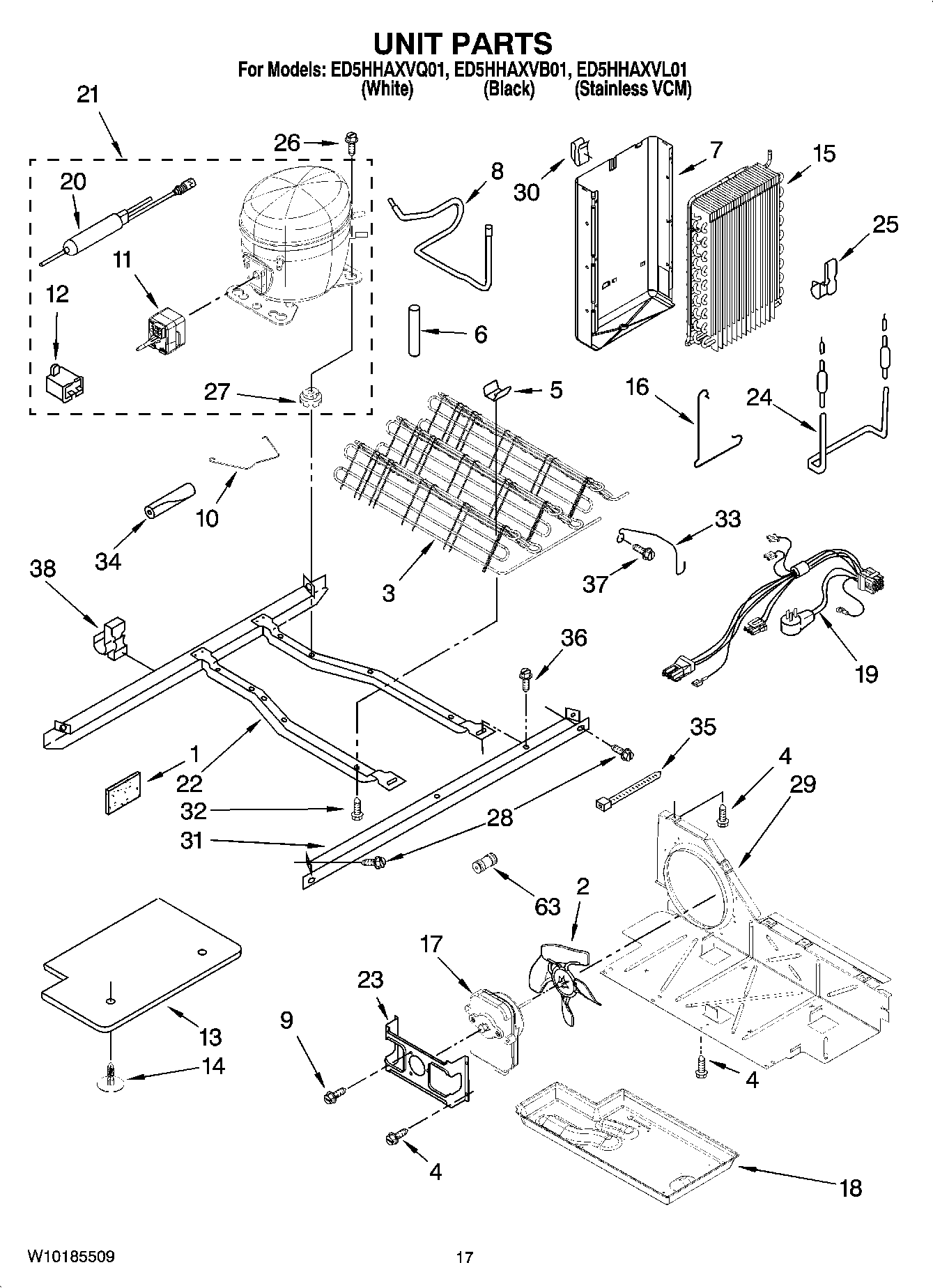

ED5HHAXVB01 11 – UNIT PARTS
Written by
in
ED5HHAXVB01 11 – UNIT PARTS
Products
Position
Product
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1
W11553819 Whirlpool Refrigerator Insulation
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
W10683556 Whirlpool Refrigerator Clip
6
Bushing, Compressor
7
Heat Shield
8
WP2205765 Whirlpool Refrigerator Tube
9
WP8533993 Whirlpool Refrigerator Screw
10
Clip, Retaining
11
W10896198 Whirlpool Refrigerator Start Device
11
WPW10189190 Whirlpool Start Device
12
WPW10662129 Whirlpool Refrigerator Run Capacitor
13
Unit Cover, Bottom
14
489396 Whirlpool Refrigerator Clip
15
WP2188823 Whirlpool Refrigerator Evaporator
16
Clamp
17
WP2188874 Whirlpool Refrigerator Condenser Motor
18
WPW10614158 Whirlpool Refrigerator Evaporator Tray
19
WPW10309395 Whirlpool Refrigerator Wire Harness
20
WPW10143759 Whirlpool Dryer Filter
20
W10843121 Whirlpool Refrigerator Tube
21
W10139462 Whirlpool Refrigerator Compressor
22
2304904 Whirlpool Frame Assembly
23
WP2181929 Whirlpool Refrigerator Bracket
24
WP2323198 Whirlpool Refrigerator Heater
25
W11623163 Whirlpool Refrigerator Clip
27
876811 Whirlpool Grommet
27
WP4387558 Whirlpool Refrigerator Compressor Grommet
28
489340 Whirlpool Refrigerator Screw
29
W10896764 Whirlpool Refrigerator Air Baffle
30
Clip, Heat Shield
31
2305374 Whirlpool Refrigerator Unit Rail
32
W11544659 Whirlpool Refrigerator Screw
33
2260517 Whirlpool Fan Guard
34
SLEEVE
35
WPW10339879 Whirlpool Wire Tie
36
WP489427 Whirlpool Refrigerator Screw
37
WP489478 Whirlpool Refrigerator Screw
38
Clip, Wire & Tube
63
WPW10334458 Whirlpool Refrigerator Connector
←
