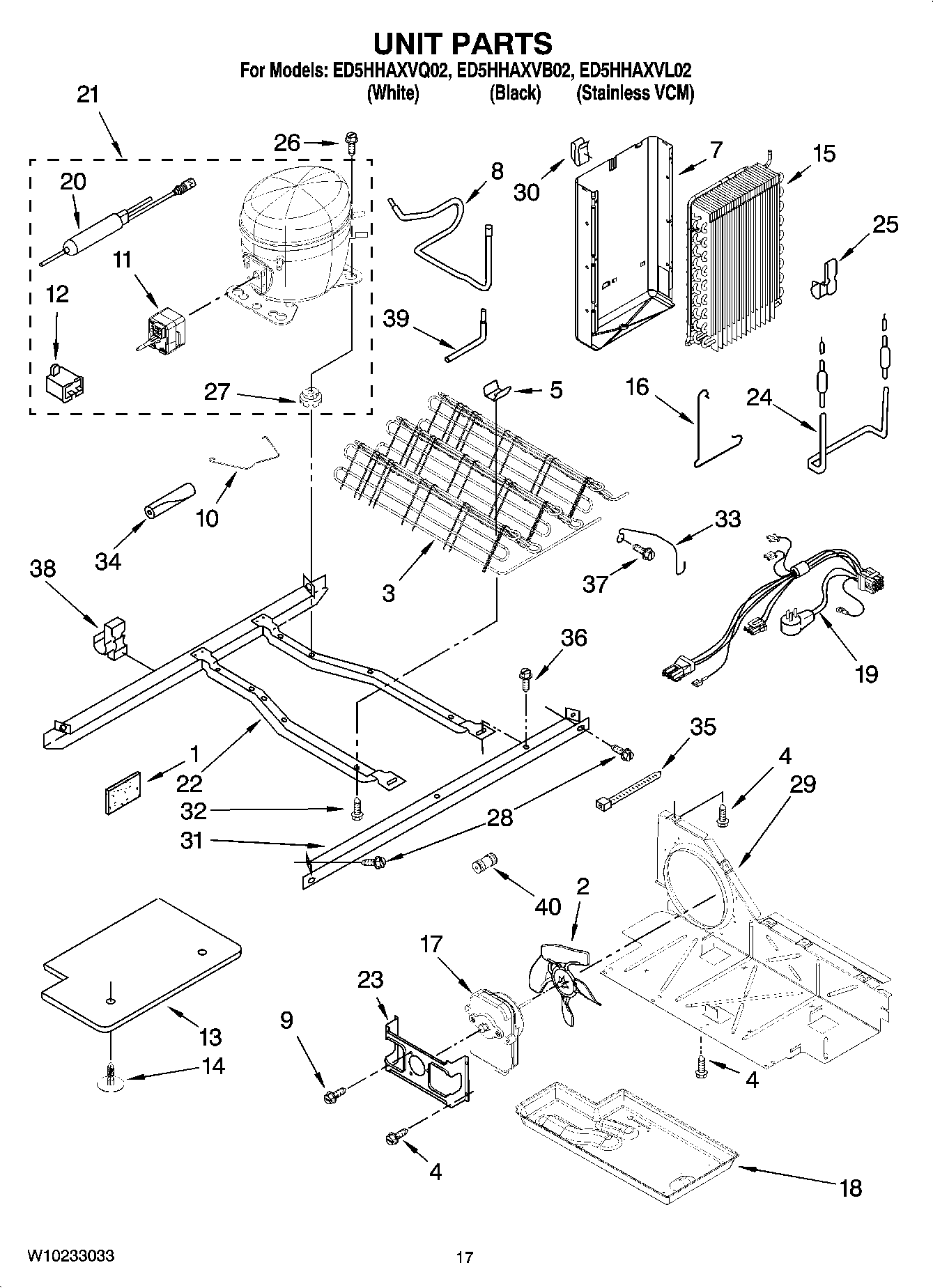

ED5HHAXVQ02 11 – UNIT PARTSadmin2025-04-26T10:36:18+00:00ED5HHAXVQ02 11 – UNIT PARTS ProductsPositionProduct978026 Whirlpool Refrigerator Primary ValveREFRIGERANT CHARGE 5.0 oz. (R-134A)VALVE, ACCESS (1/2``)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveFollowing Parts Not Illustrated and Optional Parts Not IncludedVALVE, ACCESS (5/8``)1W11553819 Whirlpool Refrigerator Insulation2W10156818 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip7Heat Shield8W10528574 Whirlpool Refrigerator Tube9WP8533993 Whirlpool Refrigerator Screw10W11661170 Whirlpool Clip11WPW10189190 Whirlpool Start Device12WPW10662129 Whirlpool Refrigerator Run Capacitor13Unit Cover, Bottom14489396 Whirlpool Refrigerator Clip15WP2188823 Whirlpool Refrigerator Evaporator16Clamp17WP2188874 Whirlpool Refrigerator Condenser Motor18WPW10614158 Whirlpool Refrigerator Evaporator Tray19WPW10309395 Whirlpool Refrigerator Wire Harness20WPW10143759 Whirlpool Dryer Filter21W10233961 Whirlpool Refrigerator Compressor222304904 Whirlpool Frame Assembly23WP2181929 Whirlpool Refrigerator Bracket24WP2323198 Whirlpool Refrigerator Heater25W11623163 Whirlpool Refrigerator Clip27WP4387558 Whirlpool Refrigerator Compressor Grommet27876811 Whirlpool Grommet28489340 Whirlpool Refrigerator Screw29W10896764 Whirlpool Refrigerator Air Baffle30Clip, Heat Shield312305374 Whirlpool Refrigerator Unit Rail32W11544659 Whirlpool Refrigerator Screw332260517 Whirlpool Fan Guard34SLEEVE35WPW10339879 Whirlpool Wire Tie36WP489427 Whirlpool Refrigerator Screw37WP489478 Whirlpool Refrigerator Screw38Clip, Wire & Tube39W10274306 Whirlpool Refrigerator Tube40WPW10334458 Whirlpool Refrigerator Connector
