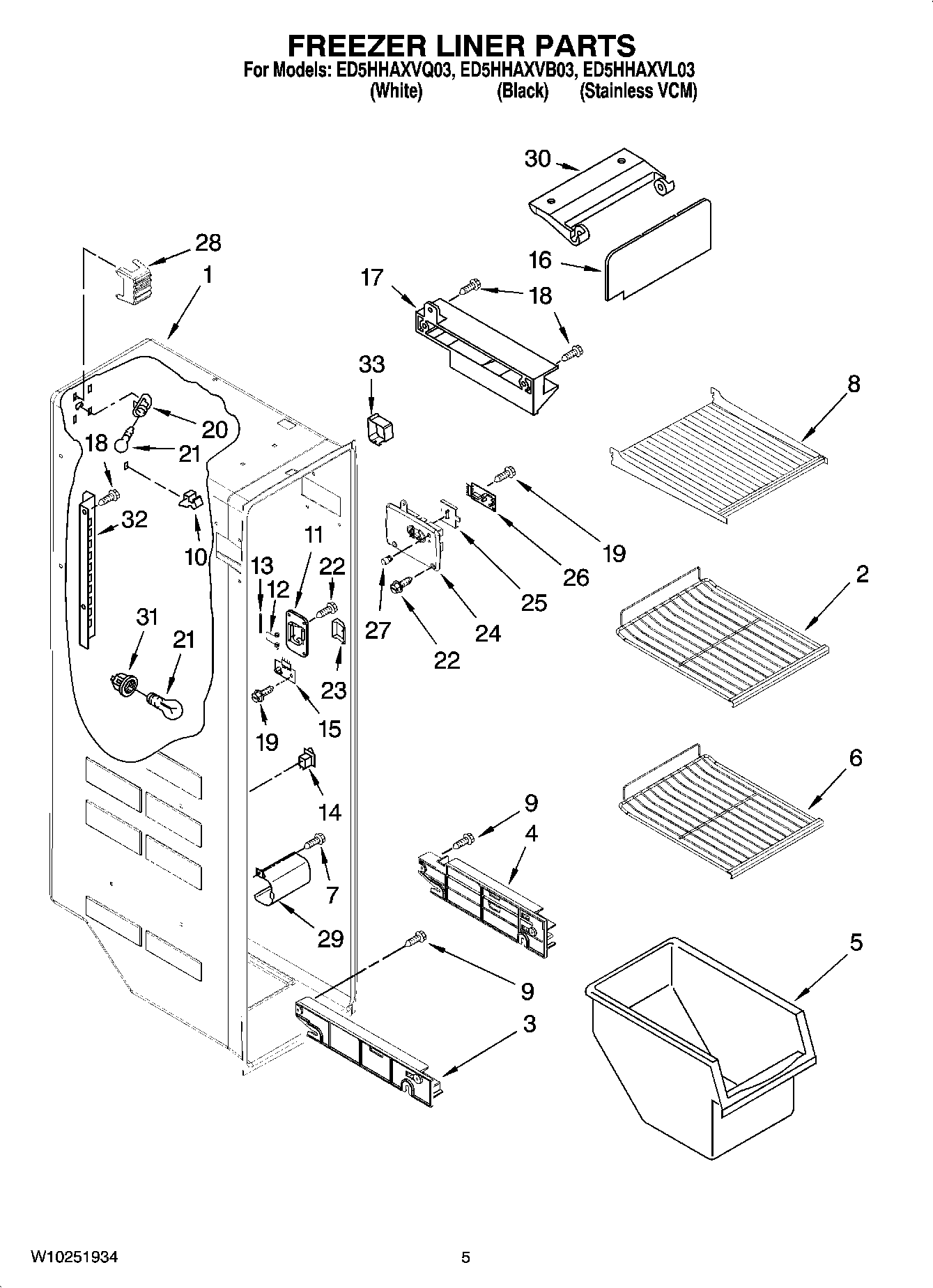

ED5HHAXVQ03 04 – FREEZER LINER PARTS

ED5HHAXVQ03 04 – FREEZER LINER PARTS

Written by

in

ED5HHAXVQ03 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Shelf, Slide Out Upper
3Shelf Track (Right Side)
3Shelf Track (Left Side)
42301291 Whirlpool Refrigerator Track
42301292 Whirlpool Refrigerator Track
5WP2182971 Whirlpool Refrigerator Freezer Bin
6WPW10317556 Whirlpool Refrigerator Wire Shelf
7W10142289 Whirlpool Air Conditioner Screw
8Shelf (2)
9W10759522 Whirlpool Screw
102215823 Whirlpool Refrigerator Clip
11WP2198587 Whirlpool Refrigerator Cover
12WP2198635 Whirlpool Refrigerator Spring
13WP2198634 Whirlpool Door Pin
14W11457217 Whirlpool Refrigerator Rocker Switch Combination
16WP2255720 Whirlpool Refrigerator Ice Maker Door
17Slide, Ice Maker
18WP489478 Whirlpool Refrigerator Screw
192006254 Whirlpool Refrigerator Screw
204387478 Whirlpool Refrigerator Light Socket
21RANGE ONLY 40W 120V APPL BULB
22WPW10142283 Whirlpool Refrigerator Screw
23WP2198633 Whirlpool Refrigerator Flipper
24Cover, Receiver
252315398 Whirlpool Refrigerator Slide
26W10757851-includeCORE Whirlpool Electronic Control+Core
27WP2198643 Whirlpool Refrigerator Lens
28Light Shield
29Light Lens
30WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
31SOCKET
32Ladder (Right Side)
32Ladder (Left Side)
332303234 Whirlpool Refrigerator Shield
