ED5HHAXVQ03 07 – FREEZER DOOR PARTS

ED5HHAXVQ03 07 – FREEZER DOOR PARTS

Written by

in

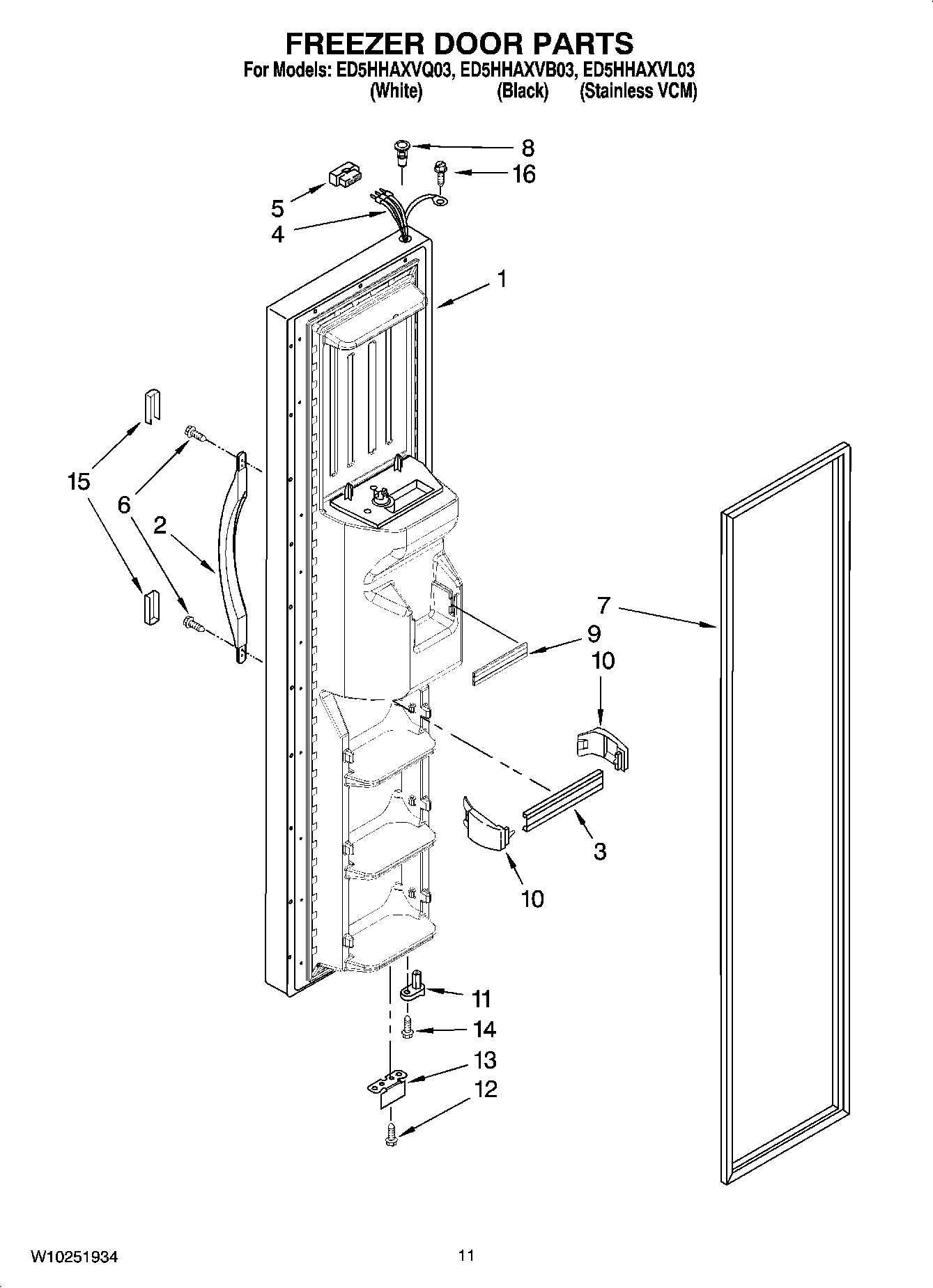

ED5HHAXVQ03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless VCM)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
2Handle (White)
2Handle (Black)
32313199 Whirlpool Refrigerator Door Trim
42198619 Whirlpool Refrigerator Wire Harness
5WP2154473 Whirlpool Refrigerator Connector
6WP489491 Whirlpool Refrigerator Screw
72159074 Whirlpool Door Gasket Seal
72159082 Whirlpool Freezer Door Gasket Black
8WP2182181 Whirlpool Refrigerator Thimble
9WPW10307490 Whirlpool Door Trim Assembly
10WP2195917K Whirlpool Refrigerator Endcap
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP3400012 Whirlpool Refrigerator Screw
15Trim, Handle (White)
15WP2194272B Whirlpool Refrigerator Handle Endcap
16WP489128 Whirlpool Refrigerator Screw
