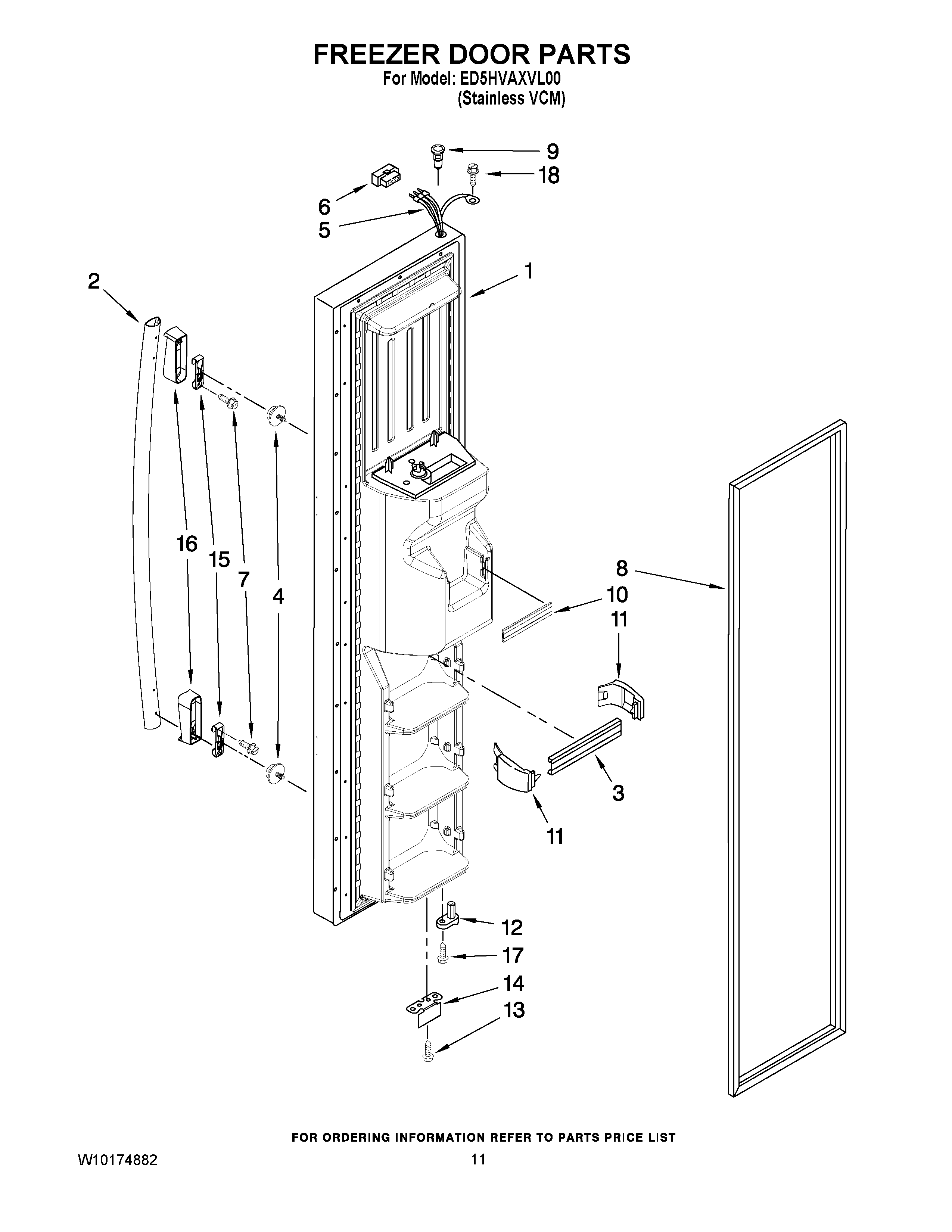

ED5HVAXVL00 07 – FREEZER DOOR PARTS

ED5HVAXVL00 07 – FREEZER DOOR PARTS

Written by

in

ED5HVAXVL00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS VCM)
2W10273555 Whirlpool Refrigerator Handle
32313199 Whirlpool Refrigerator Door Trim
4WPW10288153 Whirlpool Refrigerator Screw
52198619 Whirlpool Refrigerator Wire Harness
6WP2154473 Whirlpool Refrigerator Connector
7WP8533988 Whirlpool Screw Fastener
82159082 Whirlpool Freezer Door Gasket Black
9WP2182181 Whirlpool Refrigerator Thimble
10WPW10307490 Whirlpool Door Trim Assembly
11WP2195917K Whirlpool Refrigerator Endcap
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15WP2255411 Whirlpool Refrigerator Clip
16Endcap (Nickel Alloy)
17WP3400012 Whirlpool Refrigerator Screw
18WP489128 Whirlpool Refrigerator Screw
