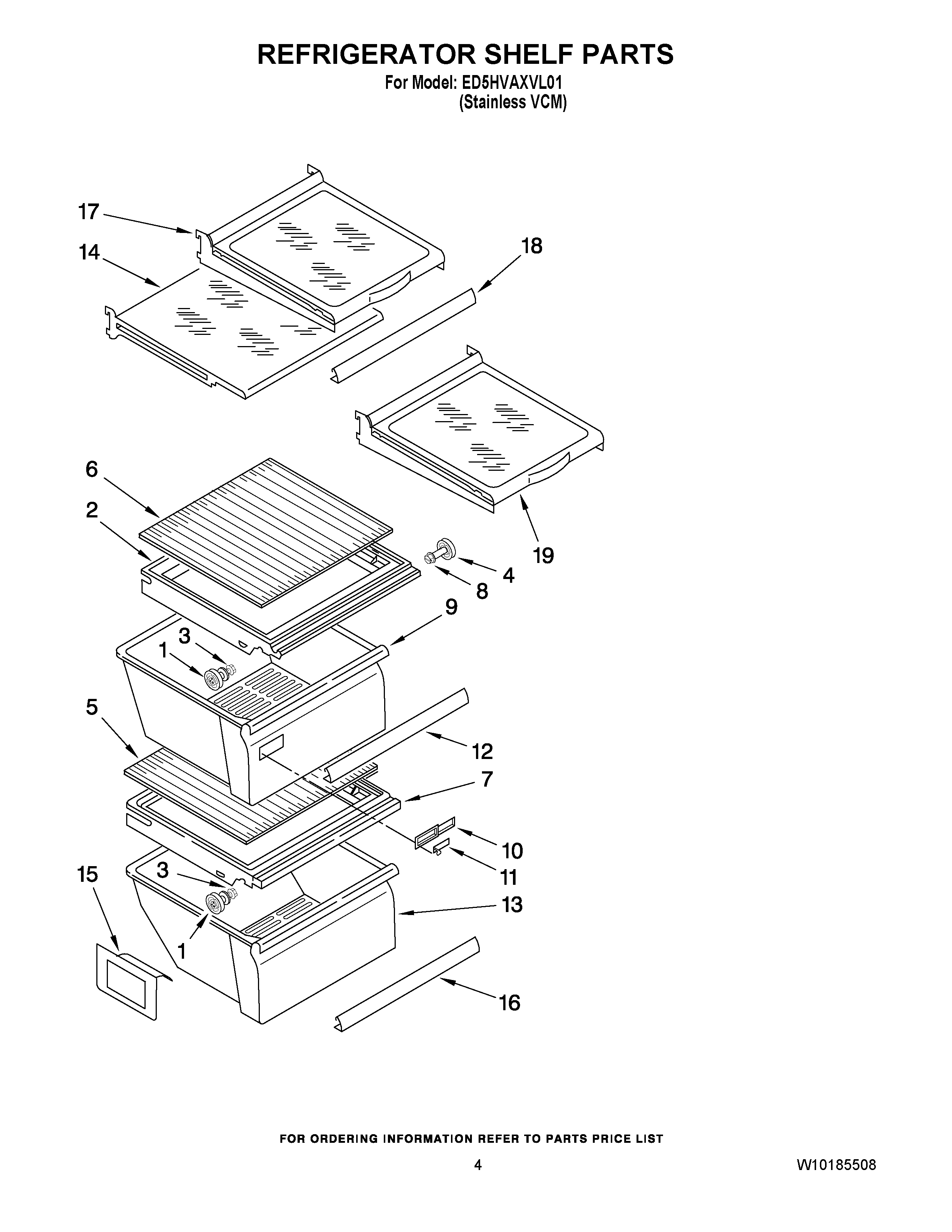

ED5HVAXVL01 03 – REFRIGERATOR SHELF PARTS

ED5HVAXVL01 03 – REFRIGERATOR SHELF PARTS

Written by

in

ED5HVAXVL01 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1W11223328 Whirlpool Refrigerator Shelf Stud
2W10508993 Whirlpool Refrigerator Cover Pan
3WP3-24004-109 Whirlpool Refrigerator Screw
4WP2196483 Whirlpool Refrigerator Shelf Stud
6W10864399 Whirlpool Glass Shelf
8WP3400806 Whirlpool Screw
9PAN-CRISPR
10WP2179343 Whirlpool Refrigerator Control Body
11WP2179342 Whirlpool Refrigerator Slide
13WP2188664 Whirlpool Dishwasher Meat Crisper Pan
14W11497323 Whirlpool Snack Pan
152179350 Whirlpool Refrigerator Deflector
16WP2179234 Whirlpool Refrigerator Pan Trim
17Shelf, Snack Bin
18WP2179243 Whirlpool Refrigerator Pan Trim
19Shelf Assembly, Spillguard (2)
