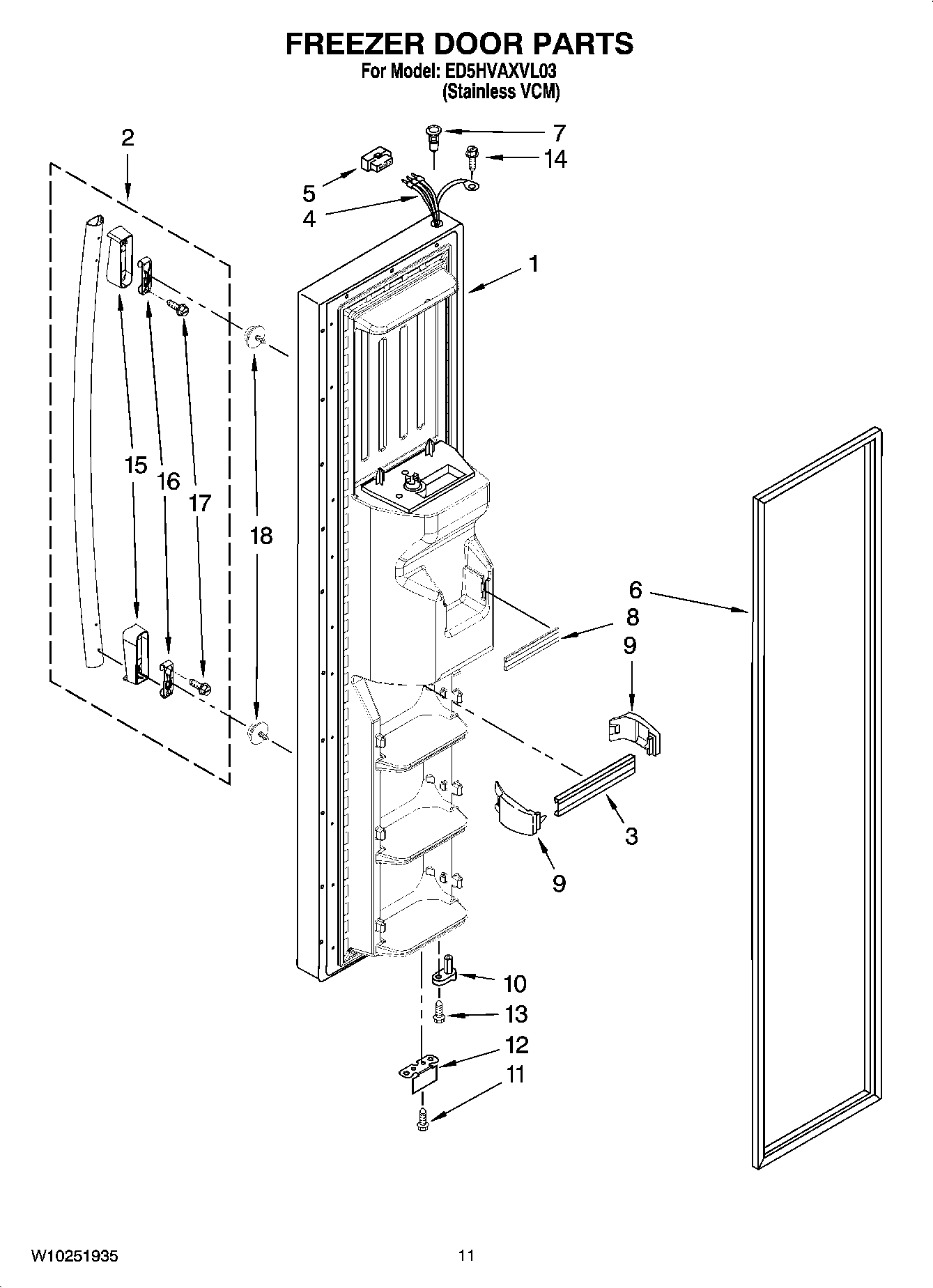

ED5HVAXVL03 07 – FREEZER DOOR PARTS

ED5HVAXVL03 07 – FREEZER DOOR PARTS

Written by

in

ED5HVAXVL03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS VCM)
2W10273555 Whirlpool Refrigerator Handle
32313199 Whirlpool Refrigerator Door Trim
42198619 Whirlpool Refrigerator Wire Harness
5WP2154473 Whirlpool Refrigerator Connector
62159082 Whirlpool Freezer Door Gasket Black
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10307490 Whirlpool Door Trim Assembly
9WP2195917K Whirlpool Refrigerator Endcap
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13WP3400012 Whirlpool Refrigerator Screw
14WP489128 Whirlpool Refrigerator Screw
15END CAP
16WP2255411 Whirlpool Refrigerator Clip
17WP8533988 Whirlpool Screw Fastener
18WPW10288153 Whirlpool Refrigerator Screw
