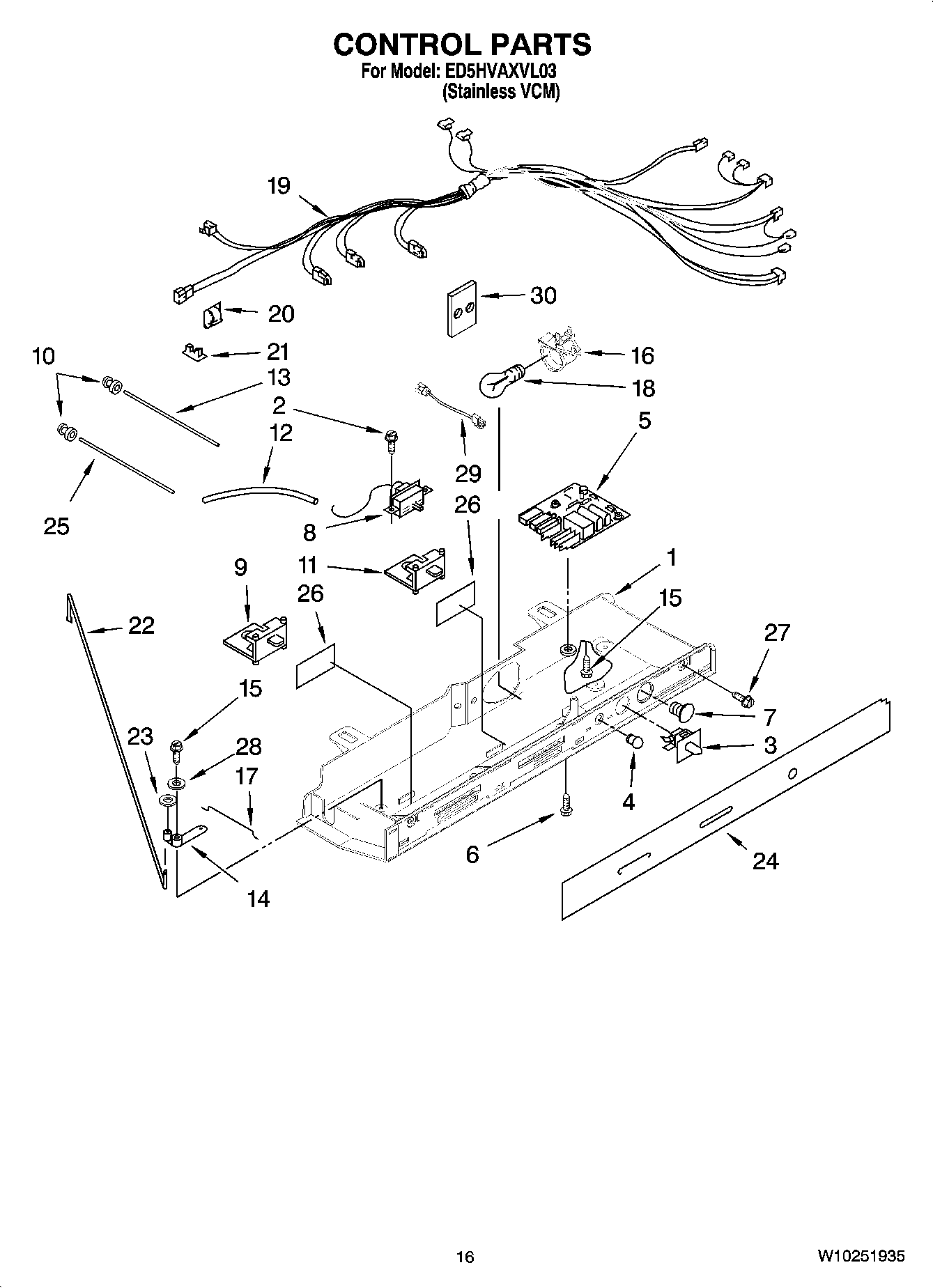

ED5HVAXVL03 10 – CONTROL PARTS

ED5HVAXVL03 10 – CONTROL PARTS

Written by

in

ED5HVAXVL03 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
22006254 Whirlpool Refrigerator Screw
3WP2149705 Whirlpool Refrigerator Door Switch
4COVER, LIGHT LENS
5WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
6489392 Whirlpool Refrigerator Screw
7940014 Whirlpool Refrigerator Primary Button Plug
8WP2315562 Whirlpool Refrigerator Thermostat
92181741 Whirlpool Refrigerator Slide
10Grommet, Light Fiber
112161466 Whirlpool Refrigerator Slide
12WP2196003 Whirlpool Refrigerator Bar Riser
13Fiber Optic
142161306 Whirlpool Refrigerator Arm Pivot
15627068 Whirlpool Refrigerator Screw
164387478 Whirlpool Refrigerator Light Socket
172161307 Whirlpool Refrigerator Rod
18Light Bulb
192311632 Whirlpool Refrigerator Wire Harness
20WP1115374 Whirlpool Refrigerator Clip
21CLIP, WIRING
222161308 Whirlpool Refrigerator Rod
23Fastener, Push-On
24Escutcheon, Control Box
25Light Bar (FC)
26Window
28489203 Whirlpool Refrigerator Washer
29W10853646 Whirlpool Indicator Light
302172931 Whirlpool Refrigerator Shield
