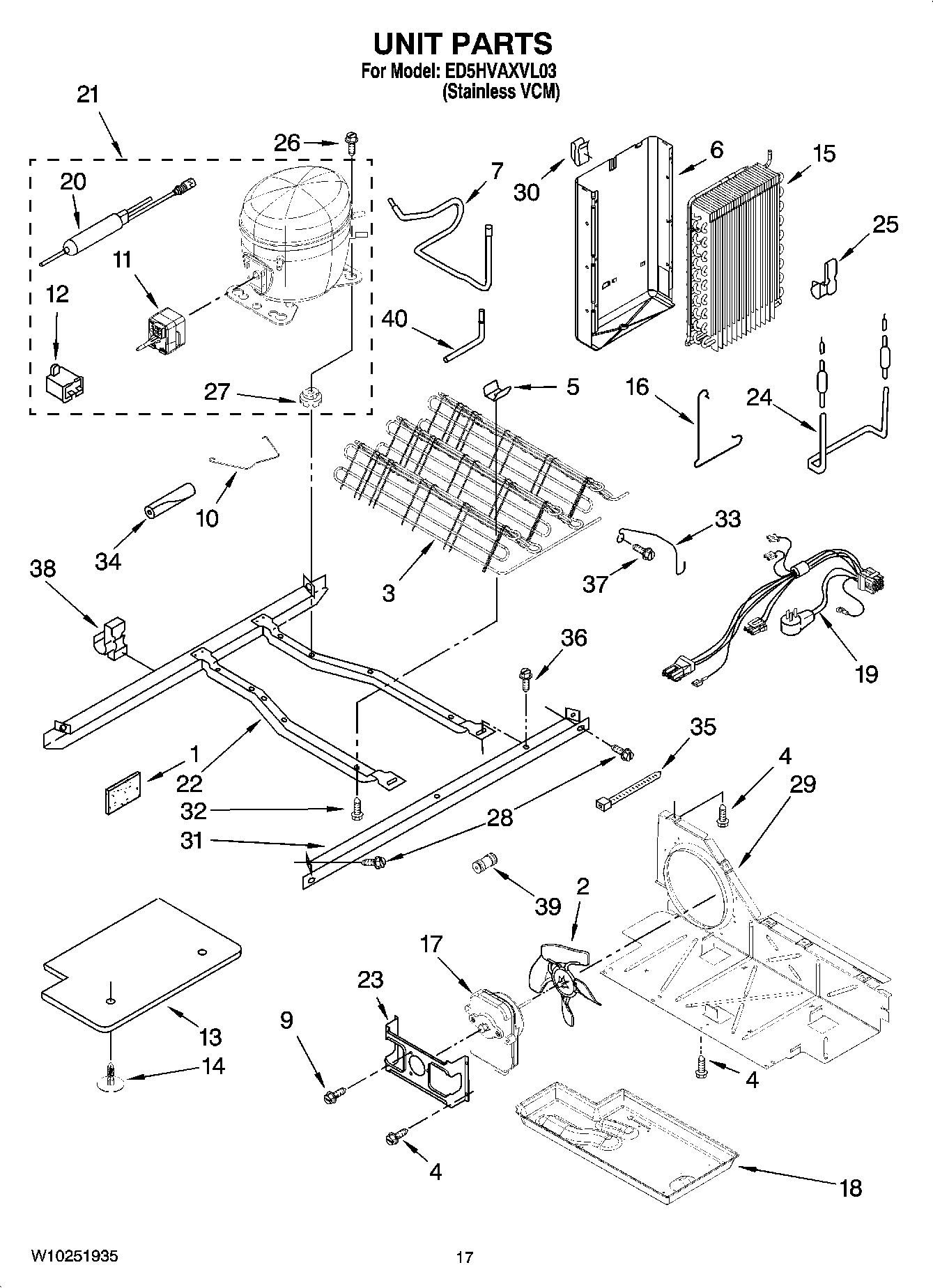

ED5HVAXVL03 11 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	Heat Shield
7	W10528574 Whirlpool Refrigerator Tube
9	WP8533993 Whirlpool Refrigerator Screw
10	W11661170 Whirlpool Clip
11	WPW10189190 Whirlpool Start Device
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Unit Cover, Bottom
14	489396 Whirlpool Refrigerator Clip
15	WP2188823 Whirlpool Refrigerator Evaporator
16	Clamp
17	WP2188874 Whirlpool Refrigerator Condenser Motor
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	WPW10309395 Whirlpool Refrigerator Wire Harness
20	WPW10143759 Whirlpool Dryer Filter
21	W10233961 Whirlpool Refrigerator Compressor
22	2304904 Whirlpool Frame Assembly
23	WP2181929 Whirlpool Refrigerator Bracket
24	WP2323198 Whirlpool Refrigerator Heater
25	W11623163 Whirlpool Refrigerator Clip
27	876811 Whirlpool Grommet
28	489340 Whirlpool Refrigerator Screw
29	W10896764 Whirlpool Refrigerator Air Baffle
30	Clip, Heat Shield
31	2305374 Whirlpool Refrigerator Unit Rail
32	W11544659 Whirlpool Refrigerator Screw
33	2260517 Whirlpool Fan Guard
34	SLEEVE
35	WPW10339879 Whirlpool Wire Tie
36	WP489427 Whirlpool Refrigerator Screw
37	WP489478 Whirlpool Refrigerator Screw
38	Clip, Wire & Tube
39	WPW10334458 Whirlpool Refrigerator Connector
40	Tube, Process
