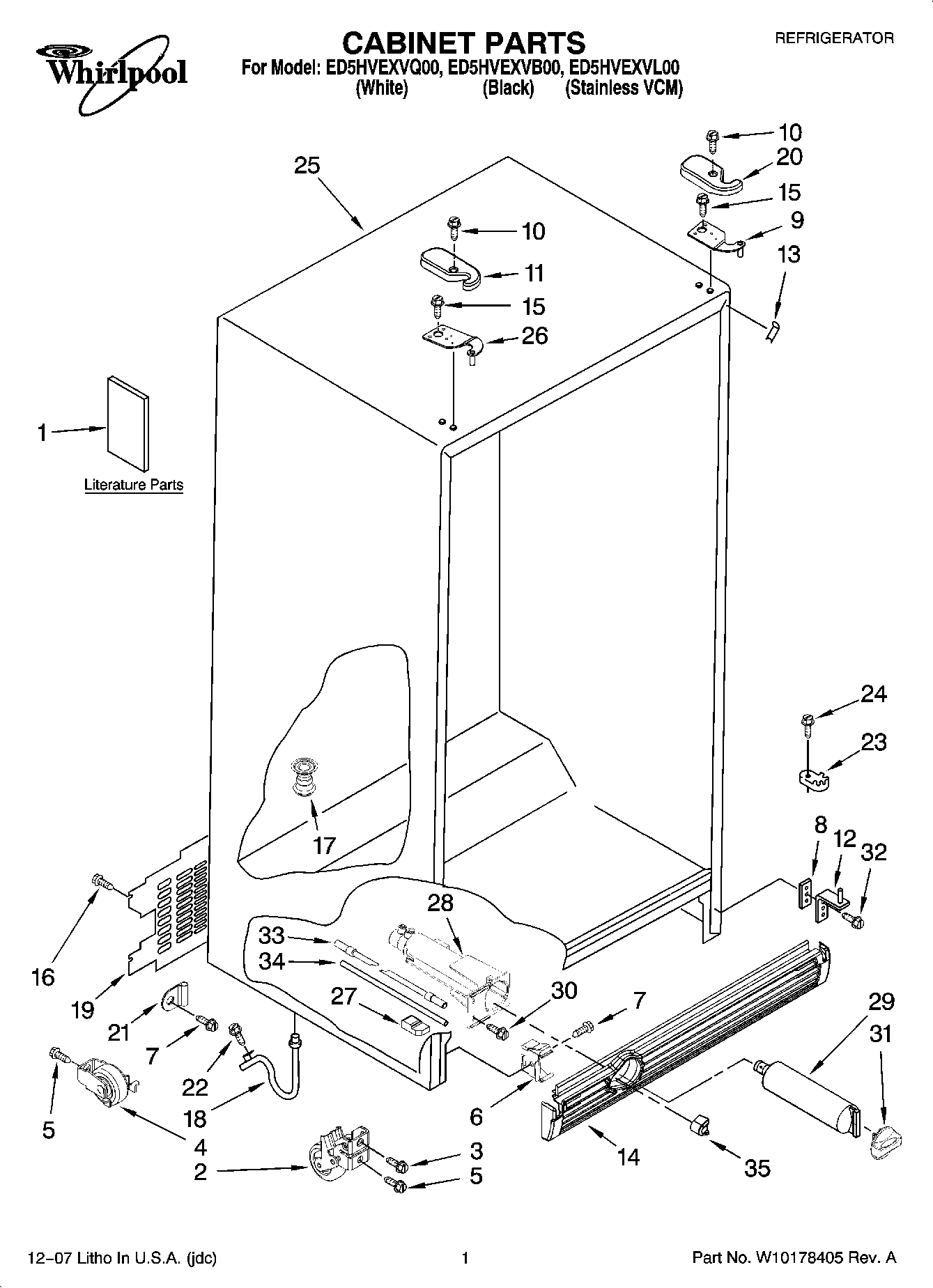

ED5HVEXVL00 01 – CABINET PARTS
Written by
in
ED5HVEXVL00 01 – CABINET PARTS
Products
Position
Product
1
Service & Wiring Sheet
1
Use & Care Guide
1
Modular Icemaker Service Sheet
1
Energy Guide
1
INSTRUCTION SHEET, DOOR REMOVAL
2
Front Roller (2)
3
W10850698 Whirlpool Refrigerator Screw
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
WP489427 Whirlpool Refrigerator Screw
6
WP2155013 Whirlpool Refrigerator Clip
7
WP489478 Whirlpool Refrigerator Screw
8
WP2181911 Whirlpool Refrigerator Shim
9
WP2203771 Whirlpool Refrigerator Door Hinge
10
WP8281227 Whirlpool Screw
11
WP2203407B Whirlpool Refrigerator Cover
11
WP2203407W Whirlpool Refrigerator Cover
12
8201707 Whirlpool Door Hinge
13
Filler, Wrapper (White)
13
Filler, Wrapper (Black)
14
WPW10311032 Whirlpool Refrigerator Grille
14
WPW10311033 Whirlpool Refrigerator Grille
16
WP489464 Whirlpool Refrigerator Screw
17
W11566763 Whirlpool Fitting
18
Extension Tube
19
WP2188755 Whirlpool Rear Panel
20
WP2203408B Whirlpool Refrigerator Cover
20
WP2203408W Whirlpool Refrigerator Cover
21
549193 Whirlpool Refrigerator Power Clamp
23
WPW10329686 Whirlpool Door Cam Black
24
WP489483 Whirlpool Screw
25
Cabinet, (Not A Serviceable Part)
26
WP2203770 Whirlpool Refrigerator Door Hinge
27
Block, Housing Support
28
WPW10121138 Whirlpool Refrigerator Water Filter Housing
29
EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30
WP489500 Whirlpool Refrigerator Screw
31
WP2260518B Whirlpool Water Filter Cap
31
WP2260518W Whirlpool Refrigerator Filter Cap
32
WP489497 Whirlpool Screw
33
WPW10350006 Whirlpool Refrigerator Water Tube
34
8201597 Whirlpool Inlet Water Fill Tube Kit Filter
35
WP2260503B Whirlpool Refrigerator Button
35
2260503W Whirlpool Refrigerator Button
←
