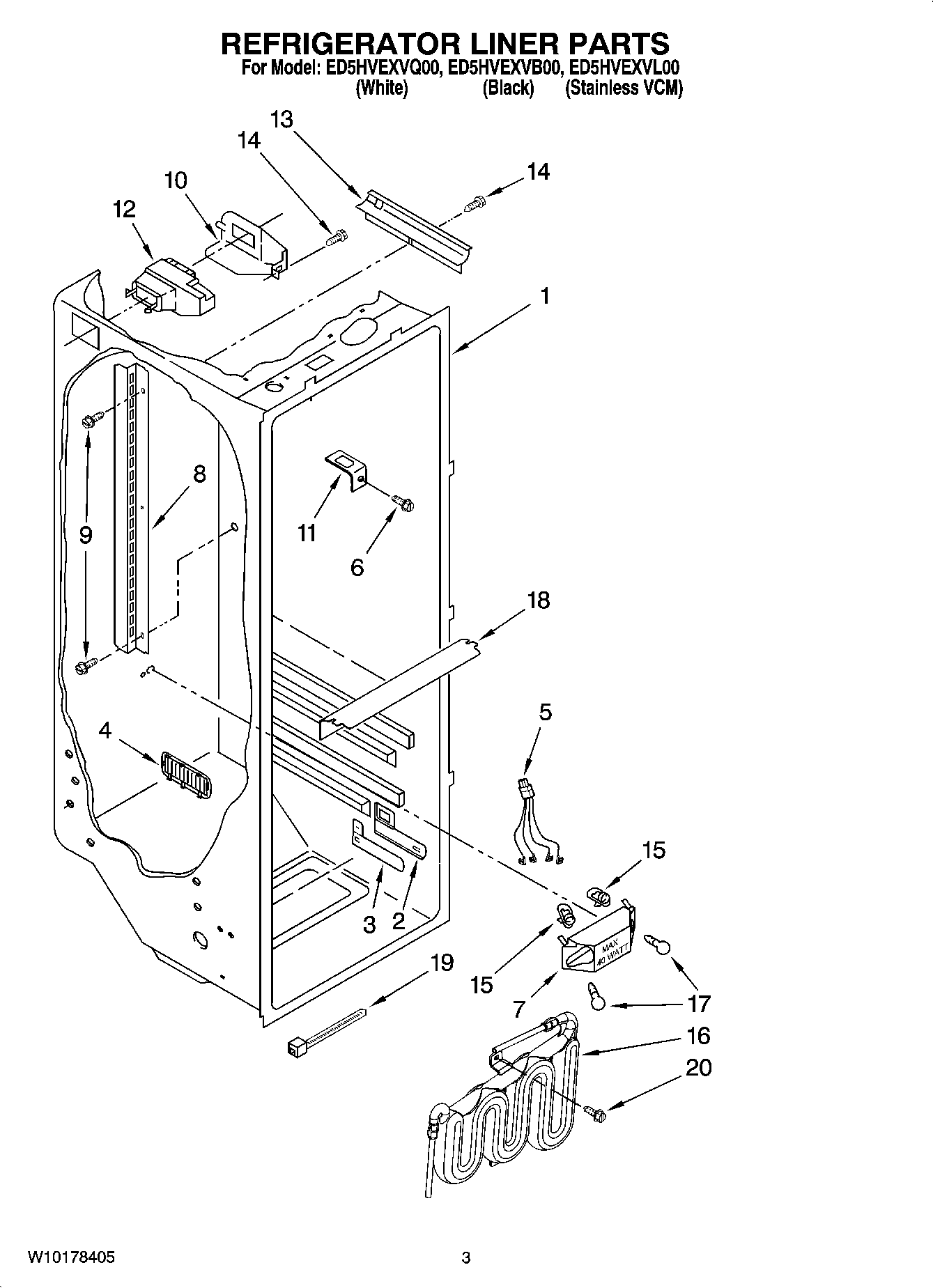

ED5HVEXVL00 02 – REFRIGERATOR LINER PARTS

ED5HVEXVL00 02 – REFRIGERATOR LINER PARTS

Written by

in

ED5HVEXVL00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52311637 Whirlpool Refrigerator Wire Harness
6WP488488 Whirlpool Refrigerator Screw
7Bracket, Dual Crisper Light
8Shelf Ladder
9WP489478 Whirlpool Refrigerator Screw
102152019 Whirlpool Refrigerator Cover
11WP2256085 Whirlpool Refrigerator Retainer
12WPW10151374 Whirlpool Refrigerator Diffuser
132150331 Whirlpool Refrigerator Wire Cover
14W10759522 Whirlpool Screw
154387478 Whirlpool Refrigerator Light Socket
16RESERVOIR
17RANGE ONLY 40W 120V APPL BULB
18Light Lens
19WPW10339879 Whirlpool Wire Tie
20Screw (2)
