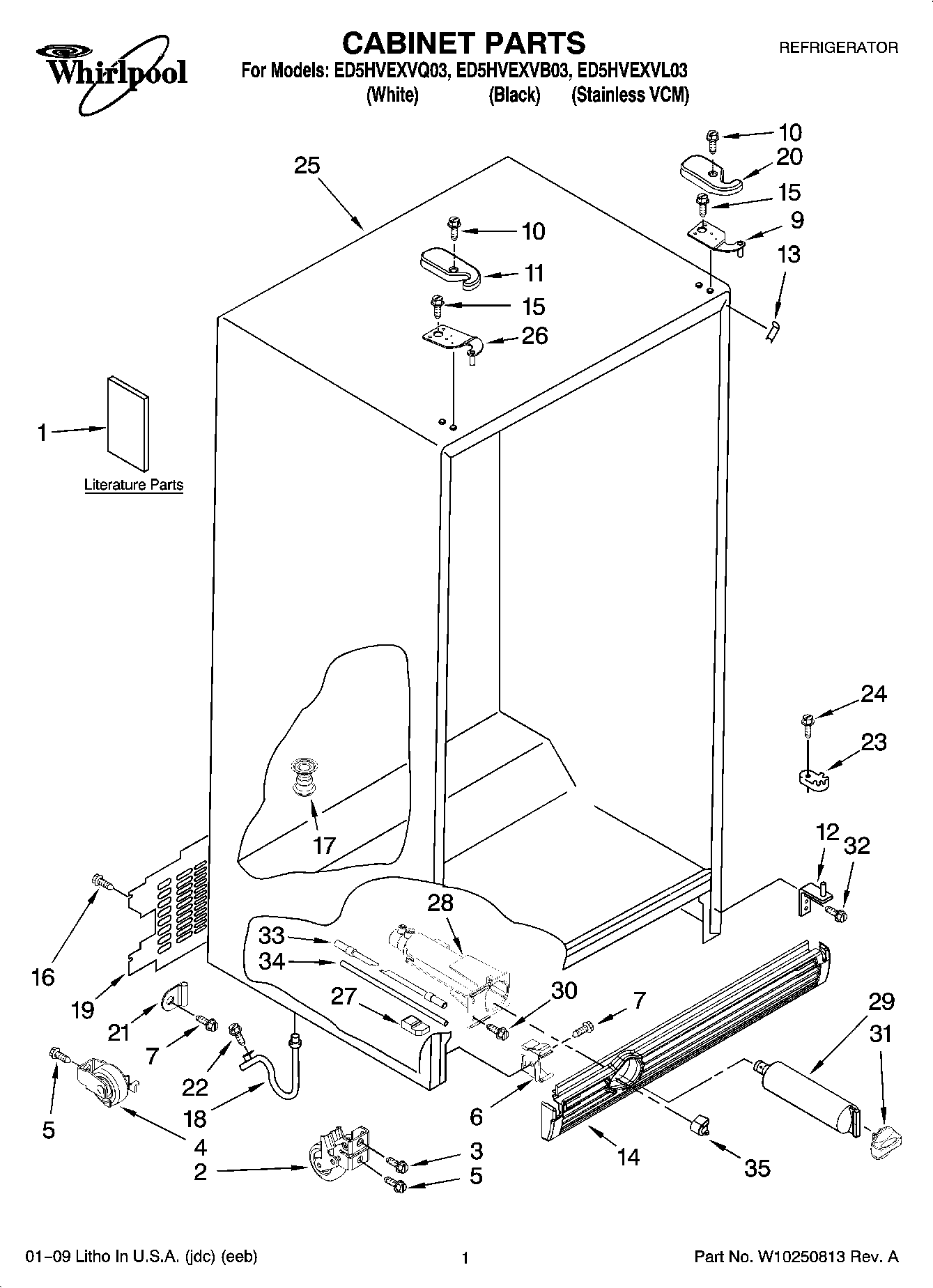

ED5HVEXVQ03 01 – CABINET PARTS

Products

Position	Product
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	WP2203407W Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
12	W10138965 Whirlpool Refrigerator Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
14	WPW10311033 Whirlpool Refrigerator Grille
14	WPW10311032 Whirlpool Refrigerator Grille
15	WP489497 Whirlpool Screw
16	WP489464 Whirlpool Refrigerator Screw
17	W11566763 Whirlpool Fitting
18	W11512417 Whirlpool Drain Connector
19	WP2188755 Whirlpool Rear Panel
20	WP2203408B Whirlpool Refrigerator Cover
20	WP2203408W Whirlpool Refrigerator Cover
21	549193 Whirlpool Refrigerator Power Clamp
23	WPW10329686 Whirlpool Door Cam Black
24	WP489483 Whirlpool Screw
25	Cabinet, (Not A Serviceable Part)
26	WP2203770 Whirlpool Refrigerator Door Hinge
27	Block, Housing Support
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP489500 Whirlpool Refrigerator Screw
31	WP2260518B Whirlpool Water Filter Cap
31	WP2260518W Whirlpool Refrigerator Filter Cap
33	WPW10350006 Whirlpool Refrigerator Water Tube
34	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
35	WP2260503B Whirlpool Refrigerator Button
35	2260503W Whirlpool Refrigerator Button
