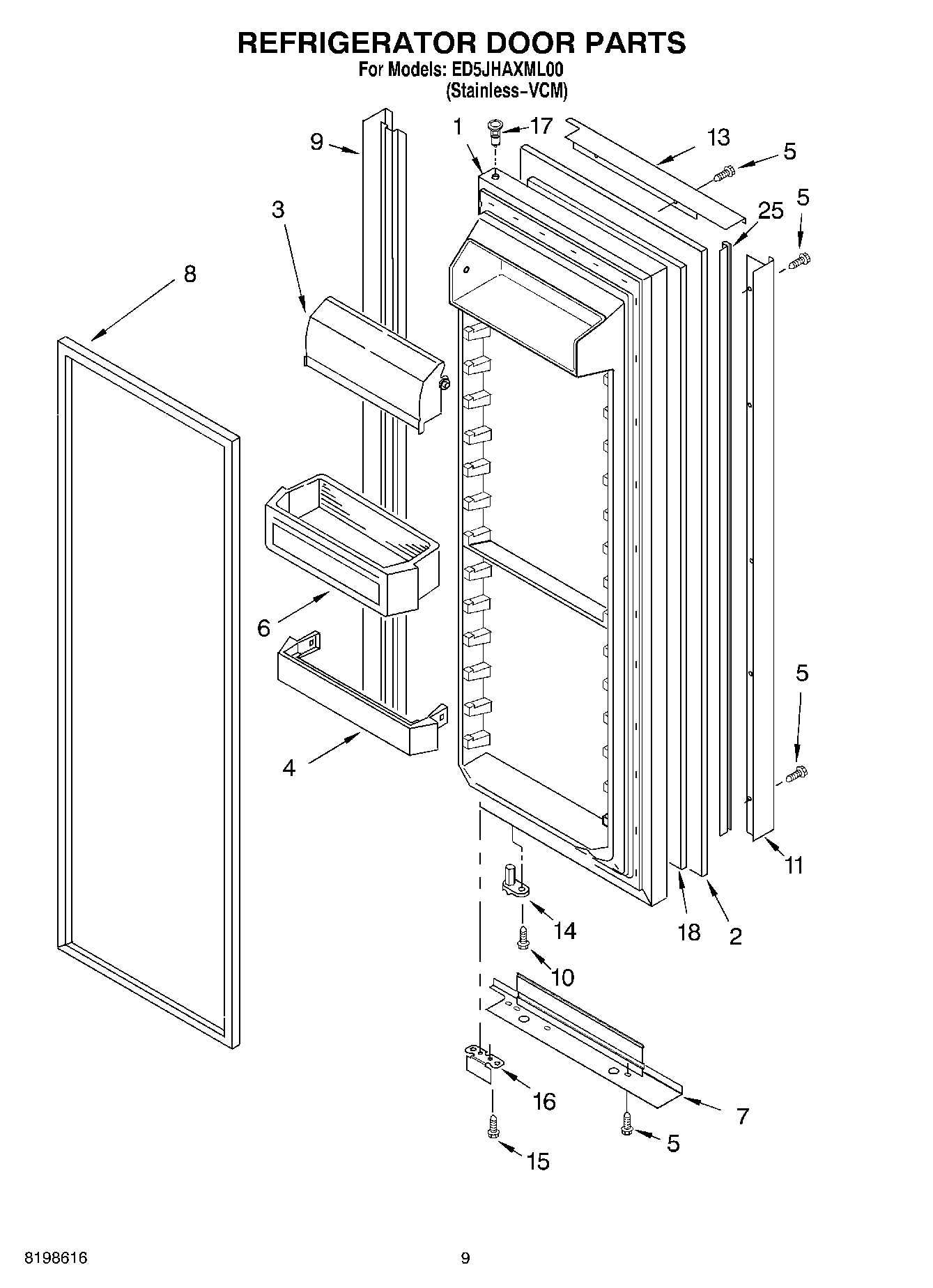

ED5JHAXML00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
2	Panel, Door (Stainless-VCM)
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Trim, Door Bottom (Stainless Steel)
8	2159083 Whirlpool Gasket Door
9	Trim, Hinge Side (Stainless Steel)
10	WP3400012 Whirlpool Refrigerator Screw
11	Handle (Stainless Steel)
13	Trim, Door Top (Stainless Steel)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
17	WP2182181 Whirlpool Refrigerator Thimble
18	Filler Board
