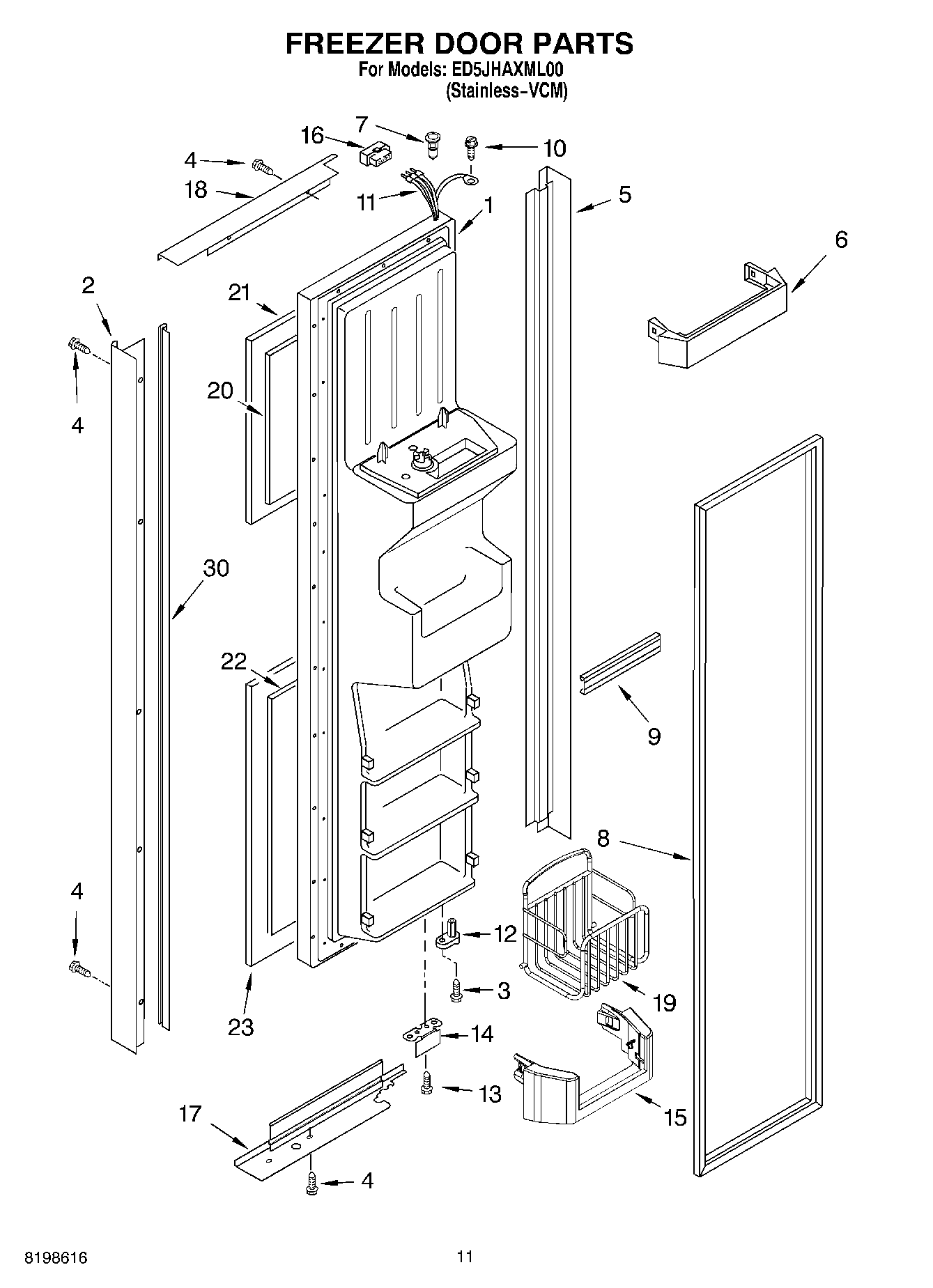

ED5JHAXML00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
3	WP3400012 Whirlpool Refrigerator Screw
4	Screw
5	Trim, Hinge Side (Stainless Steel)
6	WP2171157 Whirlpool Shelf Trim
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2198619 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
15	TRIVET, TILT-OUT
16	WP2154473 Whirlpool Refrigerator Connector
17	Trim, Door Bottom (Stainless Steel)
18	Trim, Door Top (Stainless Steel)
19	Basket, Tilt Out
20	Filler, Board Upper
21	Panel, Upper Door (Stainless-VCM)
22	Filler, Board Lower
23	Panel, Lower Door (Stainless-VCM)
