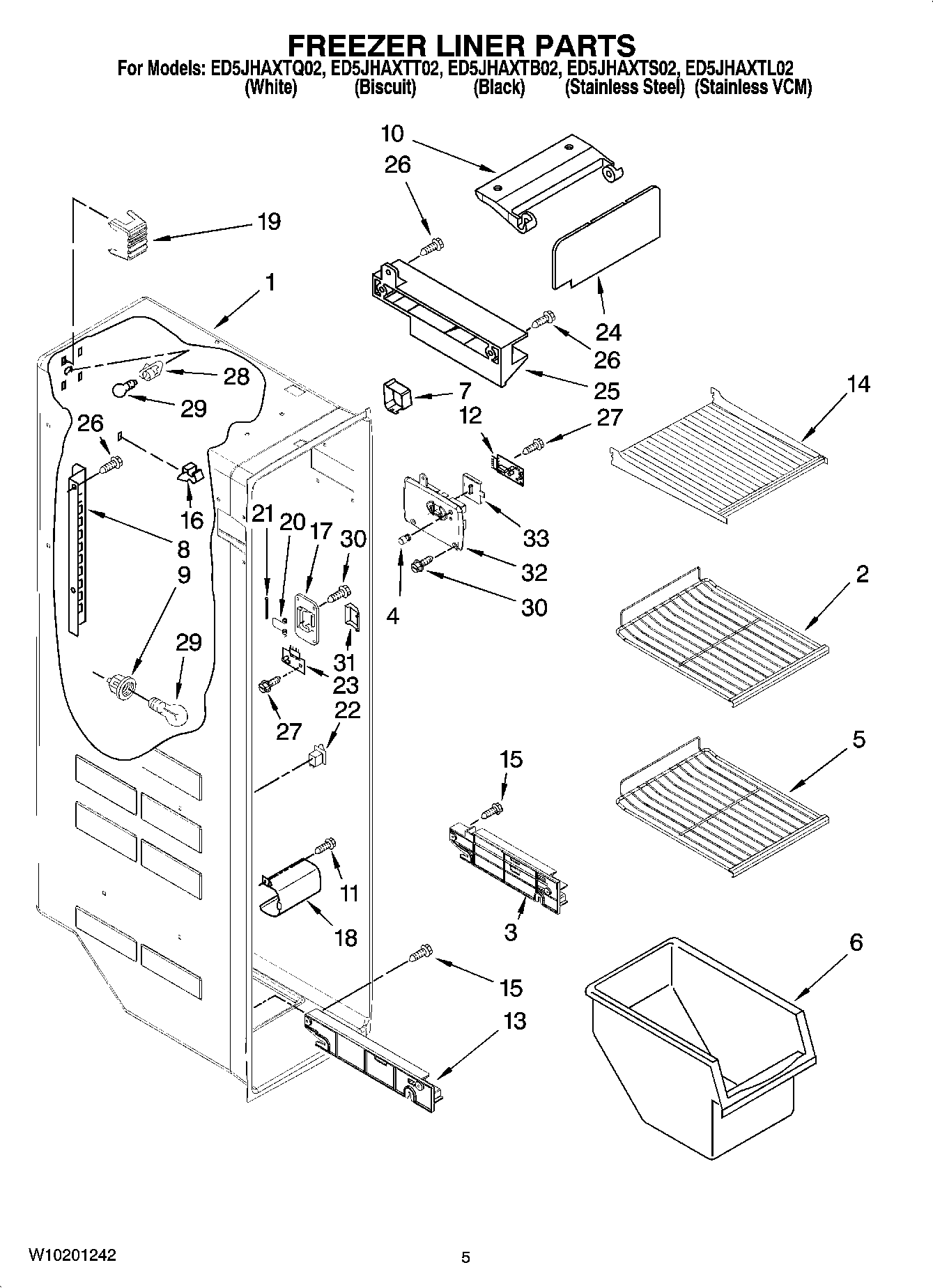

ED5JHAXTB02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Shelf, Slide Out Upper
3	2301291 Whirlpool Refrigerator Track
3	2301292 Whirlpool Refrigerator Track
4	WP2198643 Whirlpool Refrigerator Lens
5	WPW10317556 Whirlpool Refrigerator Wire Shelf
6	WP2182971 Whirlpool Refrigerator Freezer Bin
7	2303234 Whirlpool Refrigerator Shield
8	Ladder (Right Side)
8	Ladder (Left Side)
9	SOCKET
10	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
11	W10142289 Whirlpool Air Conditioner Screw
13	Shelf Track (Right Side)
13	Shelf Track (Left Side)
14	Shelf (2)
15	W10759522 Whirlpool Screw
16	2215823 Whirlpool Refrigerator Clip
17	WP2198587 Whirlpool Refrigerator Cover
18	Light Lens
19	Light Shield
20	WP2198635 Whirlpool Refrigerator Spring
21	WP2198634 Whirlpool Door Pin
22	W11457217 Whirlpool Refrigerator Rocker Switch Combination
23	W10757851-includeCORE Whirlpool Electronic Control+Core
24	WP2255720 Whirlpool Refrigerator Ice Maker Door
25	Slide, Ice Maker
26	WP489478 Whirlpool Refrigerator Screw
27	2006254 Whirlpool Refrigerator Screw
28	4387478 Whirlpool Refrigerator Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WPW10142283 Whirlpool Refrigerator Screw
31	WP2198633 Whirlpool Refrigerator Flipper
32	Cover, Receiver
33	2315398 Whirlpool Refrigerator Slide
