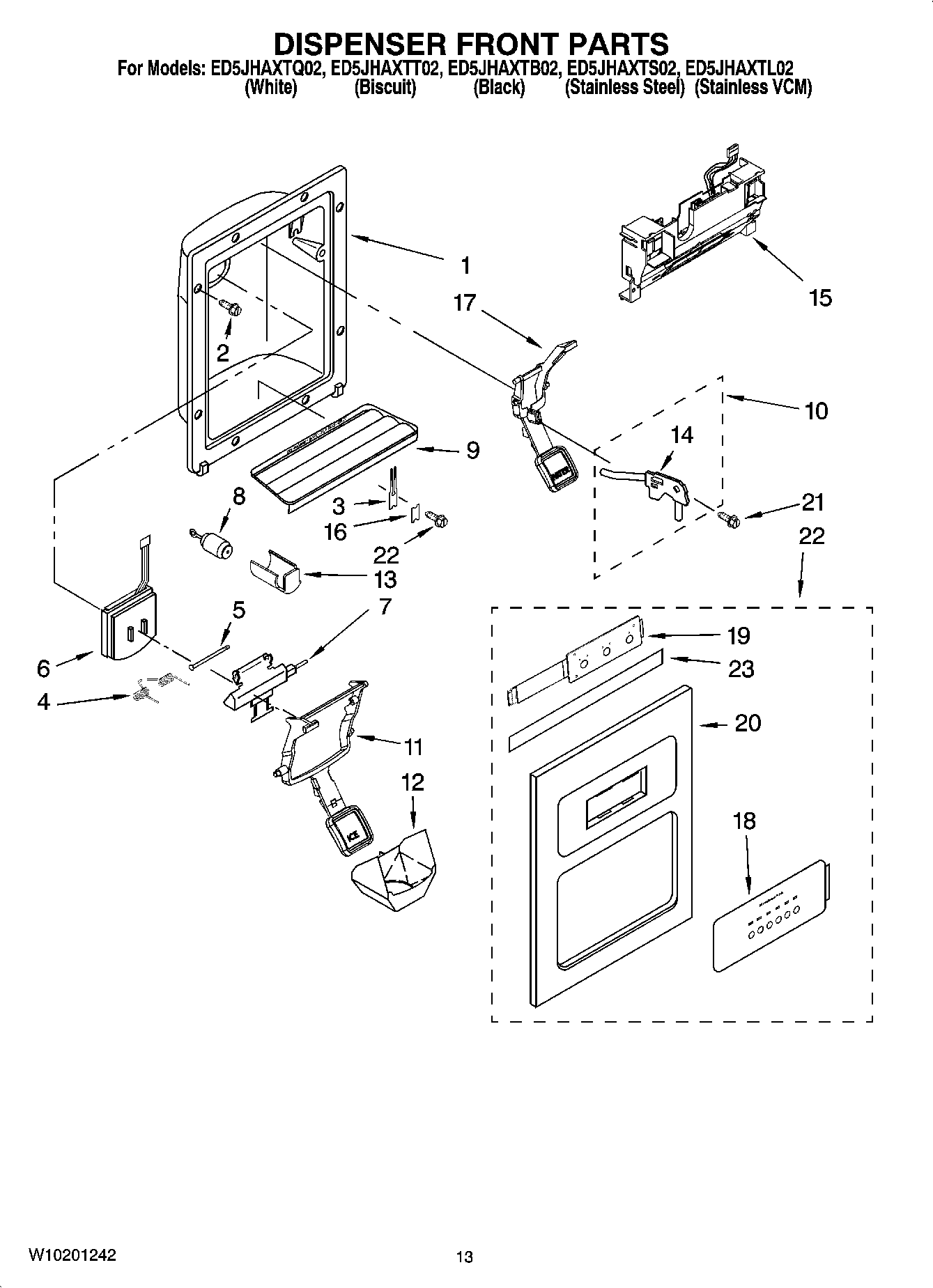

ED5JHAXTB02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670B Whirlpool Dispenser Tray
9	WP2206670T Whirlpool Refrigerator Grille
9	WP2206670W Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Biscuit)
11	WP2255431W Whirlpool Refrigerator Dispenser Arm
11	WP2255431B Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Sleeve, Delay Mechanism
14	WP2304673 Whirlpool Refrigerator Bracket
15	Bracket, Control
16	WP2195051 Whirlpool Refrigerator Clip
17	WP2255432T Whirlpool Refrigerator Dispenser Arm
17	WP2255432W Whirlpool Refrigerator Dispenser Arm
17	WP2255432B Whirlpool Refrigerator Dispenser Arm
18	Overlay, Front Cover (Not Available Order 22)
19	LED Display (Not Available, Order 22)
20	Front Cover, Housing (Not Available, Order 22)
21	WP3400906 Whirlpool Refrigerator Screw
22	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
22	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)
22	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
23	2305571 Whirlpool Gasket Assembly
