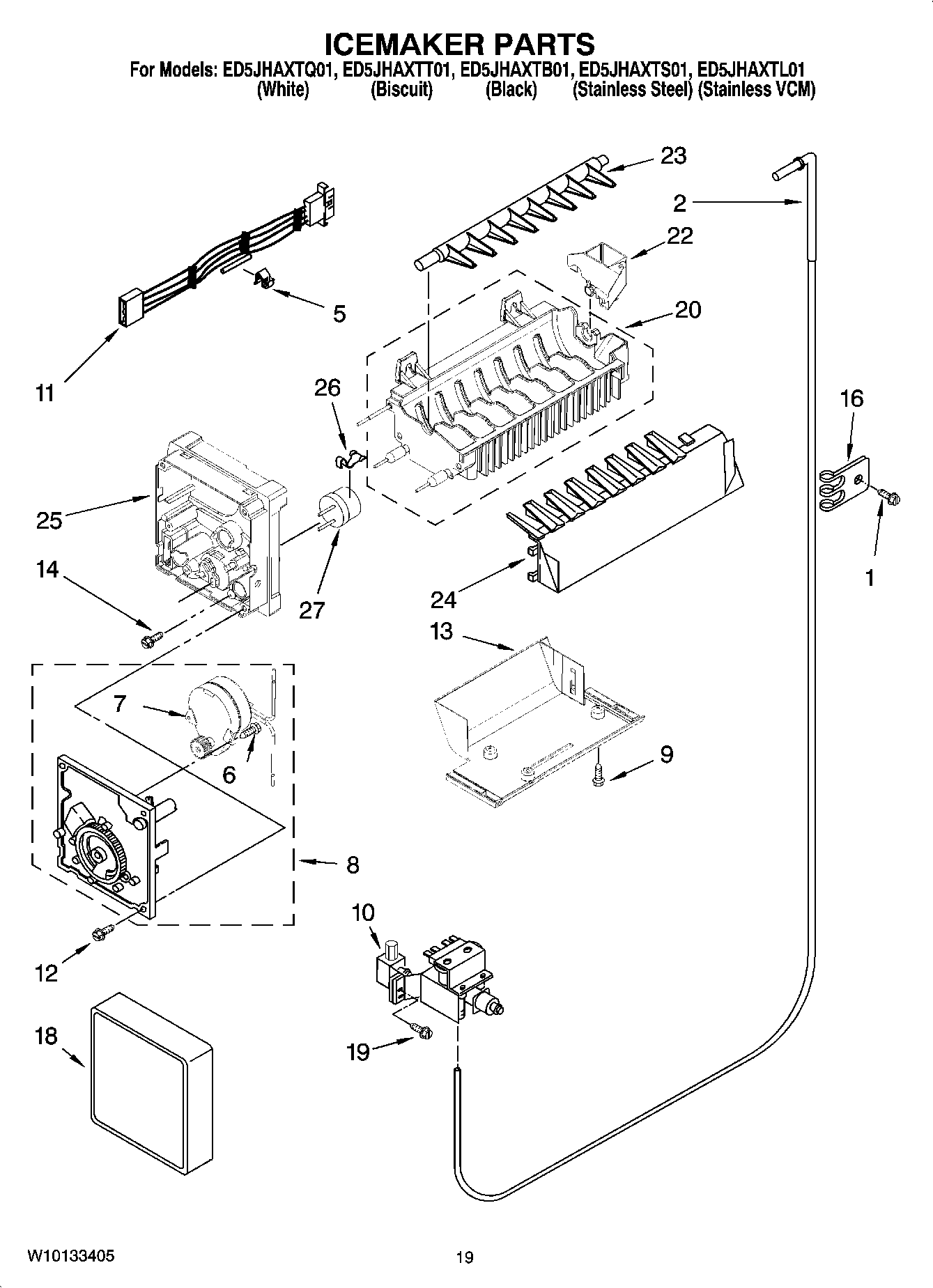

ED5JHAXTL01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED5JHAXTL01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED5JHAXTL01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI35658A2
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
4210463RW Whirlpool Refrigerator Coil Brush
WPL ARI35657A1
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI35659A9
2WP2256096 Whirlpool Refrigerator Fitting
5WP628379 Whirlpool Refrigerator Clip
6489136 Whirlpool Refrigerator Screw
7W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
88201515 Whirlpool Refrigerator Motor and Gear Module Kit
9WP489478 Whirlpool Refrigerator Screw
10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11WP2187467 Whirlpool Refrigerator Wire Harness
12WP681249 Whirlpool Screw Assembly
13BRACKET, ICEMAKER MOUNTING
148533917 Whirlpool Refrigerator Screw
16WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10297244 Whirlpool Refrigerator Arm Strip
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
1002198597 Whirlpool Refrigerator Ice Maker
