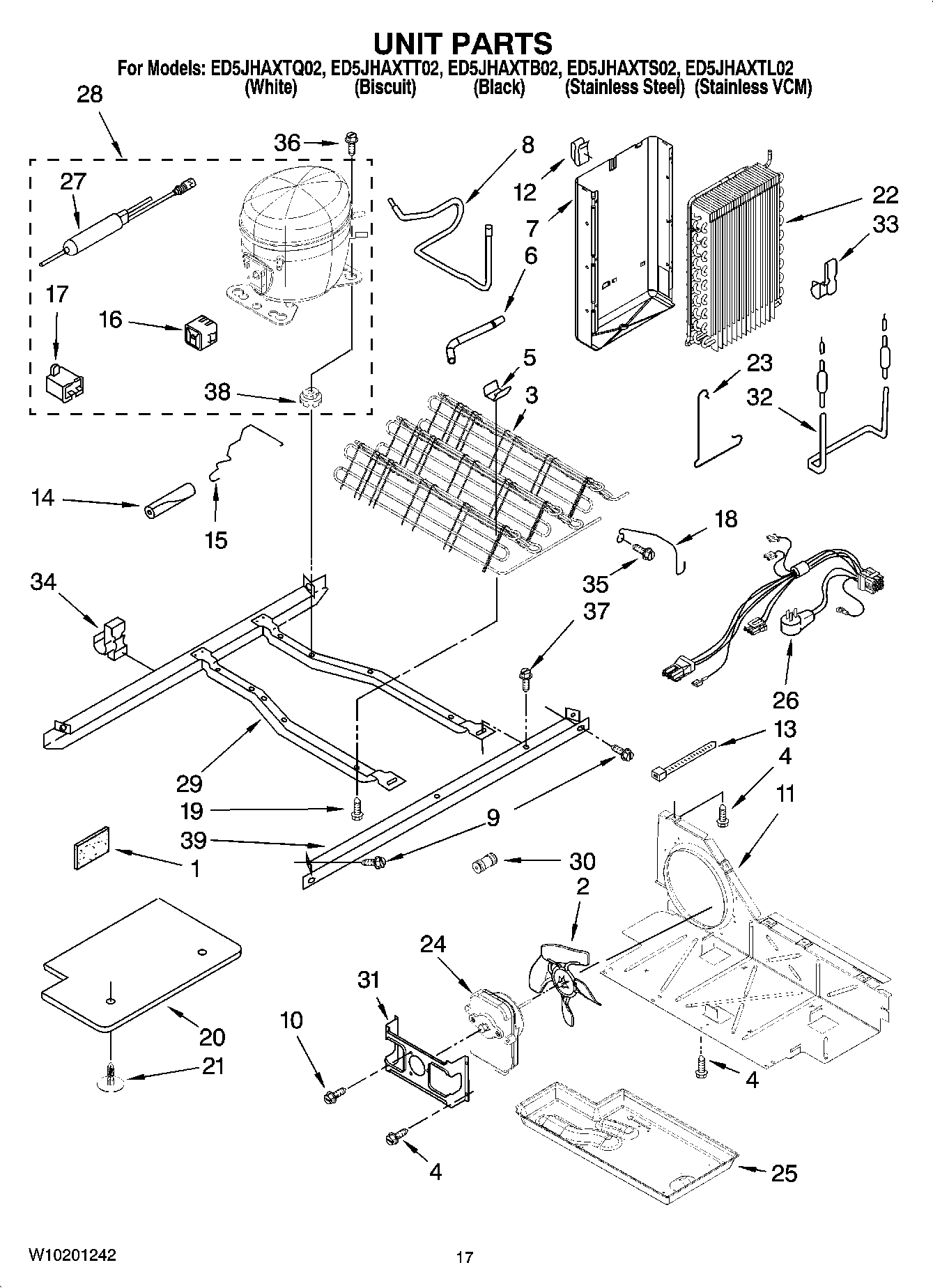

ED5JHAXTL02 11 – UNIT PARTSadmin2025-04-26T10:40:05+00:00ED5JHAXTL02 11 – UNIT PARTS ProductsPositionProduct978026 Whirlpool Refrigerator Primary ValveREFRIGERANT CHARGE 5.0 oz. (R-134A)VALVE, ACCESS (1/2``)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveFollowing Parts Not Illustrated and Optional Parts Not IncludedVALVE, ACCESS (5/8``)1W11553819 Whirlpool Refrigerator Insulation2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip6W10858105 Whirlpool Refrigerator Tube7Heat Shield And Drain Pan8WP2205765 Whirlpool Refrigerator Tube9489340 Whirlpool Refrigerator Screw10WP8533993 Whirlpool Refrigerator Screw11W10896764 Whirlpool Refrigerator Air Baffle12Clip, Heat Shield13WPW10339879 Whirlpool Wire Tie14SLEEVE152223314 Whirlpool Refrigerator Clip16WP2304885 Whirlpool Refrigerator Start Device17WPW10662129 Whirlpool Refrigerator Run Capacitor182260517 Whirlpool Fan Guard19W11544659 Whirlpool Refrigerator Screw20Unit Cover, Bottom21489396 Whirlpool Refrigerator Clip22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Unit, Harness27WPW10143759 Whirlpool Dryer Filter28W10139460 Whirlpool Refrigerator Compressor292304904 Whirlpool Frame Assembly30WPW10334458 Whirlpool Refrigerator Connector31WP2181929 Whirlpool Refrigerator Bracket32WP2323198 Whirlpool Refrigerator Heater33W11623163 Whirlpool Refrigerator Clip34Clip, Wire & Tube35WP489478 Whirlpool Refrigerator Screw37WP489427 Whirlpool Refrigerator Screw38876811 Whirlpool Grommet38WP4387558 Whirlpool Refrigerator Compressor Grommet392305374 Whirlpool Refrigerator Unit Rail
