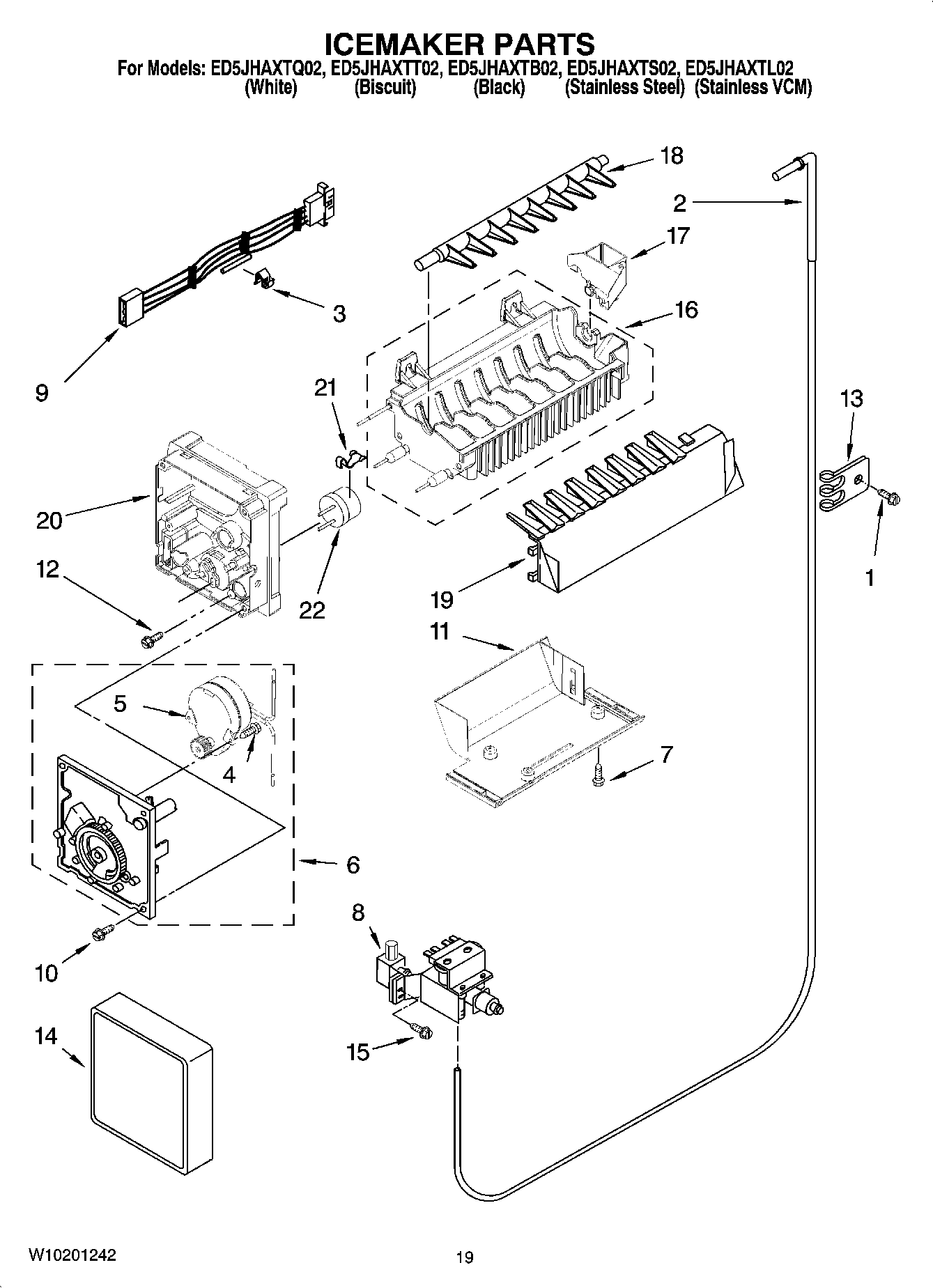

ED5JHAXTL02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED5JHAXTL02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED5JHAXTL02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
72032 Whirlpool Touch Up Paint Black
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI35671A6
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Torx Key
WPL ARI35670A7
WPL ARI35669A2
285006 Whirlpool Spray
212643 Whirlpool Refrigerator Permagum Sealer
4210463RW Whirlpool Refrigerator Coil Brush
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4489136 Whirlpool Refrigerator Screw
68201515 Whirlpool Refrigerator Motor and Gear Module Kit
7WP489478 Whirlpool Refrigerator Screw
8W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
9WP2187467 Whirlpool Refrigerator Wire Harness
10WP681249 Whirlpool Screw Assembly
11BRACKET, ICEMAKER MOUNTING
128533917 Whirlpool Refrigerator Screw
13WP488366 Whirlpool Refrigerator Clamp
14WPW10289690 Whirlpool Ice Maker Cover
15WPW10141625 Whirlpool Refrigerator Screw Assembly
16WPW10190929 Whirlpool Refrigerator Ice Maker Mold
17WPW10272168 Whirlpool Refrigerator Water Fill Cup
18WP627843 Whirlpool Refrigerator Ejector Arm
19W10297244 Whirlpool Refrigerator Arm Strip
20WP2195914 Whirlpool Refrigerator Ice Maker Housing
21WP2315522 Whirlpool Refrigerator Clip
22WP627985 Whirlpool Icemaker Cycling Thermostat
1002198597 Whirlpool Refrigerator Ice Maker
