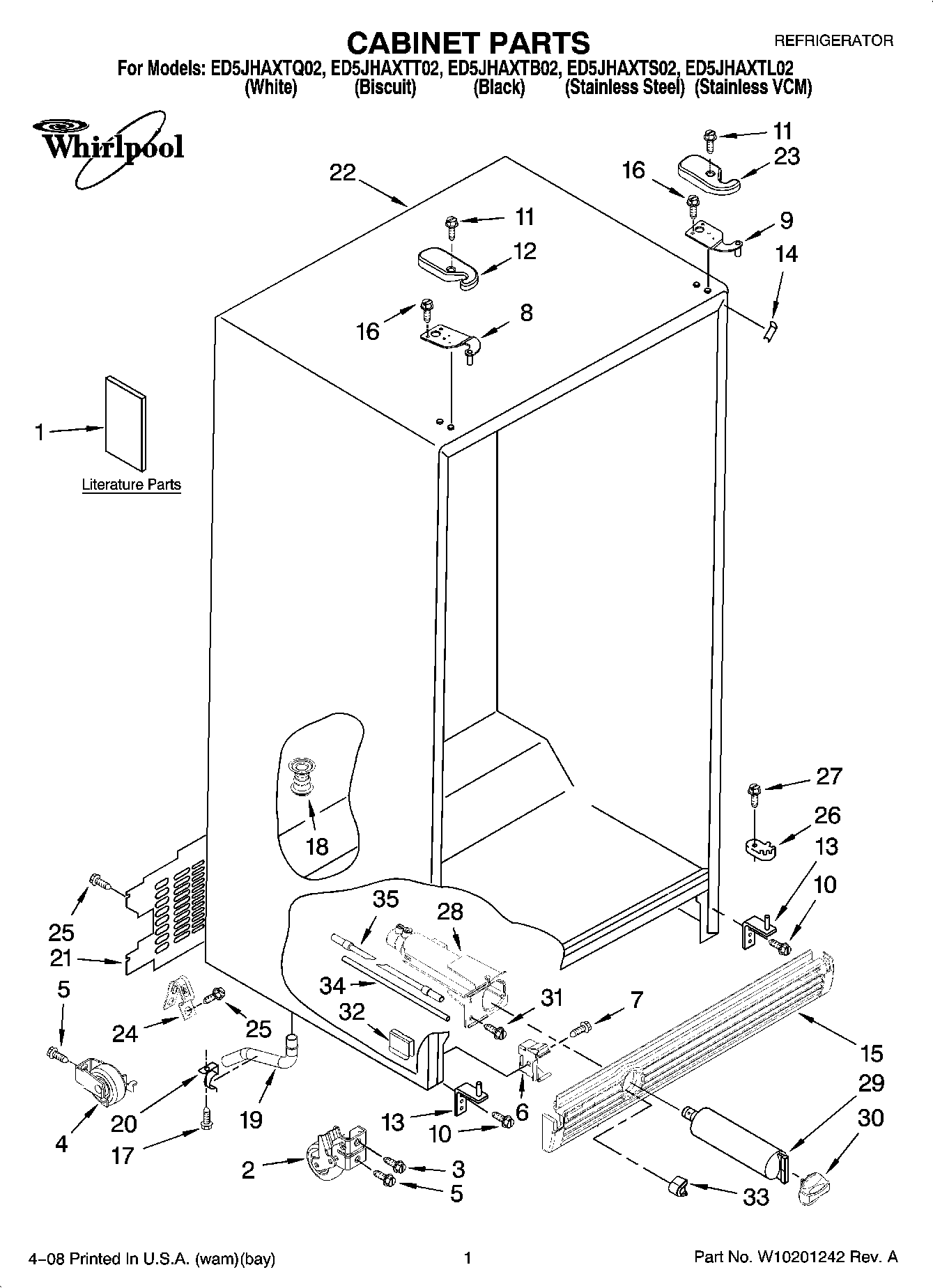

ED5JHAXTT02 01 – CABINET PARTSadmin2025-04-26T10:37:54+00:00ED5JHAXTT02 01 – CABINET PARTS ProductsPositionProduct1Service & Wiring Sheet1INSTRUCTION SHEET, DOOR REMOVAL1Modular Icemaker Service Sheet1Use & Care Guide1Energy Guide2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw8WP2203770 Whirlpool Refrigerator Door Hinge9WP2203771 Whirlpool Refrigerator Door Hinge10WP489497 Whirlpool Screw11WP8281227 Whirlpool Screw122203407T Whirlpool Refrigerator Cover12WP2203407B Whirlpool Refrigerator Cover12WP2203407W Whirlpool Refrigerator Cover13W10138965 Whirlpool Refrigerator Door Hinge14Filler, Wrapper (Black)14Filler, Wrapper (White)14Filler, Wrapper (Biscuit)15Grille (Biscuit)15WPW10311032 Whirlpool Refrigerator Grille15WPW10311033 Whirlpool Refrigerator Grille17WP489464 Whirlpool Refrigerator Screw18W11566763 Whirlpool Fitting19WP1108438 Whirlpool Refrigerator Extension20WP1108439 Whirlpool Refrigerator Clip21WP2188755 Whirlpool Rear Panel22Cabinet, (Not A Serviceable Part)23Hinge Cover (Biscuit)23WP2203408B Whirlpool Refrigerator Cover23WP2203408W Whirlpool Refrigerator Cover24549193 Whirlpool Refrigerator Power Clamp26WPW10329686 Whirlpool Door Cam Black27WP489483 Whirlpool Screw28WPW10121138 Whirlpool Refrigerator Water Filter Housing29FILTER 3-SINGLE TEAL30Cap, Water Filter (Biscuit)30WP2260518W Whirlpool Refrigerator Filter Cap30WP2260518B Whirlpool Water Filter Cap31WP489500 Whirlpool Refrigerator Screw32Block, Housing Support332260503W Whirlpool Refrigerator Button33WP2260503B Whirlpool Refrigerator Button34W11496481 Whirlpool Refrigerator Water Tube358201597 Whirlpool Inlet Water Fill Tube Kit Filter
