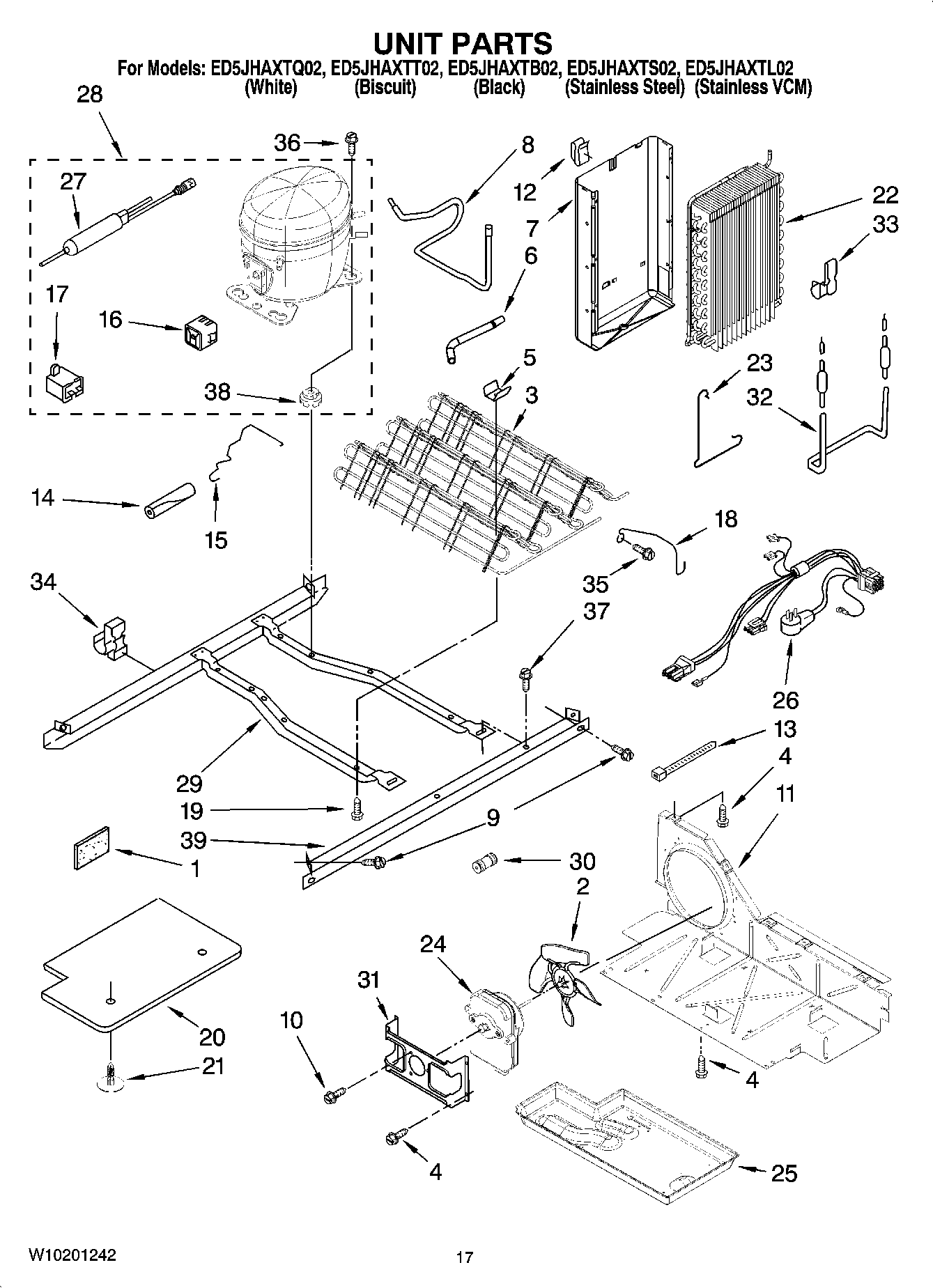

ED5JHAXTT02 11 – UNIT PARTS

ED5JHAXTT02 11 – UNIT PARTS

Written by

in

ED5JHAXTT02 11 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	W10858105 Whirlpool Refrigerator Tube
7	Heat Shield And Drain Pan
8	WP2205765 Whirlpool Refrigerator Tube
9	489340 Whirlpool Refrigerator Screw
10	WP8533993 Whirlpool Refrigerator Screw
11	W10896764 Whirlpool Refrigerator Air Baffle
12	Clip, Heat Shield
13	WPW10339879 Whirlpool Wire Tie
14	SLEEVE
15	2223314 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	2260517 Whirlpool Fan Guard
19	W11544659 Whirlpool Refrigerator Screw
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Unit, Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	2304904 Whirlpool Frame Assembly
30	WPW10334458 Whirlpool Refrigerator Connector
31	WP2181929 Whirlpool Refrigerator Bracket
32	WP2323198 Whirlpool Refrigerator Heater
33	W11623163 Whirlpool Refrigerator Clip
34	Clip, Wire & Tube
35	WP489478 Whirlpool Refrigerator Screw
37	WP489427 Whirlpool Refrigerator Screw
38	876811 Whirlpool Grommet
38	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	2305374 Whirlpool Refrigerator Unit Rail
