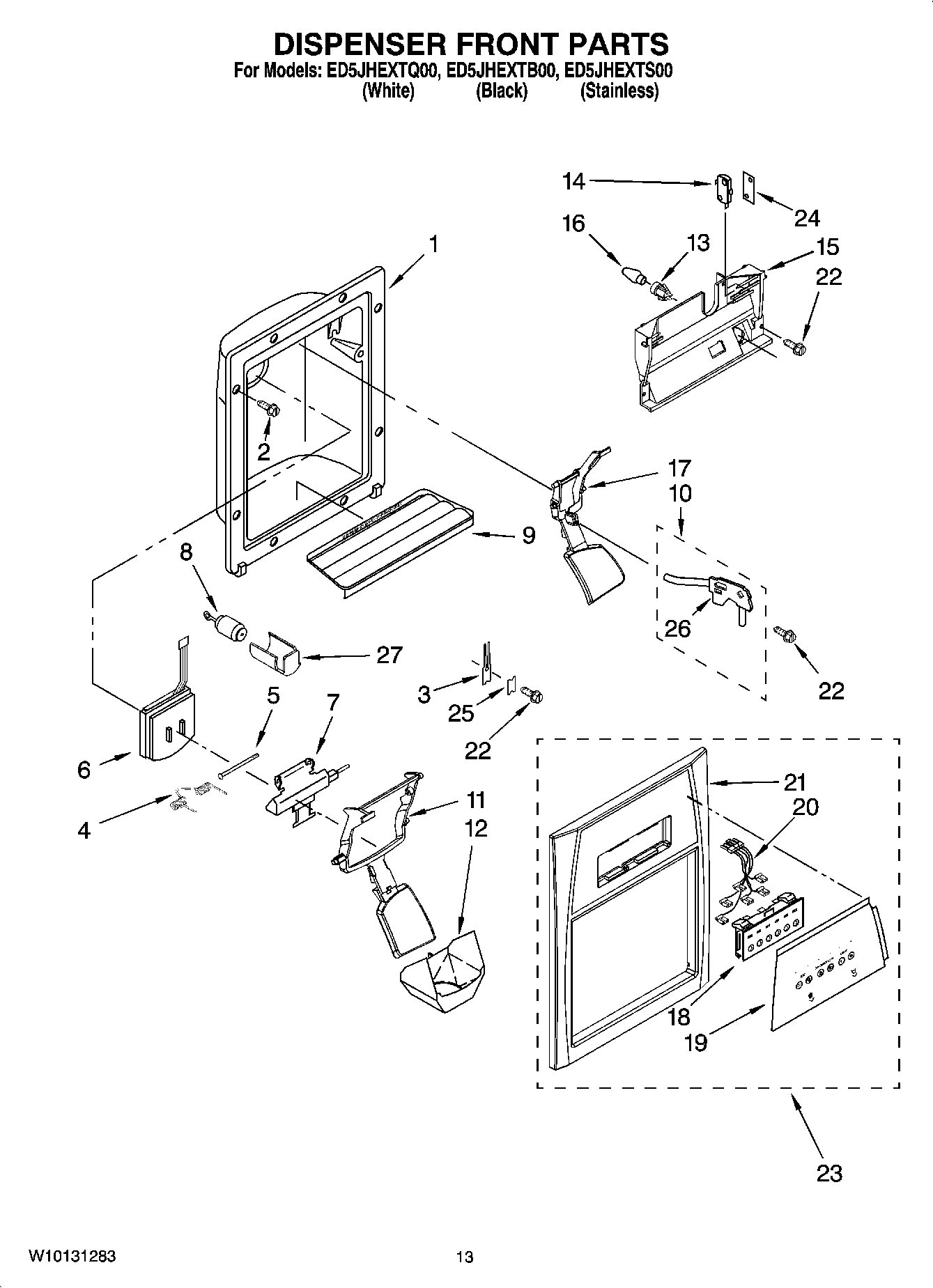

ED5JHEXTS00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	WP2255431W Whirlpool Refrigerator Dispenser Arm
11	WP2255431B Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	WP2255432B Whirlpool Refrigerator Dispenser Arm
17	WP2255432W Whirlpool Refrigerator Dispenser Arm
18	Switch Assembly (Included in 23)
19	Overlay, Front Cover (Not Available, Order 23)
20	Wire Assembly (Not Available, Order 23)
21	Front Cover, Housing (Not Available Order 23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
24	Spacer, Switch (2)
25	WP2195051 Whirlpool Refrigerator Clip
26	WP2304673 Whirlpool Refrigerator Bracket
27	Sleeve, Delay Mechanism
